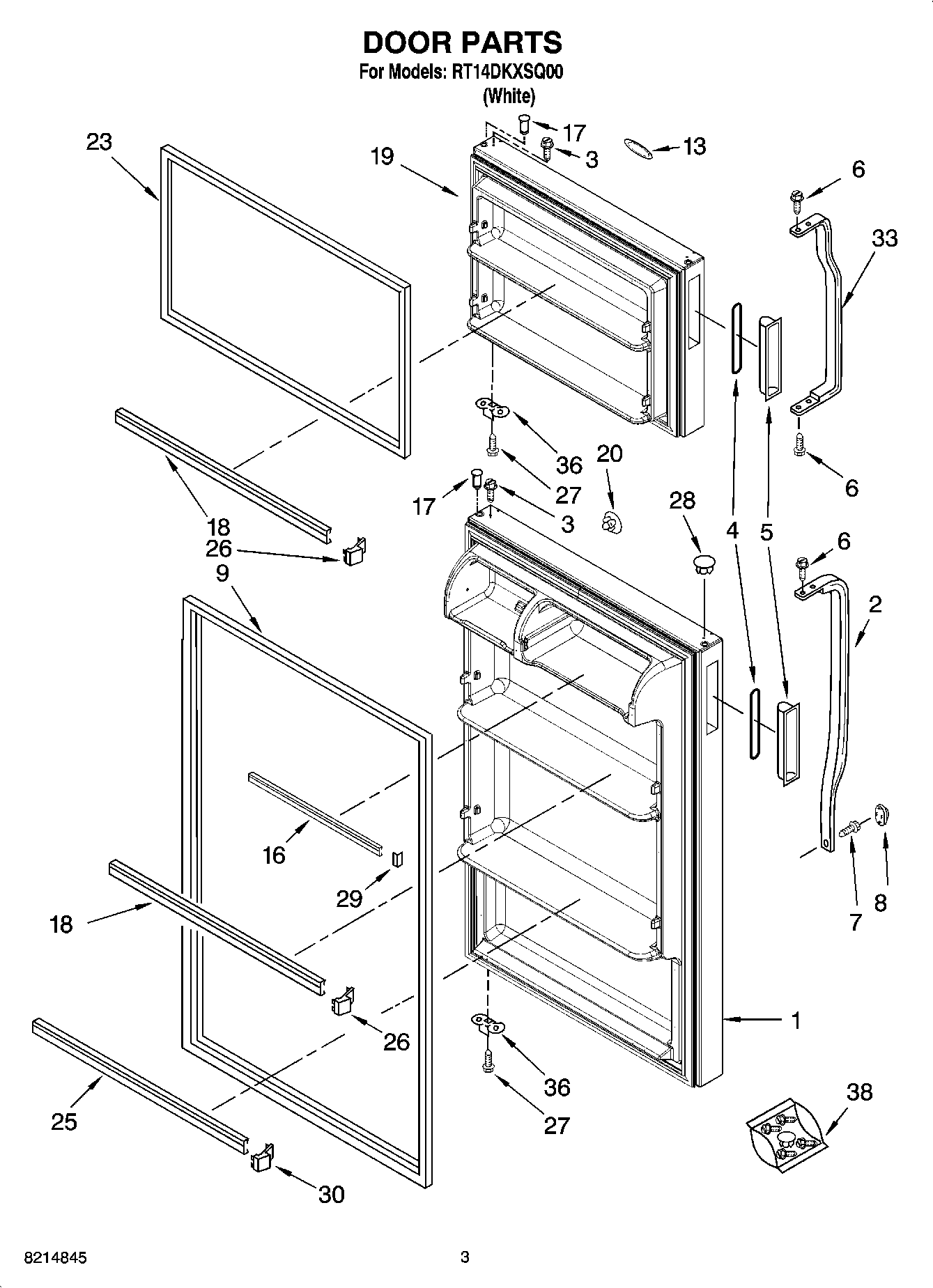

RT14DKXSQ00 02 – DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR INCLUDES (7 & 10) (WHITE)
2	HANDLE
3	WP8281206 Whirlpool Refrigerator Screw
4	Gasket, Handle
5	WP984493 Whirlpool Refrigerator Handle
6	WP489357 Whirlpool Recessed Screw
7	WP8281146 Whirlpool Screw
8	WP2202819W Whirlpool Refrigerator Cover
9	WP2319265T Whirlpool Refrigerator FIP Gasket
13	Nameplate (White)
16	W11129820 Whirlpool Refrigerator Door Trim
17	WP2183003 Whirlpool Thimble
18	WP2266727 Whirlpool Refrigerator Door Trim
19	FREEZER DOOR INCLUDES (10 & 14) (WHITE)
20	WP2189000 Whirlpool Refrigerator Handle Plug
23	WP2319263T Whirlpool Refrigerator FIP Gasket
25	WP2266738 Whirlpool Refrigerator Door Trim
26	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
27	WP488921 Whirlpool Refrigerator Screw
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29	ENDCAP-TRM
30	ENDCAP
33	HANDLE
36	Bracket, Door Stop
38	Hole Plug Kit (If Bow Handle is Removed) (White)
