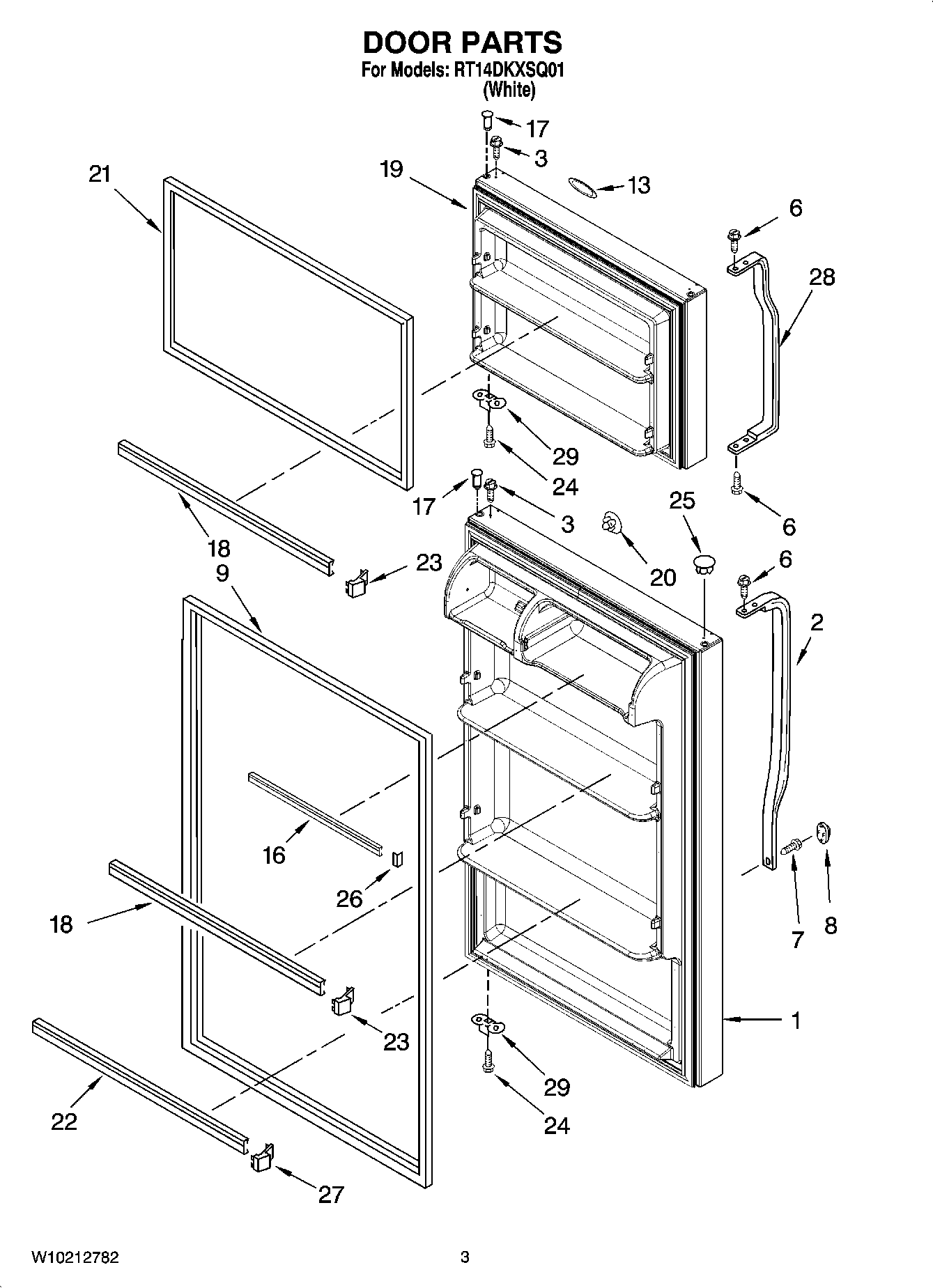

RT14DKXSQ01 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 9) (White)
2	HANDLE
3	WP8281206 Whirlpool Refrigerator Screw
6	WP489357 Whirlpool Recessed Screw
7	WP8281146 Whirlpool Screw
8	WP2202819W Whirlpool Refrigerator Cover
9	WP2319265T Whirlpool Refrigerator FIP Gasket
13	Nameplate (White)
16	W11129820 Whirlpool Refrigerator Door Trim
17	WP2183003 Whirlpool Thimble
18	WP2266727 Whirlpool Refrigerator Door Trim
19	Freezer Door (Includes Item 16) (White)
20	WP2189000 Whirlpool Refrigerator Handle Plug
21	WP2319263T Whirlpool Refrigerator FIP Gasket
22	WP2266738 Whirlpool Refrigerator Door Trim
23	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
24	WP488921 Whirlpool Refrigerator Screw
25	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
26	ENDCAP-TRM
27	ENDCAP
28	HANDLE
29	Bracket, Door Stop
