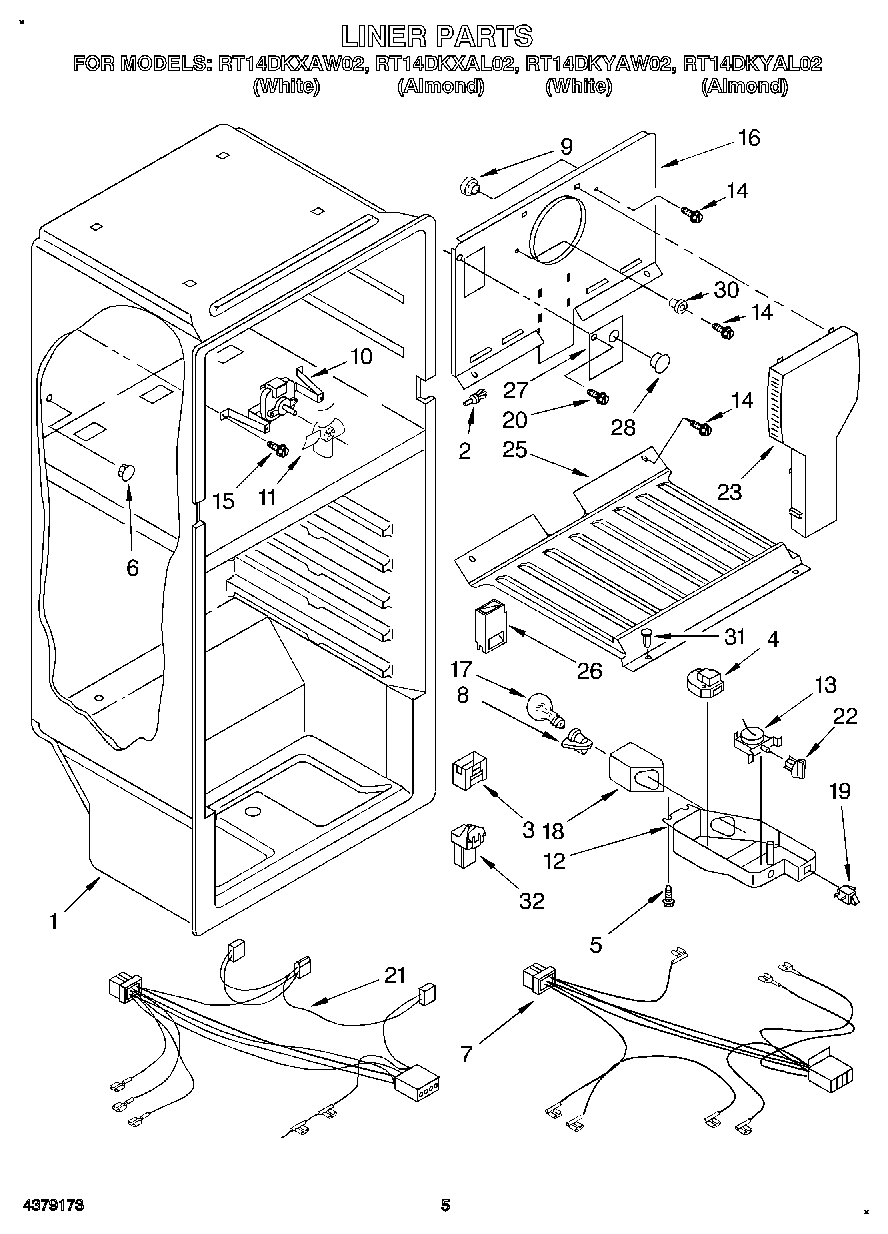

RT14DKYAL02 03 – LINER, LIT/OPTIONAL

RT14DKYAL02 03 – LINER, LIT/OPTIONAL

Written by

in

RT14DKYAL02 03 – LINER, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2163497
	1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
	Torx Key
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	WPL LIT2163325
	WPL LIT2169123
1	Liner (Not A Serviceable Part)
2	939962 Whirlpool Refrigerator Rivet
3	Diffuser-Air
4	WP2183400 Whirlpool Defrost Timer
5	WP489174 Whirlpool Refrigerator Screw
6	WP941839 Whirlpool Refrigerator Button Plug
7	2176927 Whirlpool Refrigerator Wire Harness
8	4387478 Whirlpool Refrigerator Light Socket
9	Grommet
10	Fan Motor & Bracket Assy.
11	Fan Blade
12	2215213 Whirlpool Refrigerator Control Box
13	Thermostat
14	WP488163 Whirlpool Refrigerator Screw
15	WP489478 Whirlpool Refrigerator Screw
16	Cover-Evaporator
17	W11679940 Whirlpool Refrigerator Light Bulb Assembly
18	W11034434 Whirlpool Refrigerator Light Lens
19	W11384469 Whirlpool Door Switch
20	WP488729 Whirlpool Refrigerator Door Screw
21	Wiring-Freezer
22	WP2202885 Whirlpool Refrigerator Thermal Knob
23	Air Tower
25	Freezer Floor
26	Air Diffuser
27	WP2217784 Whirlpool Refrigerator Cover
28	Hole Plug
30	Sleeve
31	WP489115 Whirlpool Refrigerator Rivet
32	WP505587 Whirlpool Refrigerator Sealer
32	WP72107 Whirlpool Touchup
32	799344 Whirlpool Refrigerator Paint
32	350930 Whirlpool White Spray Paint
32	72032 Whirlpool Touch Up Paint Black
32	833938 Whirlpool Refrigerator Terminal
32	WP503695 Whirlpool Refrigerator Sealer
32	72017 Whirlpool Appliance Touch-Up Paint White
32	350956 Whirlpool Spray Assembly
32	876370 Whirlpool Refrigerator Insulation
32	WP542638 Whirlpool Refrigerator Grease
32	TAPE, VINYL (3/4 X 108“)
32	350942 Whirlpool Spray Paint
32	285006 Whirlpool Spray
32	606755 Whirlpool Refrigerator Bag
32	WPL 876029
32	WPL 799833
32	212643 Whirlpool Refrigerator Permagum Sealer
32	WPL 799832
32	CEMENT, ALUMILASTIC (1 1/4 OZ.)
32	Almond (Uncut)
32	511873 Whirlpool Refrigerator Paint
32	Leveler (Thinner)
32	Hood & Foil Assembly
