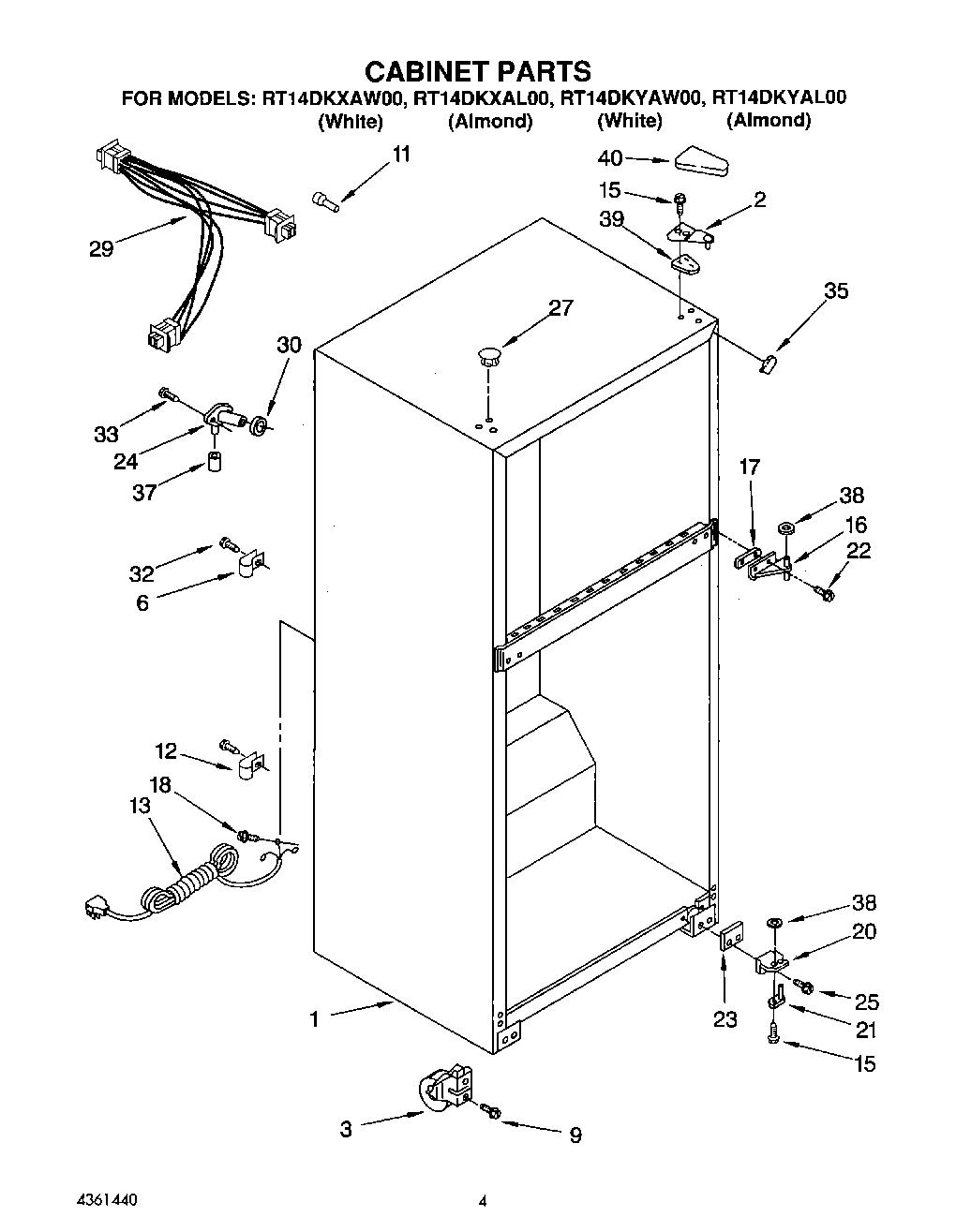

RT14DKYAW00 03 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	WP2189412 Whirlpool Refrigerator Door Hinge
3	Roller-Front
6	WP488366 Whirlpool Refrigerator Clamp
9	Screw
11	Tube, Water Inlet
12	549193 Whirlpool Refrigerator Power Clamp
13	Cord, Service
15	Screw
16	WP2166037 Whirlpool Refrigerator Door Hinge
17	Shim, Hinge Center
20	WP2325482 Whirlpool Bottom Hinge
21	Hinge-Pin Bott.
22	Screw 10-32 x 5/16
23	Shim, Bottom Hinge
24	WP2196157 Whirlpool Fill Tube
25	WP999367 Whirlpool Refrigerator Screw
27	Hole Plug (6) (Almond)
27	WP2151652 Whirlpool Refrigerator Button Plug
29	Cabinet, Wiring Assembly
30	WP1106508 Whirlpool Refrigerator Gasket
32	WP489478 Whirlpool Refrigerator Screw
35	Corner Filler (Almond)
35	W10859322 Whirlpool Refrigerator Filler
37	WP487996 Whirlpool Refrigerator Cap Tube
38	WP489235 Whirlpool Refrigerator Washer
39	Shim
40	WP2213360 Whirlpool Refrigerator Cover
40	Cover, Hinge (Almond)
