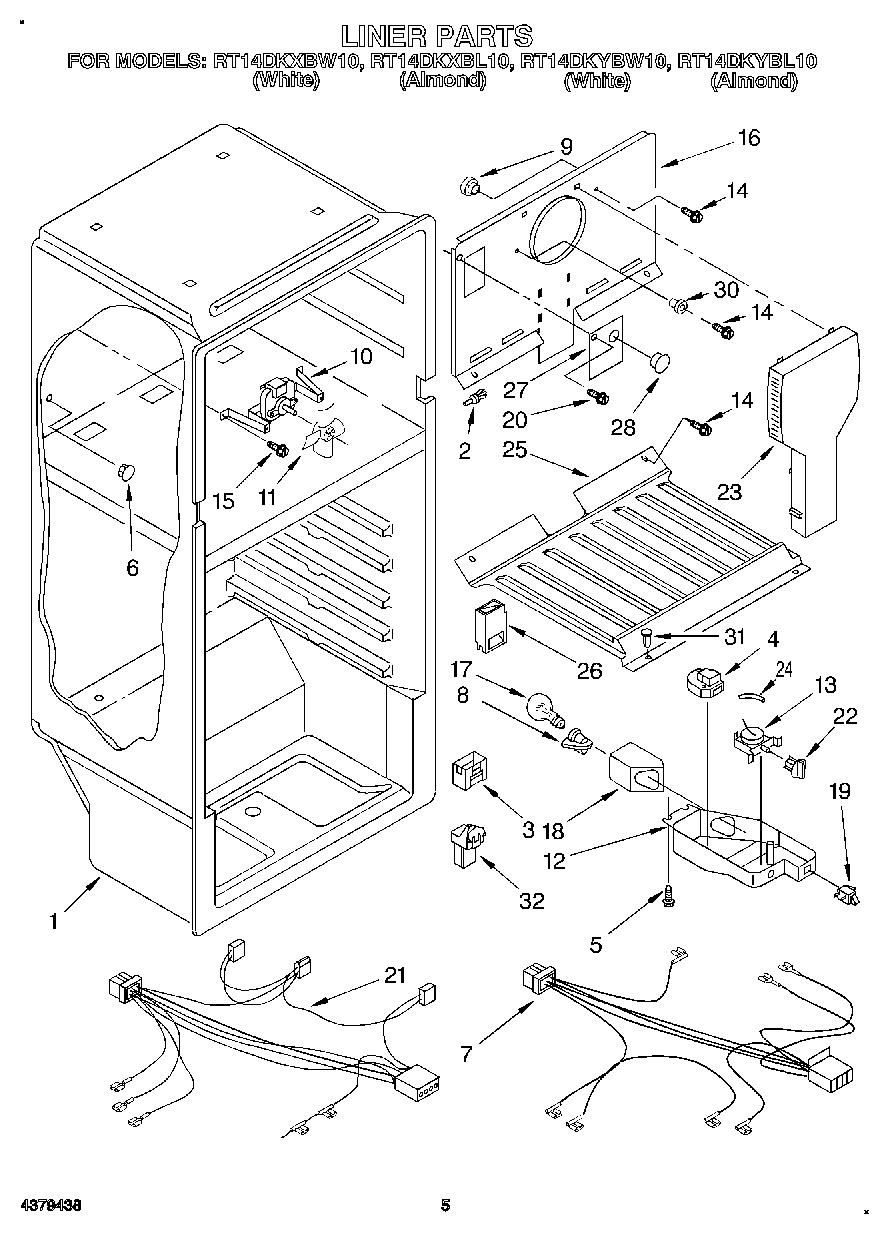

RT14DKYBL10 03 – LINER, LIT/OPTIONAL

RT14DKYBL10 03 – LINER, LIT/OPTIONAL

Written by

in

RT14DKYBL10 03 – LINER, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2173247
	Torx Key
	WPL LIT2157981
	WPL LIT2169459
1	Liner (Not A Serviceable Part)
2	939962 Whirlpool Refrigerator Rivet
3	Diffuser-Air
4	WP2183400 Whirlpool Defrost Timer
5	WP489174 Whirlpool Refrigerator Screw
6	WP941839 Whirlpool Refrigerator Button Plug
7	2176927 Whirlpool Refrigerator Wire Harness
8	4387478 Whirlpool Refrigerator Light Socket
9	Grommet
10	Fan Motor & Bracket Assy.
11	Fan Blade
12	2215213 Whirlpool Refrigerator Control Box
13	Thermostat
14	WP488163 Whirlpool Refrigerator Screw
15	WP489478 Whirlpool Refrigerator Screw
16	Cover-Evaporator
17	W11679940 Whirlpool Refrigerator Light Bulb Assembly
18	W11034434 Whirlpool Refrigerator Light Lens
19	W11384469 Whirlpool Door Switch
20	WP488729 Whirlpool Refrigerator Door Screw
21	Wiring-Freezer
22	WP2202885 Whirlpool Refrigerator Thermal Knob
23	Air Tower
24	WP2196003 Whirlpool Refrigerator Bar Riser
25	Freezer Floor
26	Air Diffuser
27	WP2217784 Whirlpool Refrigerator Cover
28	Hole Plug
30	Sleeve
31	WP489115 Whirlpool Refrigerator Rivet
32	Door Reversal Instructions
32	350956 Whirlpool Spray Assembly
32	WP72107 Whirlpool Touchup
32	Hood & Foil Assembly
32	72017 Whirlpool Appliance Touch-Up Paint White
32	606755 Whirlpool Refrigerator Bag
32	350930 Whirlpool White Spray Paint
32	799344 Whirlpool Refrigerator Paint
32	Leveler (Thinner)
32	876370 Whirlpool Refrigerator Insulation
32	WP503695 Whirlpool Refrigerator Sealer
32	WP505587 Whirlpool Refrigerator Sealer
32	WP542638 Whirlpool Refrigerator Grease
32	511873 Whirlpool Refrigerator Paint
32	TAPE, VINYL (3/4 X 108“)
32	CEMENT, ALUMILASTIC (1 1/4 OZ.)
32	WPL 799832
32	WPL 799833
32	WPL 876029
32	350942 Whirlpool Spray Paint
32	72032 Whirlpool Touch Up Paint Black
32	212643 Whirlpool Refrigerator Permagum Sealer
32	285006 Whirlpool Spray
32	Almond (Uncut)
32	833938 Whirlpool Refrigerator Terminal
