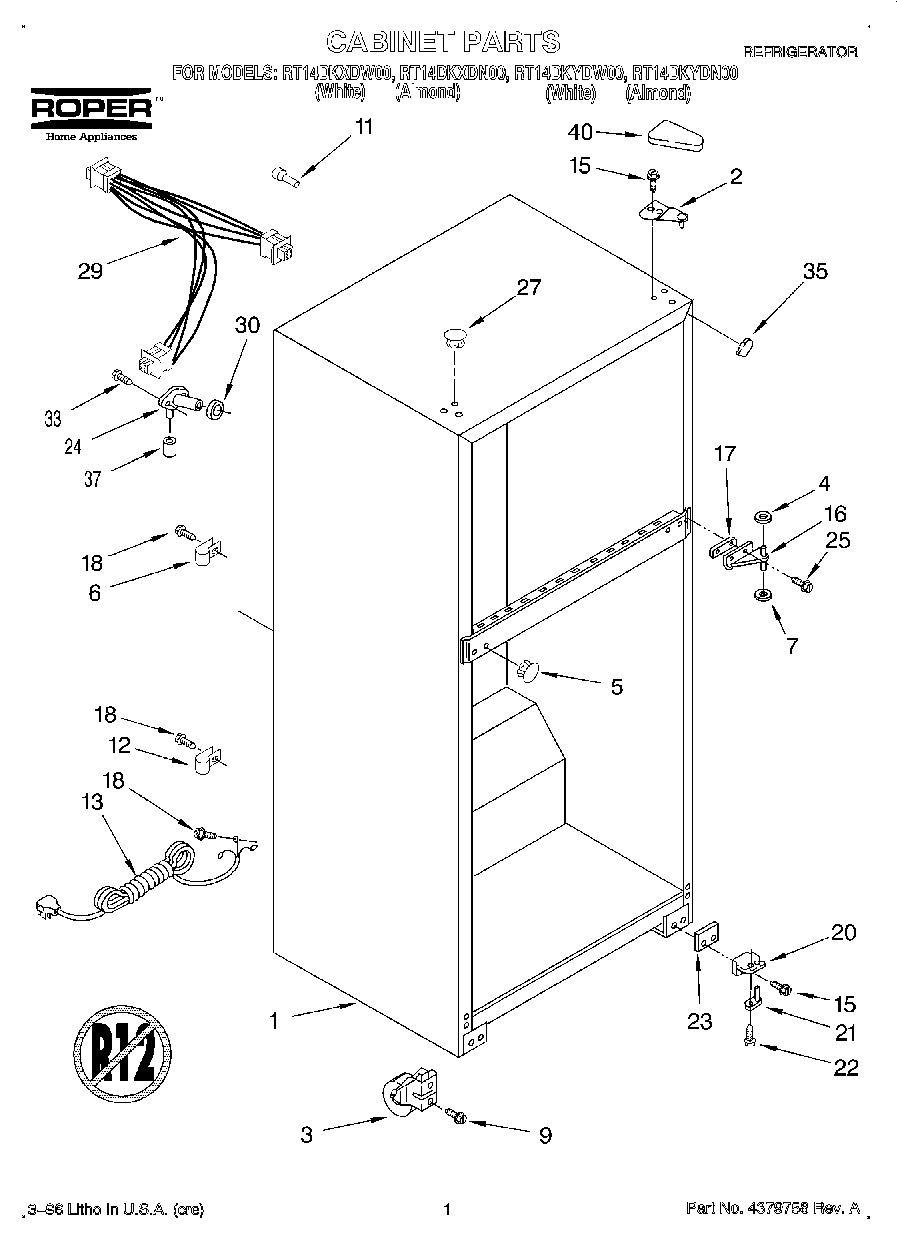

RT14DKYDN00 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	WP2189412 Whirlpool Refrigerator Door Hinge
3	Roller-Front
4	WP487576 Whirlpool Washer
5	Hole Plug (4) (White)
6	WP488366 Whirlpool Refrigerator Clamp
7	WP487802 Whirlpool Refrigerator Washer
9	Screw
11	Tube, Water Inlet
12	549193 Whirlpool Refrigerator Power Clamp
13	Cord, Service
16	WP2166037 Whirlpool Refrigerator Door Hinge
17	2166043 Whirlpool Refrigerator Shim
18	WP489478 Whirlpool Refrigerator Screw
20	WP2325482 Whirlpool Bottom Hinge
21	Hinge-Pin Bott.
22	Screw 10-32 x 5/16
23	WP2201567 Whirlpool Hinge Shim
24	WP2196157 Whirlpool Fill Tube
25	WP999367 Whirlpool Refrigerator Screw
27	WP2151652 Whirlpool Refrigerator Button Plug
27	Hole Plug (6) (Almond)
29	Cabinet, Wiring Assembly
30	WP1106508 Whirlpool Refrigerator Gasket
35	W10859322 Whirlpool Refrigerator Filler
35	Corner Filler (Almond)
37	WP487996 Whirlpool Refrigerator Cap Tube
40	Cover, Hinge (Almond)
40	WP2213360 Whirlpool Refrigerator Cover
