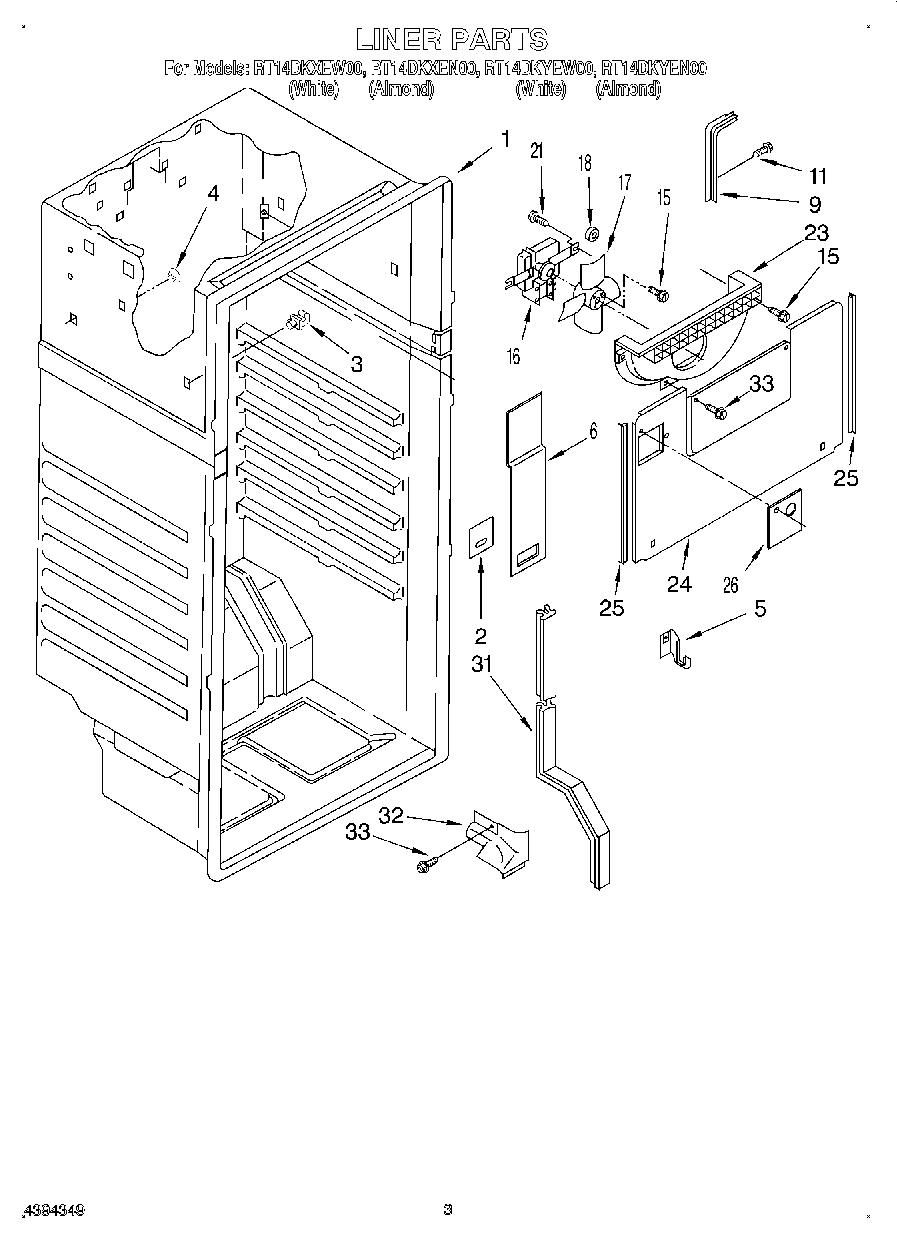

RT14DKYEW00 02 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Shield, Wiring
3	Stud Hook (2)
4	WP941839 Whirlpool Refrigerator Button Plug
5	Evaporator Support (2)
6	Cover, Air Duct
9	Air Deflector Side
11	Screw, 8-32
15	Screw
16	482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
17	WP1100938 Whirlpool Refrigerator Fan Blade
18	Grommet
21	Screw (2)
23	Scroll, Fan
24	Evaporator Cover
25	Gasket
26	WP2217784 Whirlpool Refrigerator Cover
31	Cover Tube, Rear
32	Cover Tube, Bottom
33	SCREW
