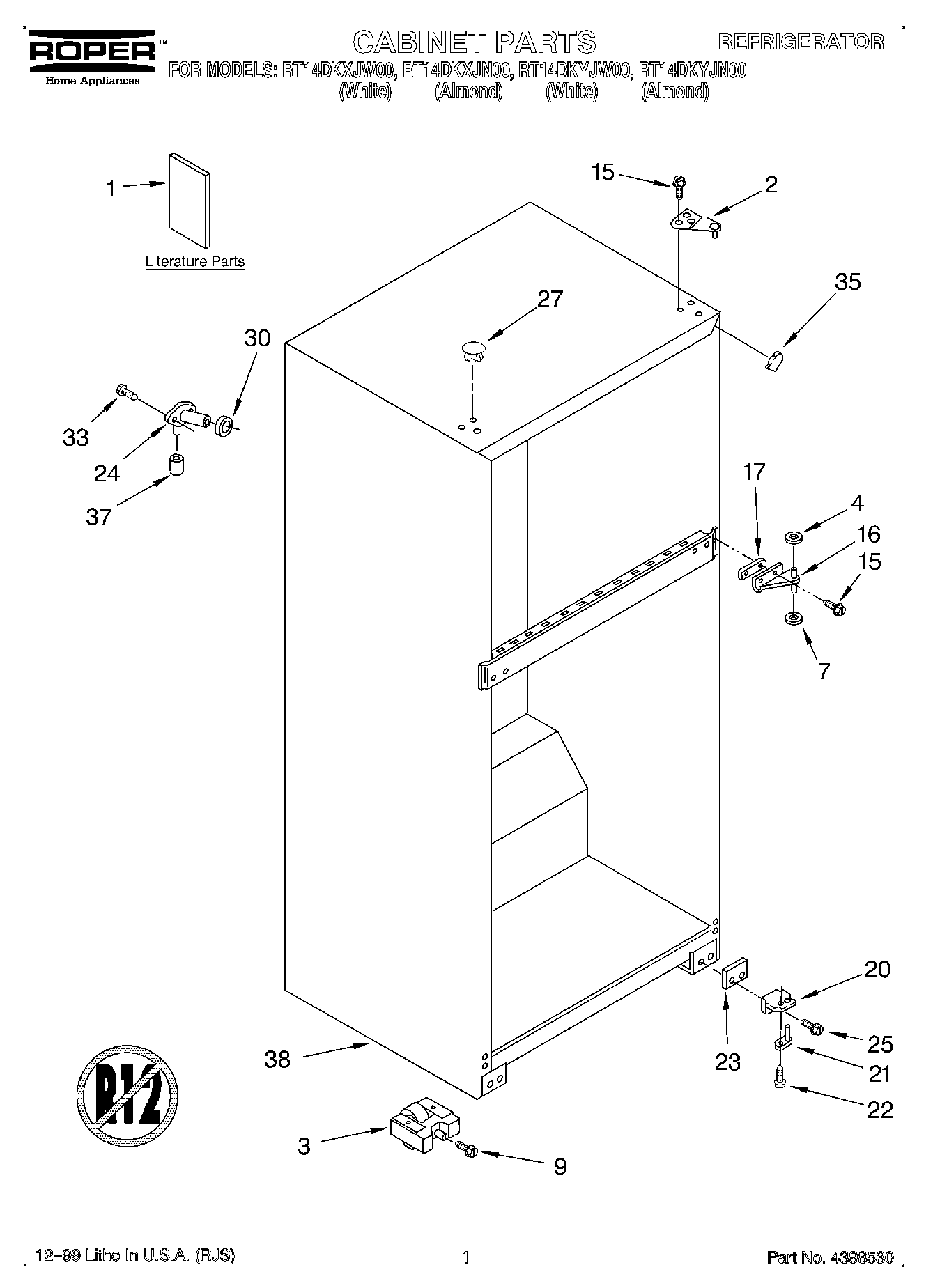

RT14DKYJW00 01 – CABINET, LITERATURE

RT14DKYJW00 01 – CABINET, LITERATURE

Written by

in

RT14DKYJW00 01 – CABINET, LITERATURE

Products

PositionProduct
1Energy Label
1Service & Wiring Sheet
1Use & Care Guide
2WP2261963 Whirlpool Refrigerator Door Hinge
32324094 Whirlpool Refrigerator Cabinet Roller
4WP487802 Whirlpool Refrigerator Washer
7WP487576 Whirlpool Washer
92222100 Whirlpool Refrigerator Screw
15WP489497 Whirlpool Screw
16WP2166037 Whirlpool Refrigerator Door Hinge
172166043 Whirlpool Refrigerator Shim
20WP2325482 Whirlpool Bottom Hinge
21Hinge-Pin Bott.
22Screw 10-32 x 5/16
23WP2201567 Whirlpool Hinge Shim
24WP2196157 Whirlpool Fill Tube
25WP999367 Whirlpool Refrigerator Screw
27WP2151652 Whirlpool Refrigerator Button Plug
27Hole Plug (6) (Almond)
30WP1106508 Whirlpool Refrigerator Gasket
35W10859322 Whirlpool Refrigerator Filler
35Corner Filler (Almond)
37WP487996 Whirlpool Refrigerator Cap Tube
38Cabinet (Not A Serviceable Part)
