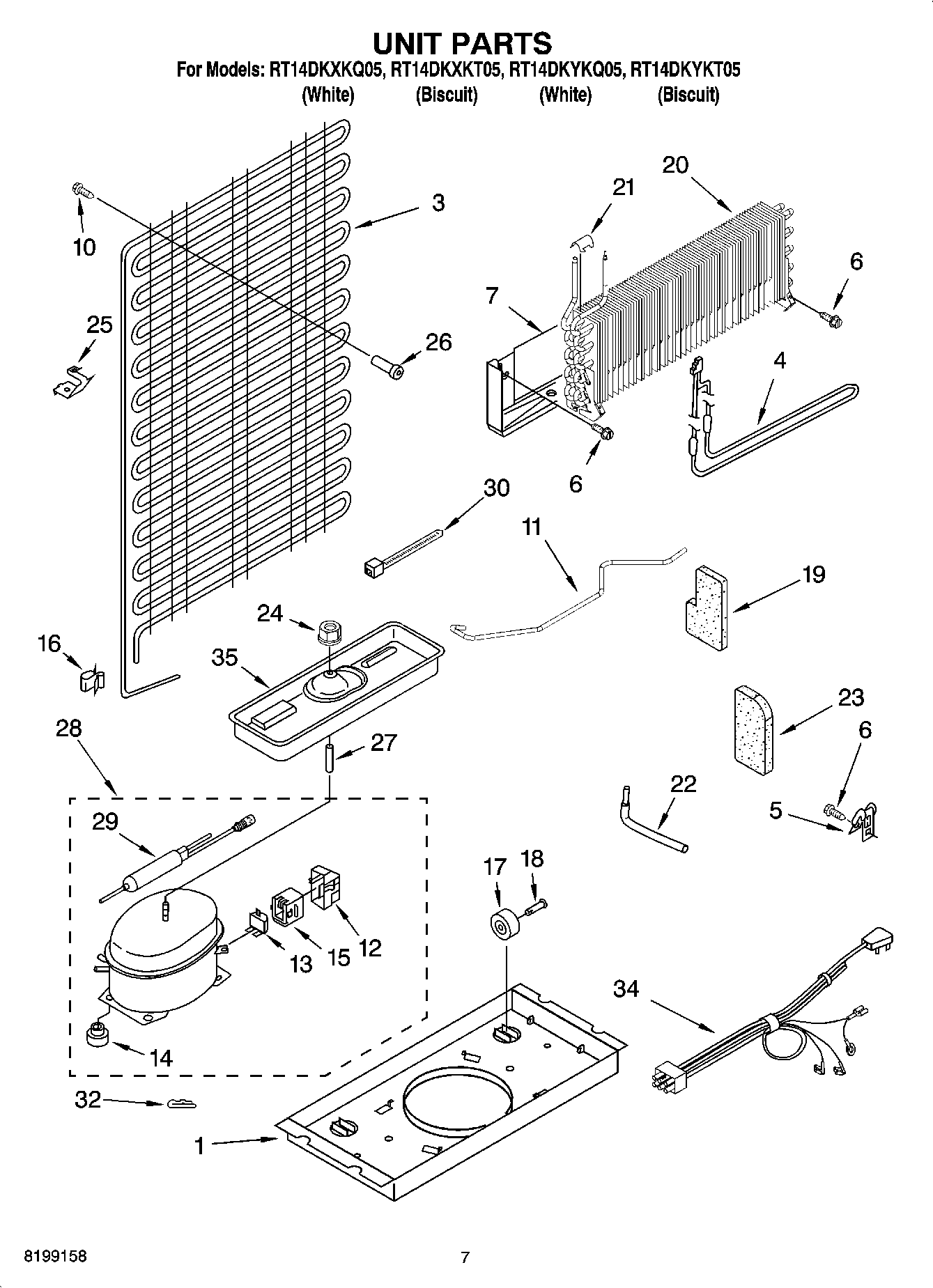

RT14DKYKQ05 04 – UNIT PARTS

Products

Position	Product
1	WPW10222451 Whirlpool Refrigerator Support
3	WP2252730 Whirlpool Refrigerator Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
5	549193 Whirlpool Refrigerator Power Clamp
6	WP489442 Whirlpool Refrigerator Screw
7	Heat Shield
10	Screw
11	Tube, Discharge
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP4387938 Whirlpool Refrigerator Overload
13	WP2149959 Whirlpool Refrigerator Overload
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
14	WP2163786 Whirlpool Refrigerator Grommet
15	WP2258450 Whirlpool Refrigerator Start Device
16	W10812038 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263919 Whirlpool Refrigerator Evaporator
21	9791833 Whirlpool Refrigerator Clip
22	Tube, Process
24	285002 Whirlpool Nut
25	4386951 Whirlpool Refrigerator Clip
26	2258452 Whirlpool Refrigerator Spacer
27	Spacer
28	W10823815 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
32	Clip, Compressor
34	Wire Assy. Unit
35	Following Parts Not Illustrated and Optional Parts Not Included
35	Tray, Evaporator
35	VALVE, ACCESS (5/8“)
35	VALVE, ACCESS (1/2“)
35	WP978025 Whirlpool Refrigerator Valve
35	978030 Whirlpool Refrigerator Valve
35	978027 Whirlpool Refrigerator Primary Valve
35	978026 Whirlpool Refrigerator Primary Valve
35	876764 Whirlpool Refrigerator Primary Valve
35	REFRIGERANT CHARGE 3.75 Ozs. (R134A)
