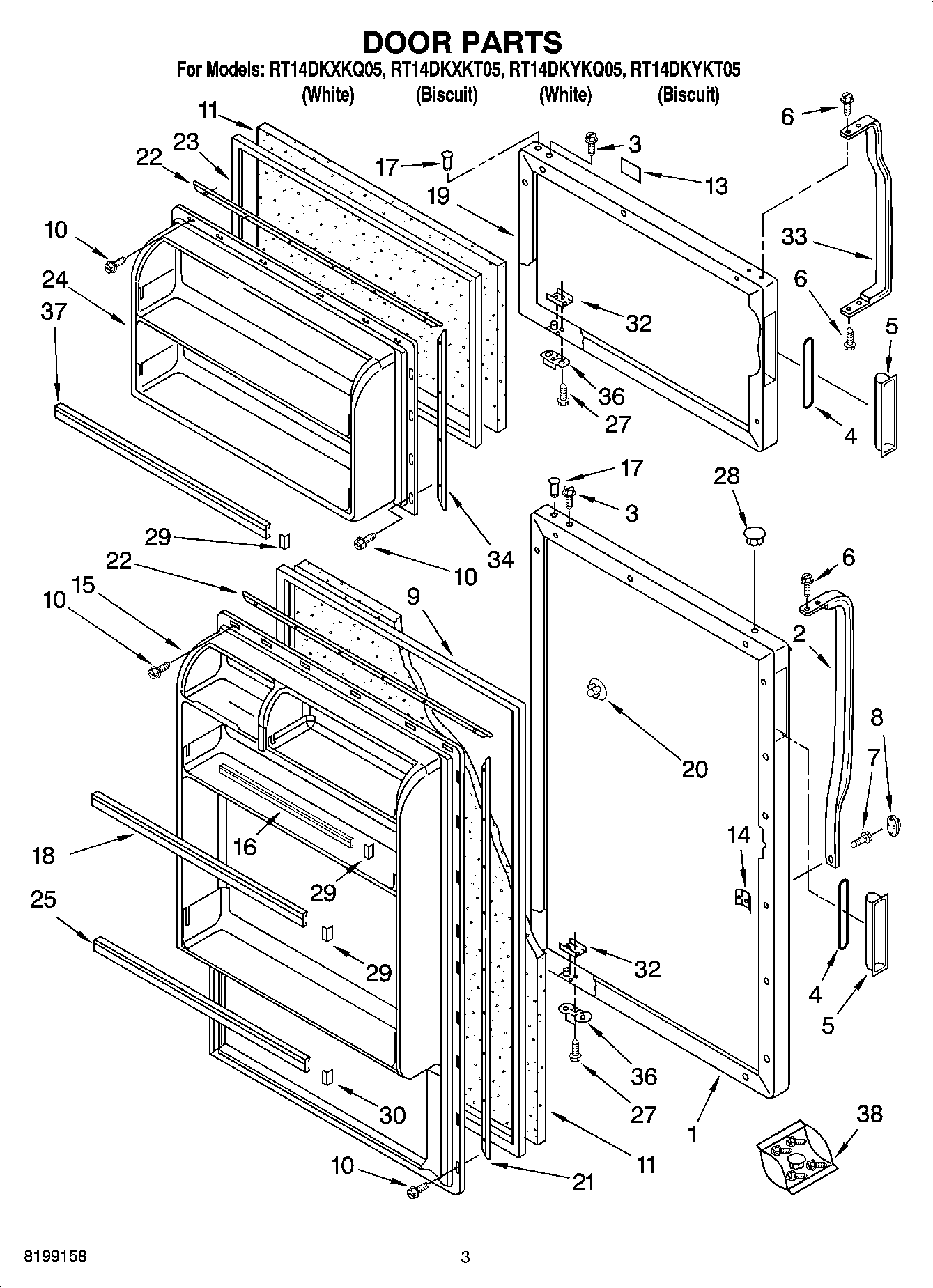

RT14DKYKT05 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door Panel (Also Order Item 11 & 17) (Biscuit)
1	Refrigerator Door Panel (Also Order Item 11) (White)
2	HANDLE
2	WP2221946T Whirlpool Refrigerator Handle
3	WP8281206 Whirlpool Refrigerator Screw
4	Gasket, Handle
5	Handle (Biscuit)
5	WP984493 Whirlpool Refrigerator Handle
6	WP489357 Whirlpool Recessed Screw
7	WP8281146 Whirlpool Screw
8	WP2202819W Whirlpool Refrigerator Cover
8	Cover, Screw (Biscuit)
9	2188448A Whirlpool Refrigerator Door Gasket Seal
10	WP489442 Whirlpool Refrigerator Screw
11	WPL 876029
13	Nameplate (White)
13	Nameplate (Biscuit)
14	WP939101 Whirlpool Refrigerator Plate
15	Interior Door Panel (Refrigerator)
17	WP2183003 Whirlpool Thimble
19	Freezer Door Panel (Also Order Item 11) (White)
19	Freezer Door Panel (Also Order Item 11 & 17) (Biscuit)
20	WP2189000 Whirlpool Refrigerator Handle Plug
20	WP2200936 Whirlpool Refrigerator Handle Plug
21	Gasket, Retainer
22	Retainer, Gasket
23	2188462A Whirlpool Freezer Door Gasket
24	Interior Door Panel (Freezer)
25	Trim, Door (Middle)
27	WP488921 Whirlpool Refrigerator Screw
28	WP2212649 Whirlpool Refrigerator Button Plug
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29	ENDCAP-TRM
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
32	W10833053 Whirlpool Refrigerator Plate
33	WP2215015 Whirlpool Refrigerator Handle
33	HANDLE
34	Retainer, Gasket
36	Bracket, Door Stop
37	WP2163629 Whirlpool Refrigerator Door Trim
38	Hole Plug Kit (If Bow Handle is Removed) (Biscuit)
38	Hole Plug Kit (If Bow Handle is Removed) (White)
