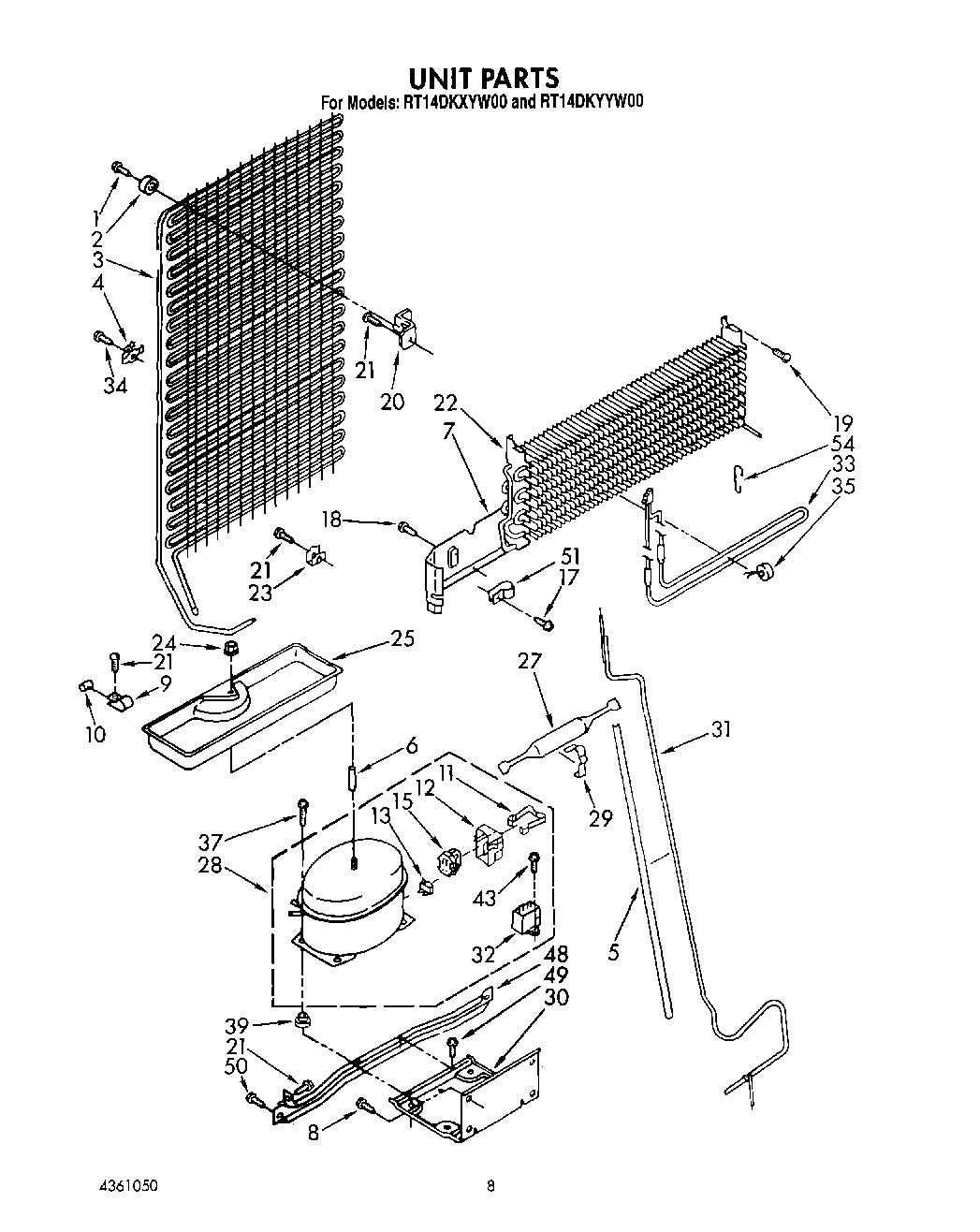

RT14DKYYW00 06 – UNIT

Products

Position	Product
1	WP488163 Whirlpool Refrigerator Screw
2	Bumper
3	Condenser
4	Clip, Tube
5	WP2002171 Whirlpool Refrigerator Sleeve
6	Spacer
7	Heat Shield Evaporator
9	Clamp Tube
10	Dampener
11	Strap
12	Cover
13	Overload
13	Overload
15	Relay (See Overload)
17	Screw, 8-32 x 1/2
19	WP489174 Whirlpool Refrigerator Screw
20	Bracket, Condenser
21	WP489478 Whirlpool Refrigerator Screw
22	Evaporator
23	4386951 Whirlpool Refrigerator Clip
24	285002 Whirlpool Nut
25	Evaporator Tray
27	W10843121 Whirlpool Refrigerator Tube
28	876765 Whirlpool Primary Mounting Kit Refrigerator
28	Compressor (Includes Items 11, 12, 13, 15, 32, 43, & 49)
28	Installation Kit
29	Clamp, Dryer
30	Unit Mounting Plate
31	Exchanger, Heat
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	Heater, Defrost
34	WP965173 Whirlpool Dishwasher Screw
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
39	876811 Whirlpool Grommet
43	W11693756 Whirlpool Screw Assembly
48	Unit Mounting Rail
49	WP489128 Whirlpool Refrigerator Screw
50	WP489427 Whirlpool Refrigerator Screw
51	Tube, Clamp
54	VALVE, ACCESS (1/2“)
54	VALVE, ACCESS (5/8“)
54	978027 Whirlpool Refrigerator Primary Valve
54	WP978025 Whirlpool Refrigerator Valve
54	978030 Whirlpool Refrigerator Valve
54	876764 Whirlpool Refrigerator Primary Valve
54	Support, Heater
54	978026 Whirlpool Refrigerator Primary Valve
