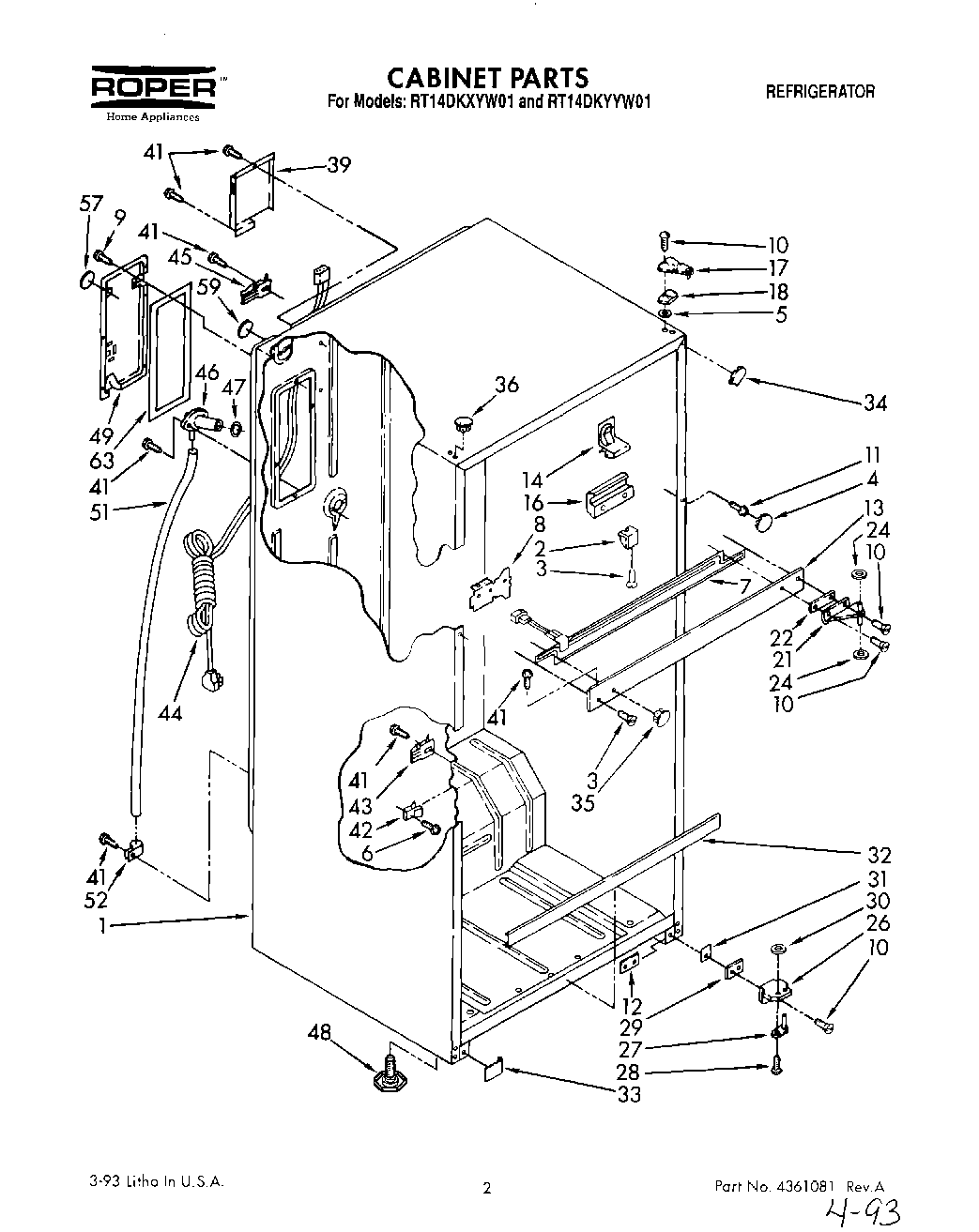

RT14DKYYW01 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Spacer (3)
3	Screw
4	Hole Plug (2) (Golden Harvest)
4	Hole Plug (2) (Almond)
4	Hole Plug (2) (White)
5	WP487576 Whirlpool Washer
6	WP250830 Whirlpool Refrigerator Screw
7	Heater, Mullion
8	Center Rail, Bracket (2)
9	WP489464 Whirlpool Refrigerator Screw
10	Screw
11	Screw, 8-32 x 1/2 (2)
12	Tap Plate (2)
13	Center Rail (Golden Harvest)
13	Center Rail (White)
13	Center Rail (Almond)
14	Clip, Center Rail (4)
16	Center, Rail Shim (2)
17	Hinge, Top
18	Shim, Hinge Top
21	Hinge, Center
22	Shim, Hinge Center
24	WP489467 Whirlpool Hinge Shim
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw 10-32 x 5/16
29	Shim, Bottom
30	Washer, 7/64
31	Cover, Glider Rail (White)
31	Cover, Glider Rail (Almond)
31	Cover, Glider Rail (Golden Harvest)
32	Cover, Deck Rail (Golden Harvest)
32	Cover, Deck Rail (White)
32	Cover, Deck Rail (Almond)
33	WPL 944833
33	WPL 944831
33	WPL 943552
34	WPL 1110684
34	WPL 1110685
34	WPL 1110686
35	Hole Plug (Almond)
35	Hole Plug (White)
35	WPL 1119708
36	Hole Plug (5) (Golden Harvest)
36	Hole Plug (6) (Almond)
36	WP2151652 Whirlpool Refrigerator Button Plug
39	WPL 942845
41	WP489478 Whirlpool Refrigerator Screw
42	W10812038 Whirlpool Refrigerator Clip
43	549193 Whirlpool Refrigerator Power Clamp
44	Cord, Service
45	Clamp
46	WPL 942813
47	WPL 1106507
48	Leveler (2)
49	WPL 1106511
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 519405
57	WPL 1120224
59	Hole Seal
63	WPL 1106510
