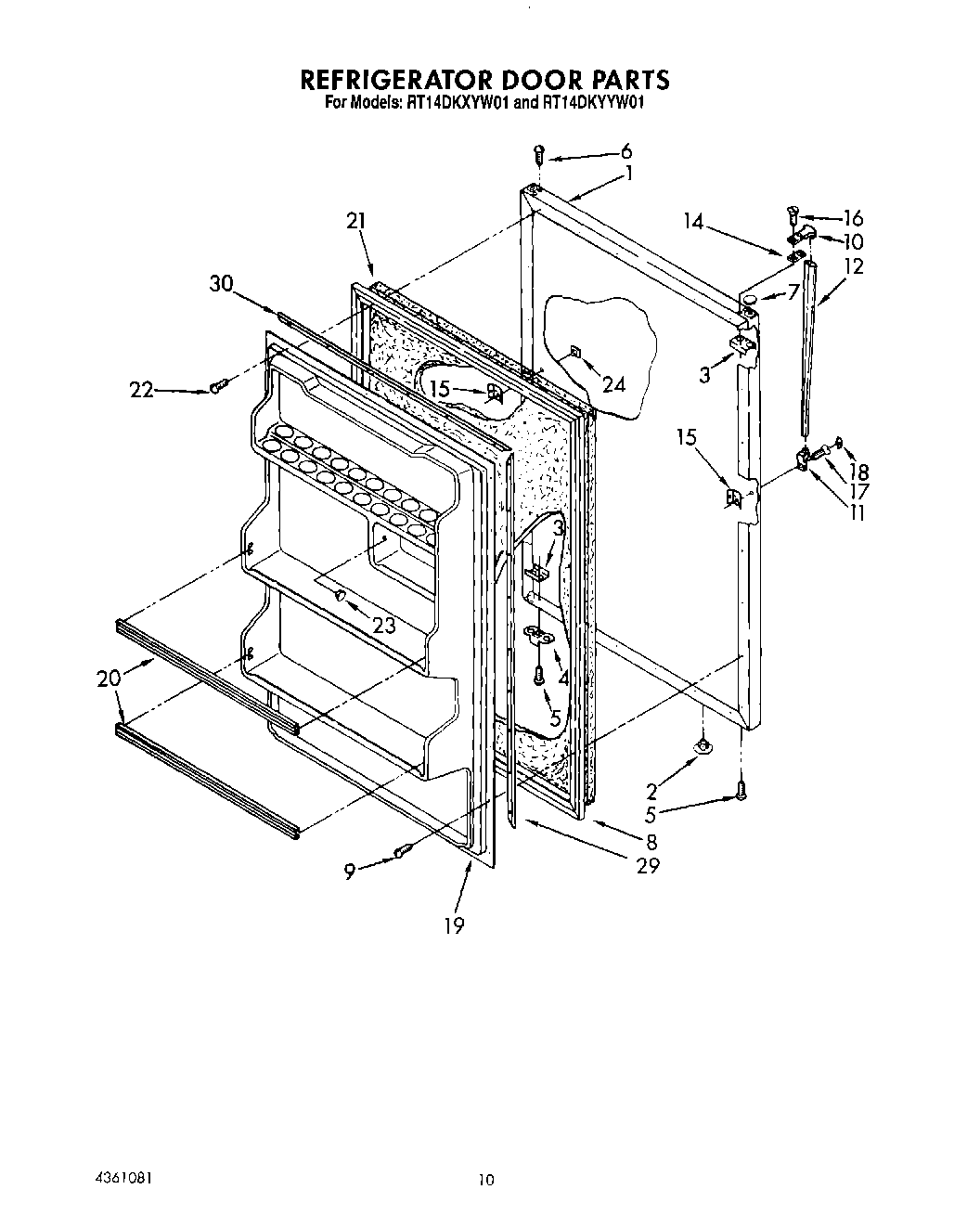

RT14DKYYW01 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

RT14DKYYW01 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Written by

in

RT14DKYYW01 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2152567
	WPL LIT2150256
	1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
	WPL LIT4361081
	WPL LIT2154703
	Torx Key
1	Panel, Refrigerator Door (Also Order Item 27) (Almond)
1	Panel, Refrigerator Door (Also Order Item 27) (White)
1	Panel, Refrigerator Door (Also Order Item 27) (Golden Harvest)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2188445A Whirlpool Refrigerator Door Gasket Seal
9	WP489069 Whirlpool Compactor Screw
10	819342 Whirlpool Refrigerator Endcap Kit
12	Handle, Center
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	WP1101634 Whirlpool Refrigerator Cover
19	Interior Door Panel
20	Trim, Door (Top) (2)
23	Hole Plug (White)
24	WP2189000 Whirlpool Refrigerator Handle Plug
24	Hole Plug, Handle (Almond)
24	Hole Plug, Handle (White)
29	Gasket Retainer, Side (2)
30	Leveler (Thinner)
30	212643 Whirlpool Refrigerator Permagum Sealer
30	WP72107 Whirlpool Touchup
30	Retainer, Gasket
30	350930 Whirlpool White Spray Paint
30	833938 Whirlpool Refrigerator Terminal
30	72017 Whirlpool Appliance Touch-Up Paint White
30	350956 Whirlpool Spray Assembly
30	Golden Harvest (Uncut)
30	TAPE, VINYL (3/4 X 108“)
30	Almond (Uncut)
30	72032 Whirlpool Touch Up Paint Black
30	CEMENT, ALUMILASTIC (1 1/4 OZ.)
30	Enamel, Black (1 Qt. Uncut)
30	WPL 799833
30	WPL 876029
30	Golden Harvest
30	WP542638 Whirlpool Refrigerator Grease
30	WP505587 Whirlpool Refrigerator Sealer
30	WP503695 Whirlpool Refrigerator Sealer
30	876370 Whirlpool Refrigerator Insulation
30	285006 Whirlpool Spray
30	606755 Whirlpool Refrigerator Bag
30	511873 Whirlpool Refrigerator Paint
30	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
30	350942 Whirlpool Spray Paint
30	799344 Whirlpool Refrigerator Paint
