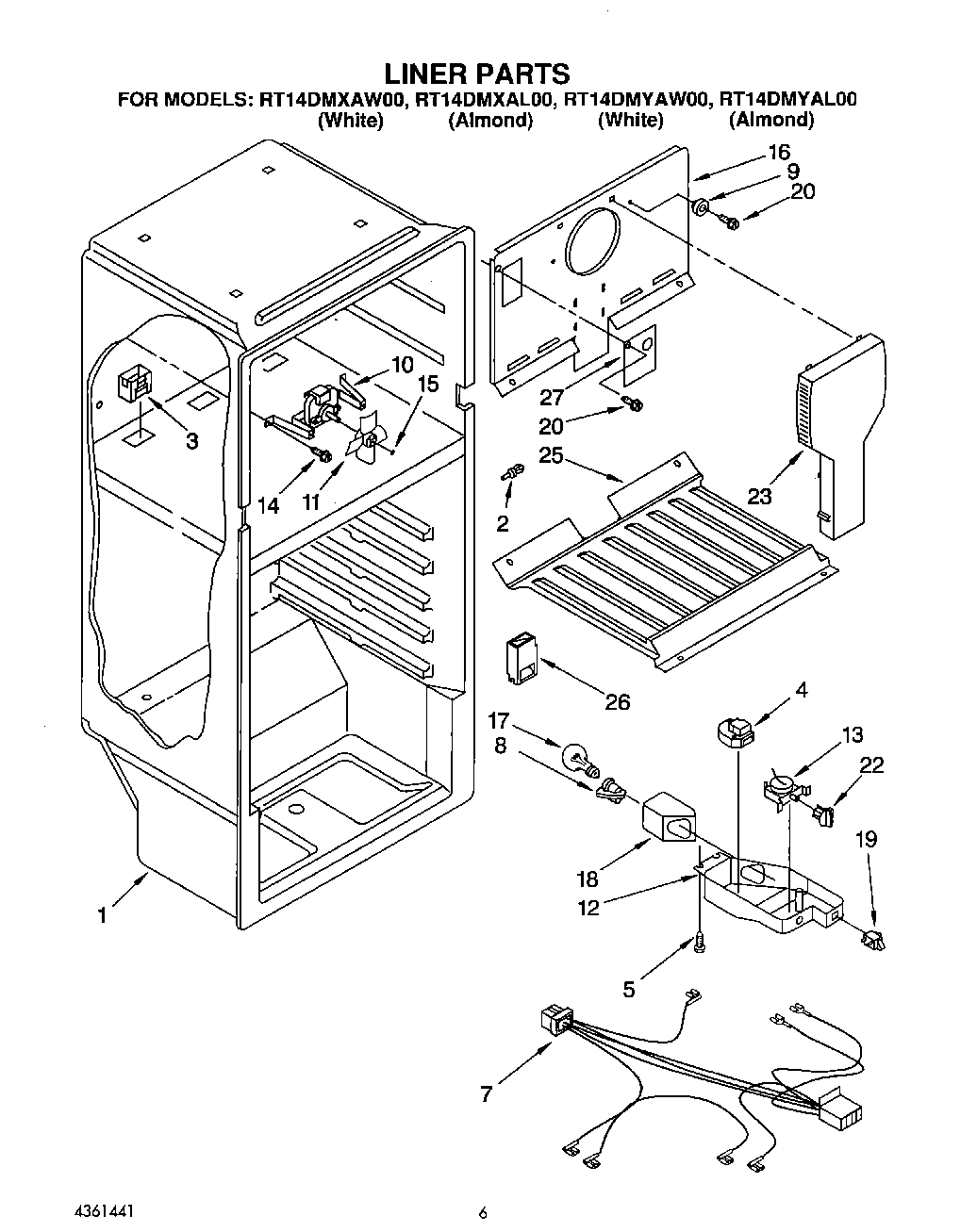

RT14DMXAL00 04 – LINER, LIT/OPTIONAL

RT14DMXAL00 04 – LINER, LIT/OPTIONAL

RT14DMXAL00 04 – LINER, LIT/OPTIONAL

Products

PositionProduct
WPL LIT9791409
WPL LIT2163325
WPL LIT4361441
WPL LIT2163327
Torx Key
1Liner (Not A Serviceable Part)
2939962 Whirlpool Refrigerator Rivet
3Diffuser-Air
4WP2183400 Whirlpool Defrost Timer
5WP489174 Whirlpool Refrigerator Screw
72176927 Whirlpool Refrigerator Wire Harness
84387478 Whirlpool Refrigerator Light Socket
9Grommet
10Fan Motor & Bracket Assy.
11Fan Blade
122215213 Whirlpool Refrigerator Control Box
13Thermostat
14WP489478 Whirlpool Refrigerator Screw
15Ring, Compression
16Cover-Evaporator
17W11679940 Whirlpool Refrigerator Light Bulb Assembly
18W11034434 Whirlpool Refrigerator Light Lens
19W11384469 Whirlpool Door Switch
20WP488729 Whirlpool Refrigerator Door Screw
22WP2202885 Whirlpool Refrigerator Thermal Knob
23Air Tower
25Freezer Floor
26Air Diffuser
27Almond (Uncut)
27WP2217784 Whirlpool Refrigerator Cover
27WP505587 Whirlpool Refrigerator Sealer
2772032 Whirlpool Touch Up Paint Black
27285006 Whirlpool Spray
27212643 Whirlpool Refrigerator Permagum Sealer
27350930 Whirlpool White Spray Paint
27Golden Harvest (Uncut)
27Golden Harvest
2772110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
27Leveler (Thinner)
27WP72107 Whirlpool Touchup
27799344 Whirlpool Refrigerator Paint
2772017 Whirlpool Appliance Touch-Up Paint White
27350942 Whirlpool Spray Paint
27511873 Whirlpool Refrigerator Paint
27606755 Whirlpool Refrigerator Bag
27WPL 876029
27WPL 799833
27Enamel, Black (1 Qt. Uncut)
27CEMENT, ALUMILASTIC (1 1/4 OZ.)
27TAPE, VINYL (3/4 X 108“)
27WP542638 Whirlpool Refrigerator Grease
27WP503695 Whirlpool Refrigerator Sealer
27876370 Whirlpool Refrigerator Insulation
27833938 Whirlpool Refrigerator Terminal
27350956 Whirlpool Spray Assembly
