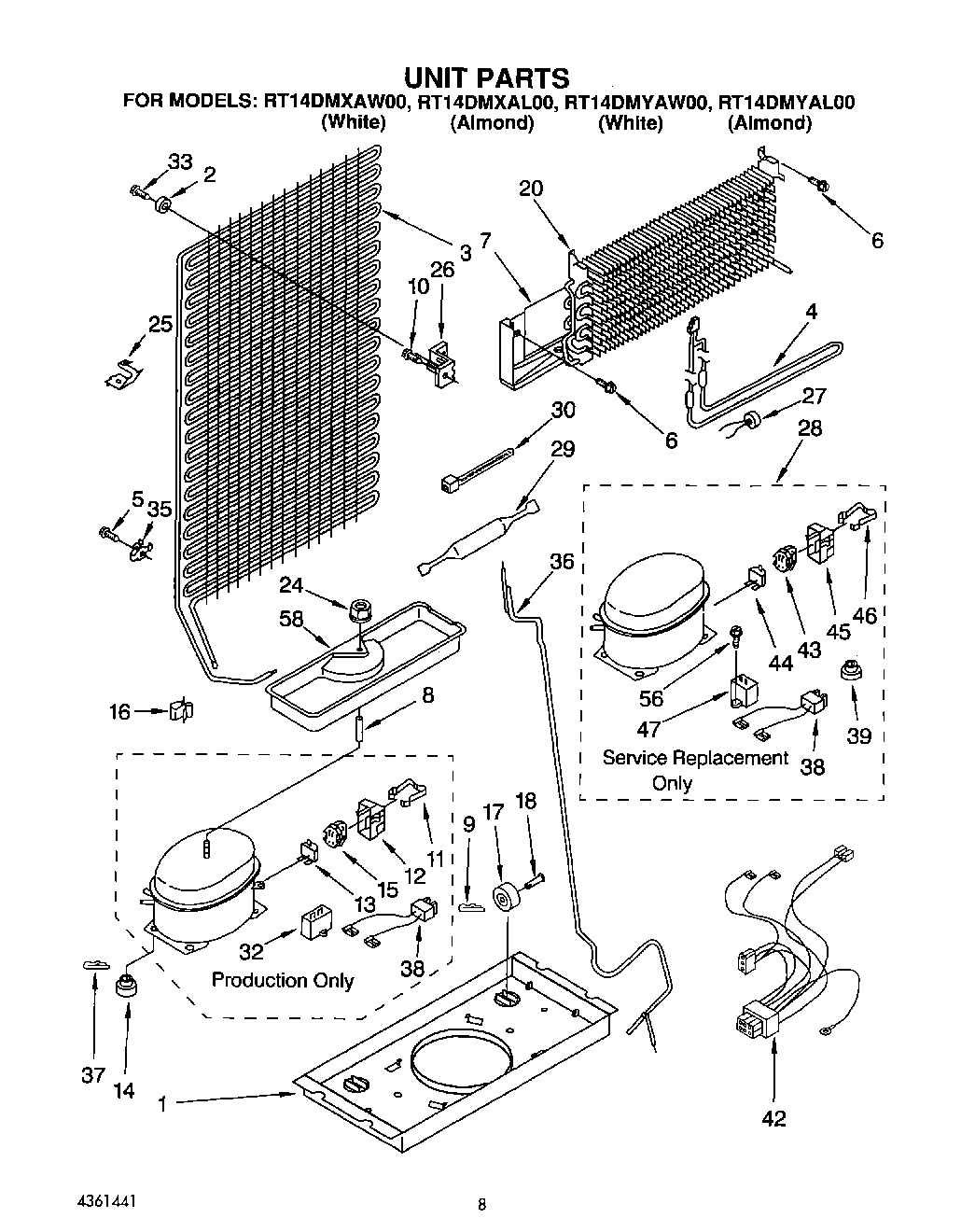

RT14DMXAL00 05 – UNIT

Written by

Products

Position	Product
1	WPW10222451 Whirlpool Refrigerator Support
2	Bumper
3	Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
5	WP965173 Whirlpool Dishwasher Screw
7	Heat Shield
8	Spacer
9	Clip-Pin
10	WP489478 Whirlpool Refrigerator Screw
13	Overload (Includes Relay)
14	WP2163786 Whirlpool Refrigerator Grommet
16	W10812038 Whirlpool Refrigerator Clip
17	4388239 Whirlpool Refrigerator Primary Cabinet Roller
18	Pin-Roller
20	WP2263919 Whirlpool Refrigerator Evaporator
24	285002 Whirlpool Nut
25	4386951 Whirlpool Refrigerator Clip
26	Bracket, Condenser
27	WP4387490 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
28	876765 Whirlpool Primary Mounting Kit Refrigerator
28	Installation Kit
28	Compressor (Includes Items 43, 44, 45, 46, 47, 52, 53, & 55) (Also Order 482801 Tray Mounting Kit &
29	W10843121 Whirlpool Refrigerator Tube
30	Strap
33	WP489174 Whirlpool Refrigerator Screw
35	Clip, Tube
36	Heat Exchanger
37	Clip, Compressor
38	WP2172890 Whirlpool Refrigerator Wire
39	876811 Whirlpool Grommet
42	Wire Assy. Unit
43	WP2262181 Whirlpool Refrigerator Start Relay
44	Overload
45	Cover
46	Strap
47	WPW10662129 Whirlpool Refrigerator Run Capacitor
56	W11693756 Whirlpool Screw Assembly
58	VALVE, ACCESS (5/8“)
58	876764 Whirlpool Refrigerator Primary Valve
58	978026 Whirlpool Refrigerator Primary Valve
58	978027 Whirlpool Refrigerator Primary Valve
58	978030 Whirlpool Refrigerator Valve
58	WP978025 Whirlpool Refrigerator Valve
58	VALVE, ACCESS (1/2“)
58	Evaporator Tray
58	Start Kit
