RT14DMYAL00 05 – UNIT

RT14DMYAL00 05 – UNIT

Written by

in

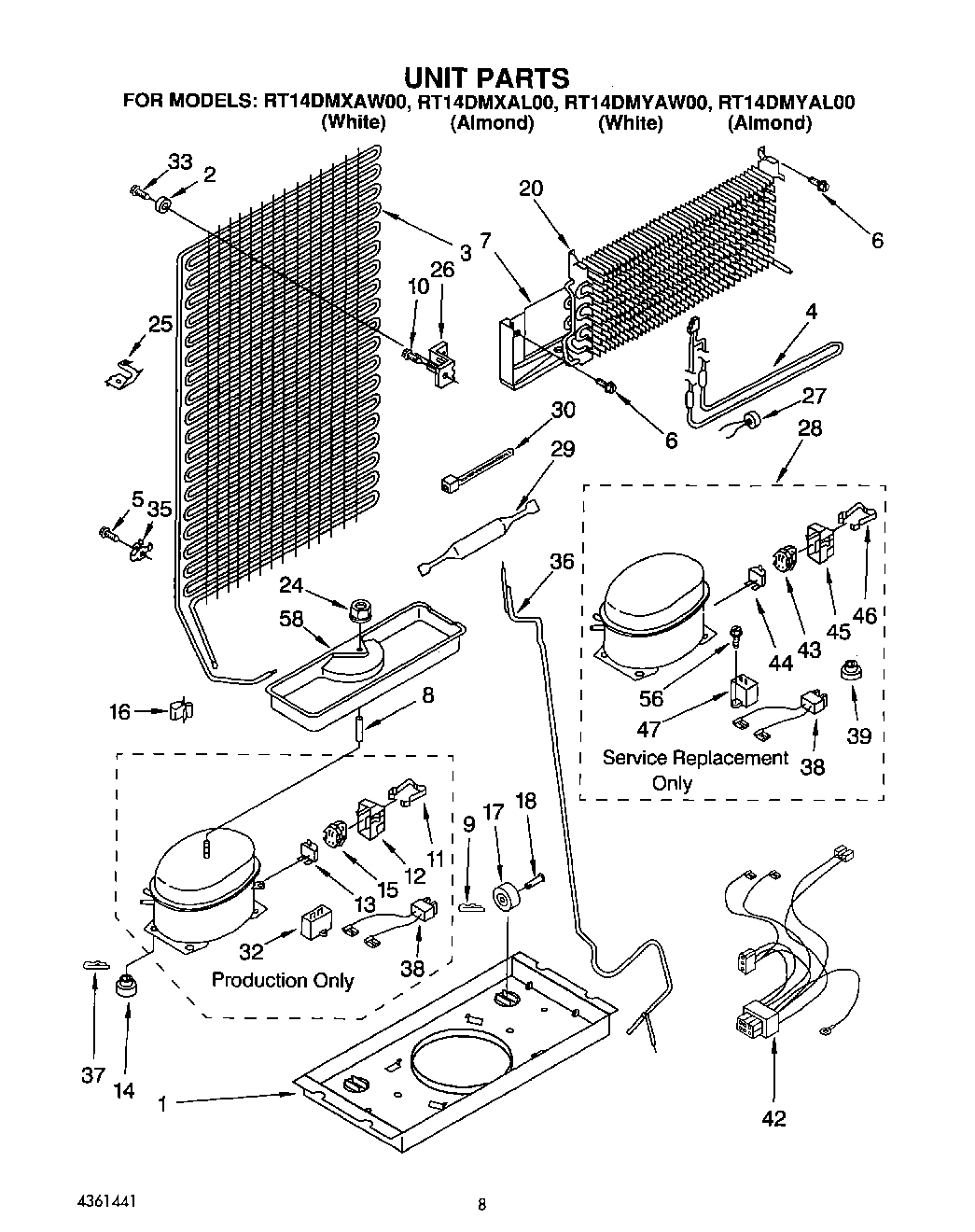

RT14DMYAL00 05 – UNIT

Products

PositionProduct
1WPW10222451 Whirlpool Refrigerator Support
2Bumper
3Condenser
4WP2263749 Whirlpool Defrost Heater Assembly
5WP965173 Whirlpool Dishwasher Screw
7Heat Shield
8Spacer
9Clip-Pin
10WP489478 Whirlpool Refrigerator Screw
13Overload (Includes Relay)
14WP2163786 Whirlpool Refrigerator Grommet
16W10812038 Whirlpool Refrigerator Clip
174388239 Whirlpool Refrigerator Primary Cabinet Roller
18Pin-Roller
20WP2263919 Whirlpool Refrigerator Evaporator
24285002 Whirlpool Nut
254386951 Whirlpool Refrigerator Clip
26Bracket, Condenser
27WP4387490 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
28876765 Whirlpool Primary Mounting Kit Refrigerator
28Installation Kit
28Compressor (Includes Items 43, 44, 45, 46, 47, 52, 53, & 55) (Also Order 482801 Tray Mounting Kit &
29W10843121 Whirlpool Refrigerator Tube
30Strap
33WP489174 Whirlpool Refrigerator Screw
35Clip, Tube
36Heat Exchanger
37Clip, Compressor
38WP2172890 Whirlpool Refrigerator Wire
39876811 Whirlpool Grommet
42Wire Assy. Unit
43WP2262181 Whirlpool Refrigerator Start Relay
44Overload
45Cover
46Strap
47WPW10662129 Whirlpool Refrigerator Run Capacitor
56W11693756 Whirlpool Screw Assembly
58VALVE, ACCESS (5/8“)
58876764 Whirlpool Refrigerator Primary Valve
58978026 Whirlpool Refrigerator Primary Valve
58978027 Whirlpool Refrigerator Primary Valve
58978030 Whirlpool Refrigerator Valve
58WP978025 Whirlpool Refrigerator Valve
58VALVE, ACCESS (1/2“)
58Evaporator Tray
58Start Kit
