RT14DMYAW01 03 – LINER, LIT/OPTIONAL

RT14DMYAW01 03 – LINER, LIT/OPTIONAL

Written by

in

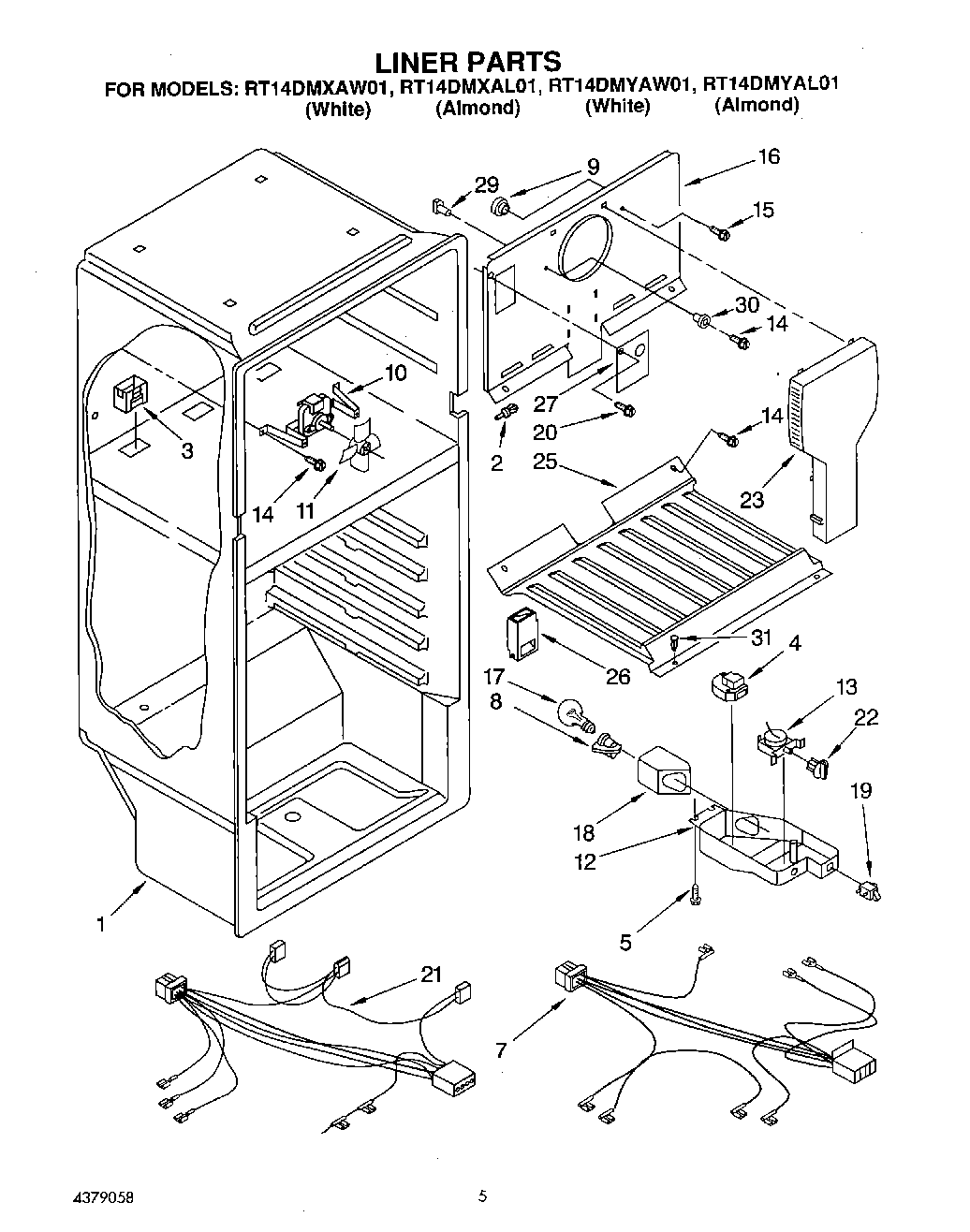

RT14DMYAW01 03 – LINER, LIT/OPTIONAL

Products

PositionProduct
Literature Parts (Do-It-Yourself Manual Ref./Frz.)
Torx Key
WPL LIT677971
WPL LIT2163498
WPL LIT2163325
WPL LIT4379058
WPL LIT9791409
1Liner (Not A Serviceable Part)
2939962 Whirlpool Refrigerator Rivet
3Diffuser-Air
4WP2183400 Whirlpool Defrost Timer
5WP489174 Whirlpool Refrigerator Screw
72176927 Whirlpool Refrigerator Wire Harness
84387478 Whirlpool Refrigerator Light Socket
9Grommet
10Fan Motor & Bracket Assy.
11Fan Blade
122215213 Whirlpool Refrigerator Control Box
13Thermostat
14WP488163 Whirlpool Refrigerator Screw
15Screw, 8 x 1-1/4 (3)
16Cover-Evaporator
17W11679940 Whirlpool Refrigerator Light Bulb Assembly
18W11034434 Whirlpool Refrigerator Light Lens
19W11384469 Whirlpool Door Switch
20WP488729 Whirlpool Refrigerator Door Screw
21Wiring-Freezer
22WP2202885 Whirlpool Refrigerator Thermal Knob
23Air Tower
25Freezer Floor
26Air Diffuser
27WP2217784 Whirlpool Refrigerator Cover
29Grommet
30Sleeve
31350942 Whirlpool Spray Paint
31WP489115 Whirlpool Refrigerator Rivet
31WP503695 Whirlpool Refrigerator Sealer
31WP72107 Whirlpool Touchup
31876370 Whirlpool Refrigerator Insulation
31350930 Whirlpool White Spray Paint
31833938 Whirlpool Refrigerator Terminal
31WP505587 Whirlpool Refrigerator Sealer
31799344 Whirlpool Refrigerator Paint
3172017 Whirlpool Appliance Touch-Up Paint White
31350956 Whirlpool Spray Assembly
31Almond (Uncut)
3172110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
31WPL 876029
31285006 Whirlpool Spray
3172032 Whirlpool Touch Up Paint Black
31WPL 799833
31212643 Whirlpool Refrigerator Permagum Sealer
31WP542638 Whirlpool Refrigerator Grease
31Enamel, Black (1 Qt. Uncut)
31CEMENT, ALUMILASTIC (1 1/4 OZ.)
31TAPE, VINYL (3/4 X 108“)
31Golden Harvest (Uncut)
31511873 Whirlpool Refrigerator Paint
31Golden Harvest
31606755 Whirlpool Refrigerator Bag
31Leveler (Thinner)
