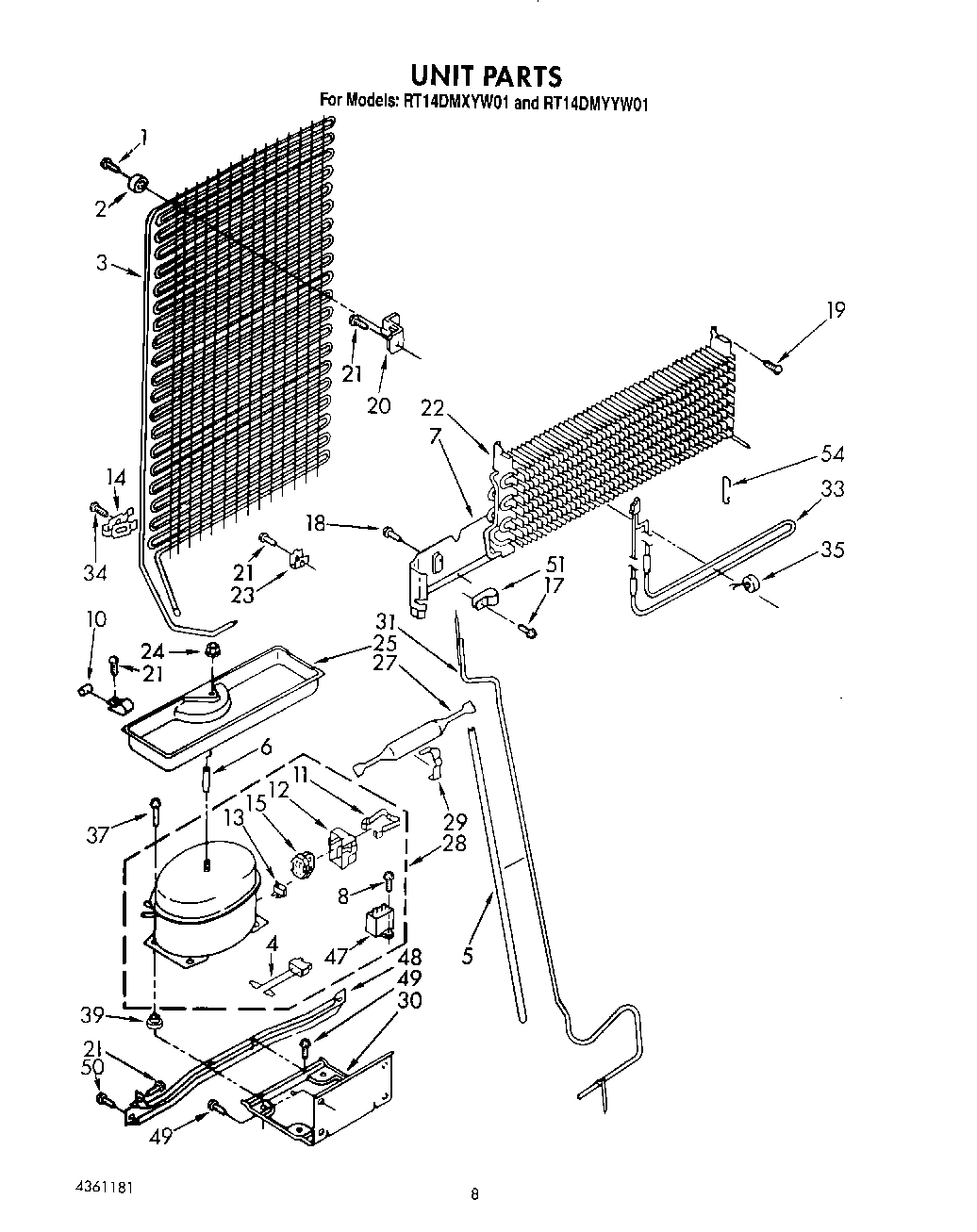

RT14DMYYW01 06 – UNIT

Products

PositionProduct
1WP488163 Whirlpool Refrigerator Screw
2Bumper
3Condenser
4WP2172890 Whirlpool Refrigerator Wire
5WP2002171 Whirlpool Refrigerator Sleeve
6Spacer
7Heat Shield Evaporator
8W11693756 Whirlpool Screw Assembly
9Clamp Tube
10Dampener
11Strap
11case spring
12Case, Relay
12Cover
13Overload
13Overload
14Clip, Tube
15Relay
16(See Overload)
17Screw, 8-32 x 1/2
19WP489174 Whirlpool Refrigerator Screw
20Bracket, Condenser
21WP489478 Whirlpool Refrigerator Screw
22Evaporator
234386951 Whirlpool Refrigerator Clip
24285002 Whirlpool Nut
25Tray, Evaporator
27W10843121 Whirlpool Refrigerator Tube
28Installation Kit
28Compressor (Includes Items 43, 44, 45, 46, 47, 52, 53, & 55) (Also Order 482801 Tray Mounting Kit &
28876765 Whirlpool Primary Mounting Kit Refrigerator
29Clamp, Dryer
30Unit Mounting Plate
31Exchanger, Heat
33Heater, Defrost
34WP965173 Whirlpool Dishwasher Screw
35WPW10225581 Whirlpool Refrigerator Defrost Thermostat
39876811 Whirlpool Grommet
47WPW10662129 Whirlpool Refrigerator Run Capacitor
48Unit Mounting Rail
49WP489427 Whirlpool Refrigerator Screw
50WP489128 Whirlpool Refrigerator Screw
51Tube, Clamp
54VALVE, ACCESS (5/8“)
54VALVE, ACCESS (1/2“)
54WP978025 Whirlpool Refrigerator Valve
54978030 Whirlpool Refrigerator Valve
54Support, Heater
54978027 Whirlpool Refrigerator Primary Valve
54876764 Whirlpool Refrigerator Primary Valve
54978026 Whirlpool Refrigerator Primary Valve
