RT14DMYYW01 08 – ICEMAKER, LIT/OPTIONAL

RT14DMYYW01 08 – ICEMAKER, LIT/OPTIONAL

Written by

in

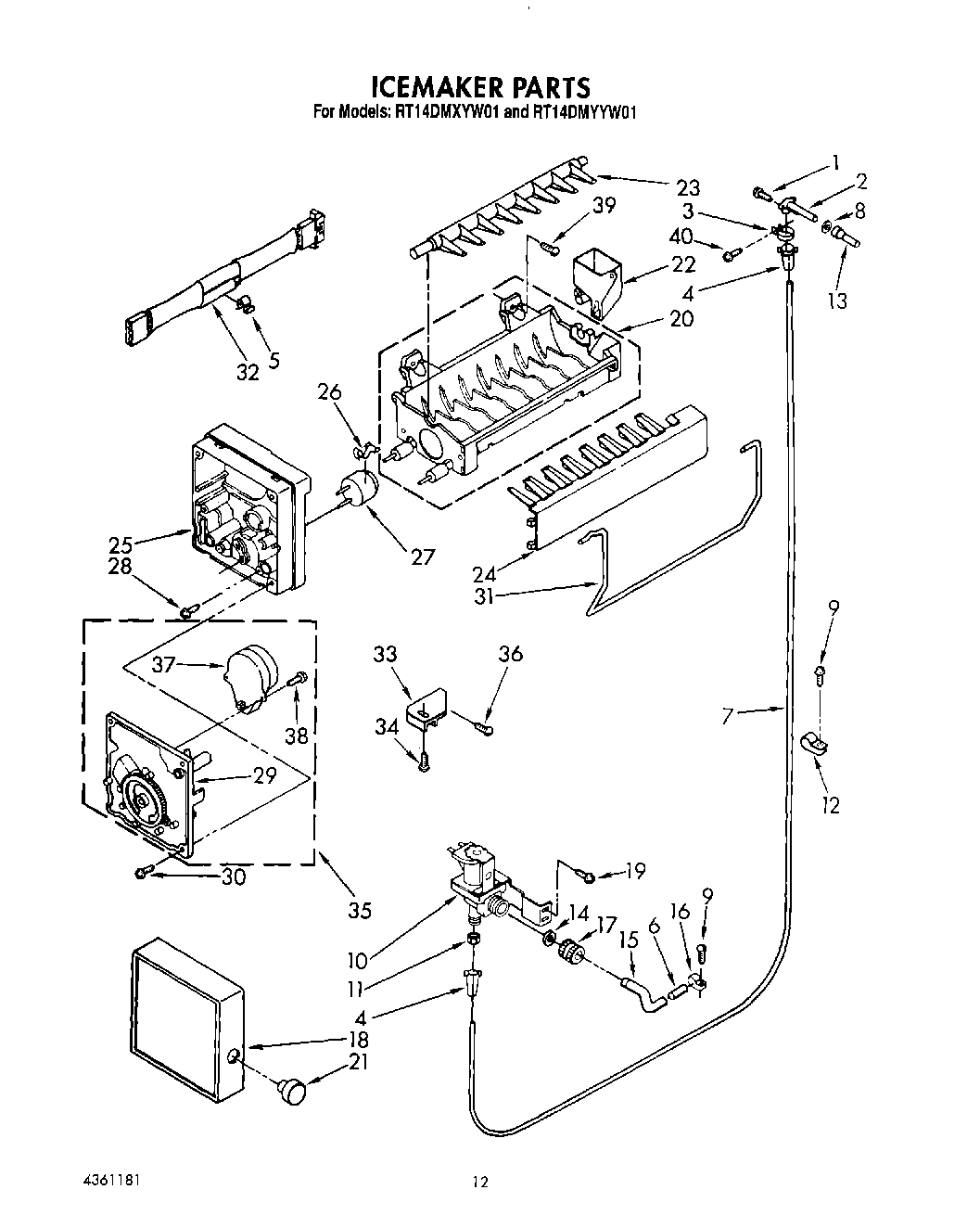

RT14DMYYW01 08 – ICEMAKER, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2150256
	WPL LIT2152567
	Torx Key
	Modular Icemaker Service Sheet
	WPL LIT2154703
	WPL LIT4361181
2	WP2196157 Whirlpool Fill Tube
3	WP488878 Whirlpool Refrigerator Tube Clamp
4	4387491 Whirlpool Refrigerator Insert
5	WP628379 Whirlpool Refrigerator Clip
7	W10823511 Whirlpool Refrigerator Water Tube
8	WP1106508 Whirlpool Refrigerator Gasket
9	WP489478 Whirlpool Refrigerator Screw
10	4318047 Whirlpool Water Valve
11	WP627018 Whirlpool Refrigerator Nut
12	WP488366 Whirlpool Refrigerator Clamp
13	Tube, Water Inlet
14	Washer
15	Tube, Inlet Valve
16	Clamp Tube
17	Nut, Valve
18	WPW10289690 Whirlpool Ice Maker Cover
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21	Knob, Water
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	Cement Alumilastic)
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
30	WP681249 Whirlpool Screw Assembly
31	WP627792 Whirlpool Refrigerator Shut Off Arm
32	WP2187501 Whirlpool Refrigerator Wire Harness
33	W11500948 Whirlpool Refrigerator Bracket
34	Screw, 8-32 x 27/64
36	Screw, 8-15 x 1/2 (4)
37	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
38	489136 Whirlpool Refrigerator Screw
39	WP488163 Whirlpool Refrigerator Screw
40	WP488787 Whirlpool Refrigerator Screw
100	799344 Whirlpool Refrigerator Paint
100	72017 Whirlpool Appliance Touch-Up Paint White
100	350956 Whirlpool Spray Assembly
100	Almond (Uncut)
100	WP72107 Whirlpool Touchup
100	Leveler (Thinner)
100	Golden Harvest
100	72032 Whirlpool Touch Up Paint Black
100	285006 Whirlpool Spray
100	4317943 Whirlpool Refrigerator Ice Maker Assembly
100	212643 Whirlpool Refrigerator Permagum Sealer
100	350942 Whirlpool Spray Paint
100	511873 Whirlpool Refrigerator Paint
100	606755 Whirlpool Refrigerator Bag
100	833938 Whirlpool Refrigerator Terminal
100	876370 Whirlpool Refrigerator Insulation
100	WP503695 Whirlpool Refrigerator Sealer
100	WP505587 Whirlpool Refrigerator Sealer
100	TAPE, VINYL (3/4 X 108“)
100	CEMENT, ALUMILASTIC (1 1/4 OZ.)
100	WPL 799833
100	WPL 876029
100	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
100	WP542638 Whirlpool Refrigerator Grease
100	350930 Whirlpool White Spray Paint
100	Enamel, Black (1 Qt. Uncut)
100	Golden Harvest (Uncut)
