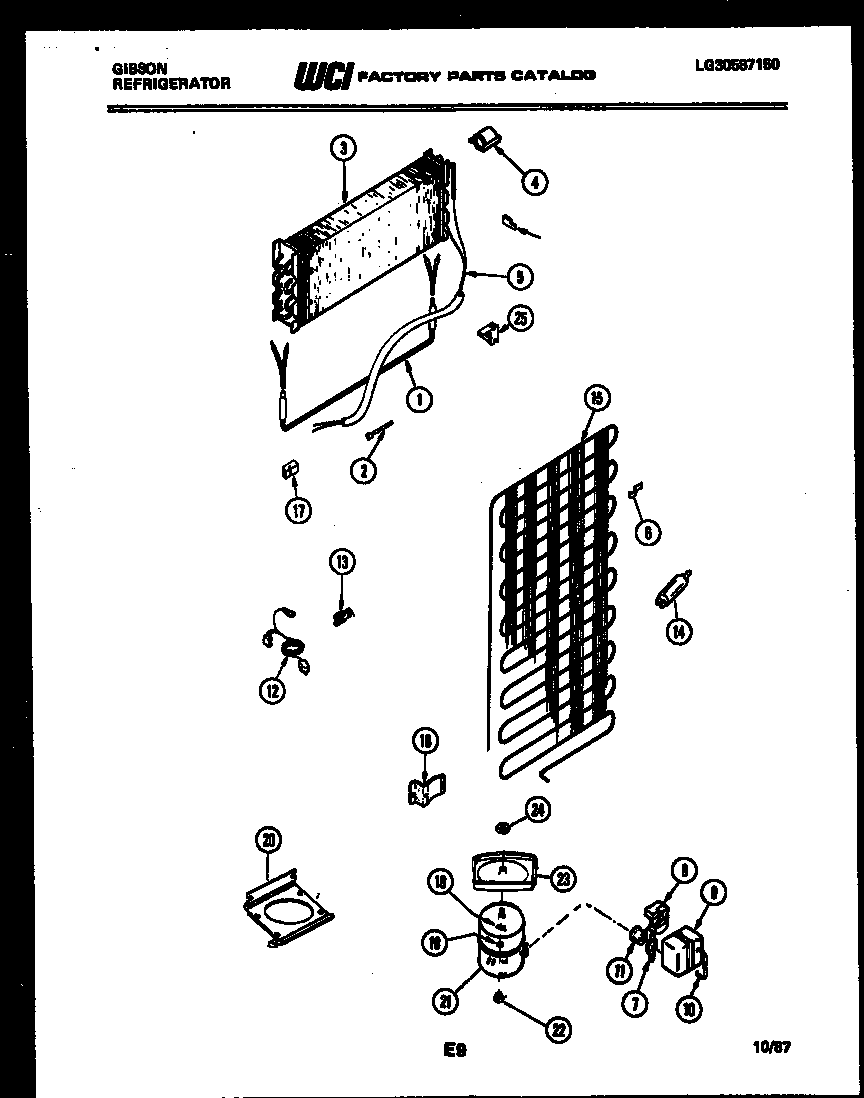

RT14F2WS2B 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*73286HOT TUBE REPAIR KIT (NON-ILLUSTRATED)
1WCI G162432-02
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
3WCI G164563
45303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
5WCI G149013
6WCI G101747
6A5308000039 Frigidaire Refrigerator Screw
7RETAINER, OVERLOAD
8WCI G182225-18
105303006412 Frigidaire Refrigerator Cover Mounting Strap
11WCI G188877
12CORD, SERVICE
135303001199 Frigidaire Refrigerator Wiring Harness Clamp
145303305677 Frigidaire Replacement Filter Dryer Filters
15WCI G178225
16BRACKET-CONDENSER MOUNTING (4)
17BLOCK, LEFT SIDE
18WASHER, COMPRESSOR MOUNTING (4)
19CLIP, COMPRESSOR MOUNTING (4)
20WCI G162822
21WCI G190374
22218513300 Frigidaire Refrigerator Compressor Mount Grommet
23WCI G184716
24NUT, LOCK
25BLOCK, EVAPORATOR, RH
25A218843801 Frigidaire Refrigerator Screw
26PLUG, EVAPORATOR INSULATION BLOCK, R H
