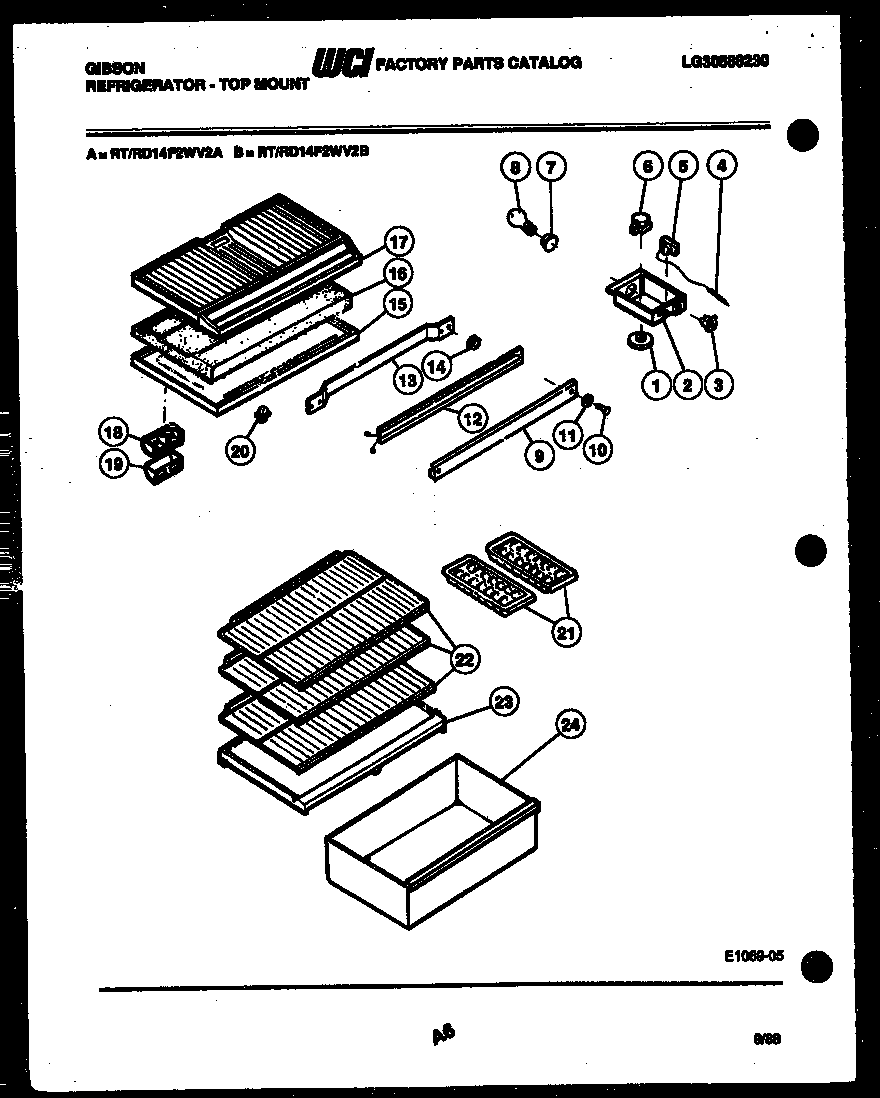

RT14F2WV2A 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	KNOB-TEMP CONTROL
2	WCI G174765-03
2B	5304455650 Frigidaire Refrigerator Screw
2A	LABEL-CONTROL BOX (NON-ILLUSTRATED)
3	WCI G178402-05
4	TUBE
5A	WCI G107080
5	CONTROL-COLD
6A	5304455649 Frigidaire Refrigerator Screw
6	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
7	SOCKET LIGHT
8	316538904 Frigidaire Oven Lamp Light
9	WCI G174520-08
9	MULLION
9	WCI G174520-09
9	WCI G174520-10
9	WCI G174520-11
10	SCREW, BRACKET MOUNTING (4)
11	WASHER (2)
12	WCI G187921
13	CLAMP, MULLION MOUNTING
14	SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
15	TOP-REFRIGERATOR
15A	SCREW (5)
16	DIVIDER-COMPARTMENT
16A	HARNESS, WIRING
17	BOTTOM ( FREEZER )
18	DEFLECTOR AIR
19	WCI G162178
20	5309918806 Frigidaire Refrigerator Light Switch Door
21	215667501 Frigidaire Refrigerator Ice Tray Primary
22	SHELF (2)
23	COVER-CRISPER
24	WCI G162973-31
