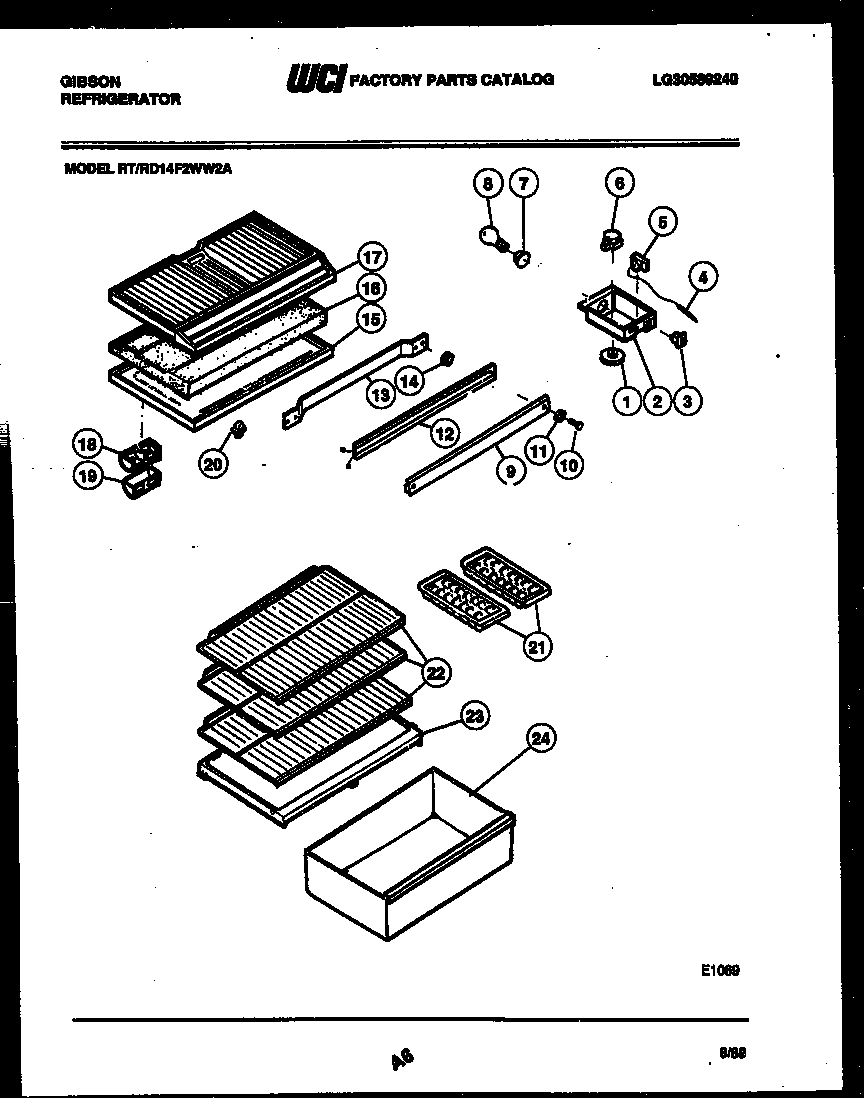

RT14F2WW2A 04 – SHELVES AND SUPPORTS

RT14F2WW2A 04 – SHELVES AND SUPPORTS

Written by

in

RT14F2WW2A 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1KNOB-TEMP CONTROL
2ALABEL-CONTROL BOX (NON-ILLUSTRATED)
2B5304455650 Frigidaire Refrigerator Screw
2WCI G174765-03
3WCI G178402-05
4TUBE
5AWCI G107080
5CONTROL-COLD
6A5304455649 Frigidaire Refrigerator Screw
6215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
7SOCKET LIGHT
8316538904 Frigidaire Oven Lamp Light
9WCI 3916133
9WCI 3916135
9WCI 3916132
9WCI 3916134
9WCI 3200465
10SCREW, BRACKET MOUNTING (4)
11WASHER (2)
12WCI G187921
13CLAMP, MULLION MOUNTING
14SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
15TOP-REFRIGERATOR
15ASCREW (5)
16AHARNESS, WIRING
16DIVIDER-COMPARTMENT
17BOTTOM ( FREEZER )
18DEFLECTOR AIR
19WCI G162178
205309918806 Frigidaire Refrigerator Light Switch Door
21215667501 Frigidaire Refrigerator Ice Tray Primary
22SHELF (2)
23COVER-CRISPER
24WCI G162973-31
