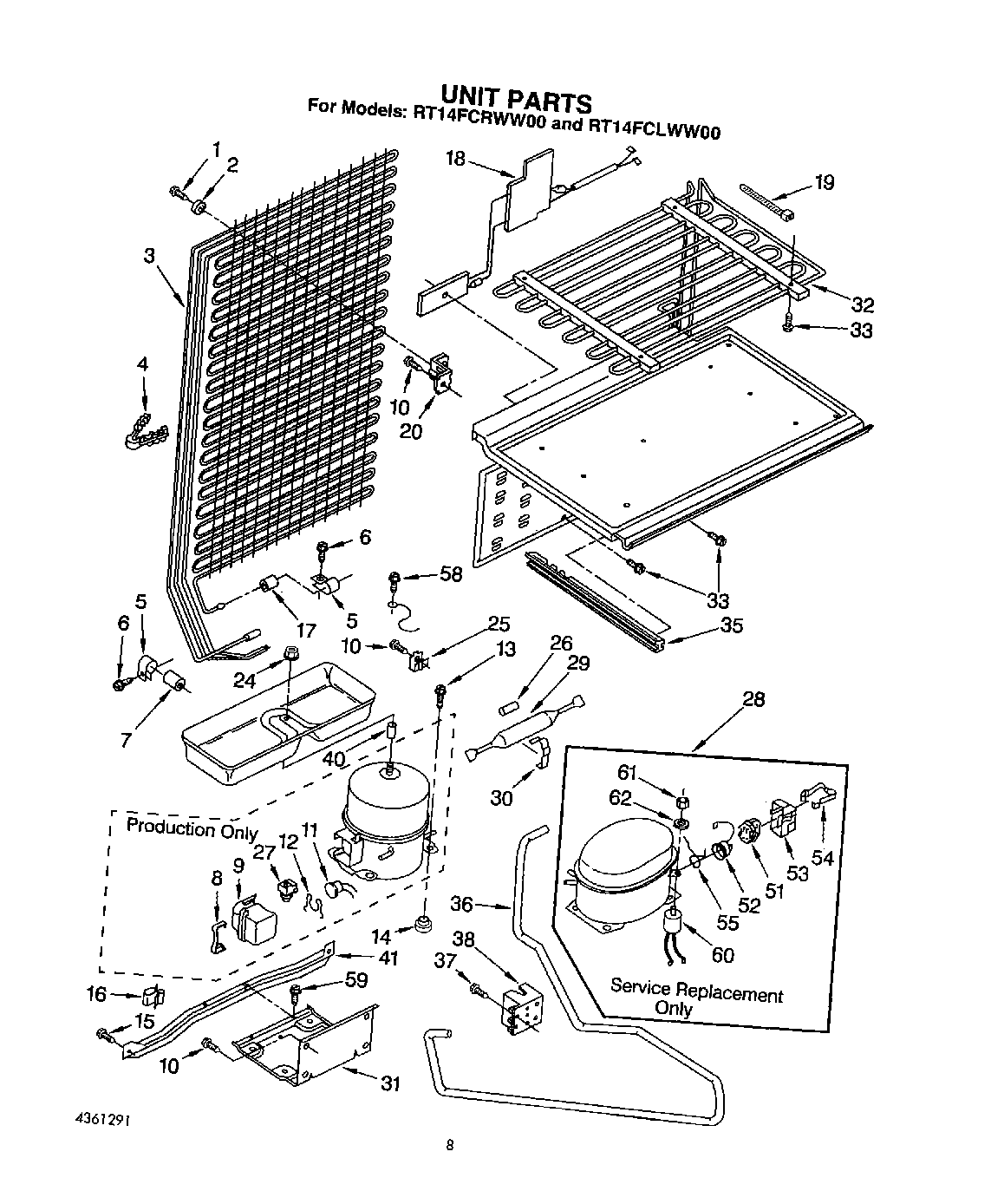

RT14FCLWL00 05 – UNIT

Products

Position	Product
1	Screw, 8 x 7/8
2	Bumper, Rubber
3	Condenser & Precooler Assembly
4	Clip, Tube
5	Clamp Tube
6	WPW10141625 Whirlpool Refrigerator Screw Assembly
7	Dampener
8	case spring
9	relay case
11	Overload (Used W/Original Compressor)
12	Spring, Overload
14	876811 Whirlpool Grommet
15	489340 Whirlpool Refrigerator Screw
16	W10812038 Whirlpool Refrigerator Clip
17	Dampener
18	Defrost Heater
19	Strap
20	Condenser Bracket (Top)
24	285002 Whirlpool Nut
25	4386951 Whirlpool Refrigerator Clip
26	Restrictor Sleeve
27	Relay
28	Compressor (Includes Items 43, 44, 45, 46, 47, 52, 53, & 55) (Also Order 482801 Tray Mounting Kit &
29	W10843121 Whirlpool Refrigerator Tube
30	Clamp, Dryer
31	Unit Mounting Plate
32	Evaporator Assembly
33	Screw, 8-15 x 1/2 (4)
35	Gasket, Evaporator Lower R.S.
35	Gasket, Evaporator Lower L.S.
36	Heat Exchanger
37	WP489478 Whirlpool Refrigerator Screw
38	Box, Junction
39	Tray, Evaporator
40	Spacer
41	Unit Mounting Rail
51	WP2262181 Whirlpool Refrigerator Start Relay
52	Overload
53	Cover
54	Strap
55	Overload Spring
58	303776 Whirlpool Dishwasher Screw
59	WP965173 Whirlpool Dishwasher Screw
60	WPW10662129 Whirlpool Refrigerator Run Capacitor
61	Nut
62	978030 Whirlpool Refrigerator Valve
62	Washer
62	VALVE, ACCESS (5/8“)
62	978026 Whirlpool Refrigerator Primary Valve
62	VALVE, ACCESS (1/2“)
62	876764 Whirlpool Refrigerator Primary Valve
62	Start Kit
62	978027 Whirlpool Refrigerator Primary Valve
62	WP978025 Whirlpool Refrigerator Valve
