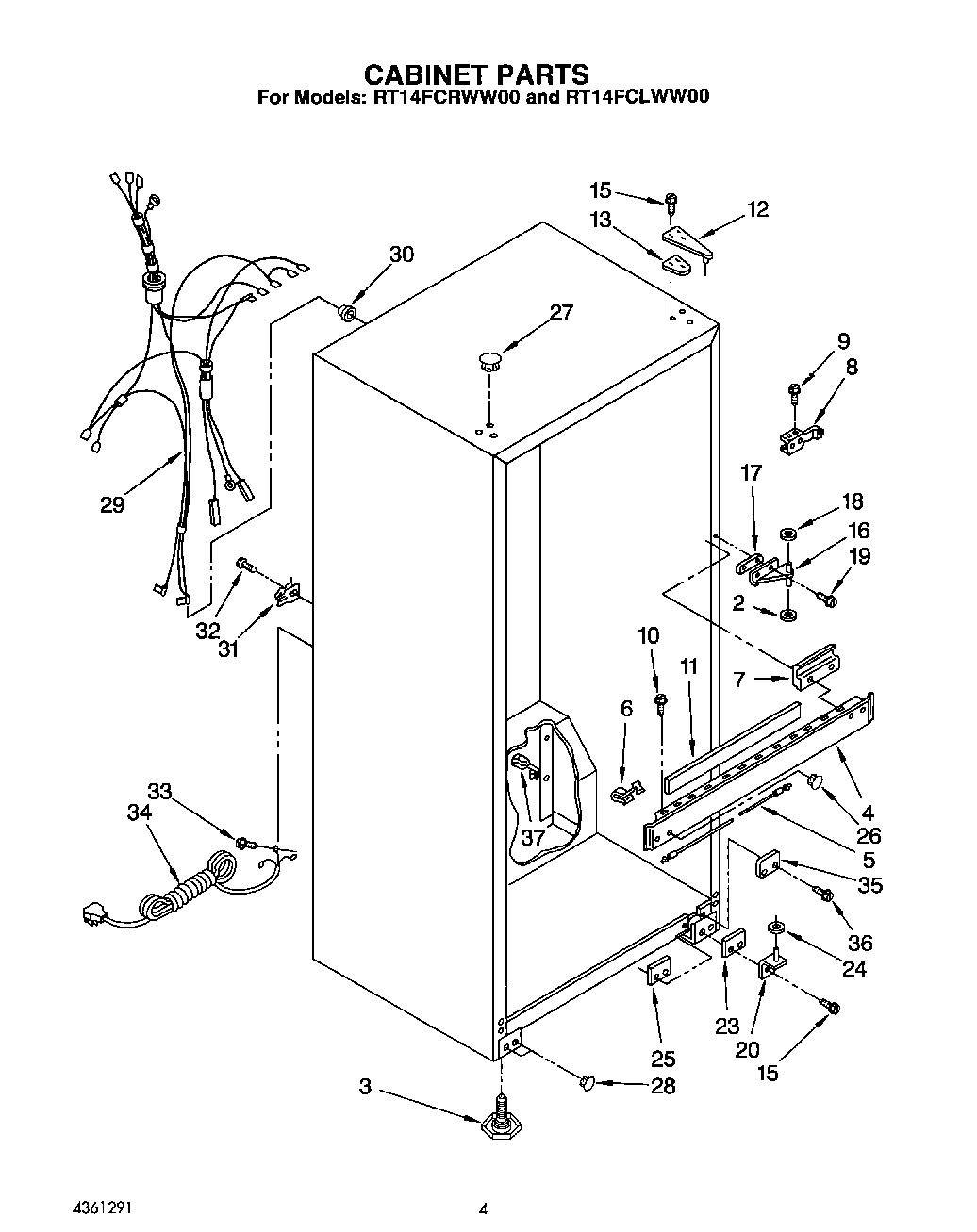

RT14FCRWL00 03 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	WP488296 Whirlpool Washer Refrigerator
3	W11117769 Whirlpool Refrigerator Leveler
4	Center Rail (Almond)
4	Center Rail (White)
5	Heater, Mullion
6	Breaker, Trim Clip
7	Center, Rail Shim (2)
8	Bracket, Center Rail (2)
10	WP488729 Whirlpool Refrigerator Door Screw
11	Seal Strip, Center Rail
12	Shim, Hinge Top
13	Shim, Hinge
15	WP999367 Whirlpool Refrigerator Screw
16	Hinge, Center
17	Shim, Hinge Center
18	WP487802 Whirlpool Refrigerator Washer
19	Screw
20	Hinge Butt (Bottom L.H.)
23	Shim, Bottom Hinge
24	WP487576 Whirlpool Washer
25	Tap Plate, Bottom
26	Hole Plug (White)
26	Hole Plug (Almond)
27	Hole Plug (2) (Almond)
27	Hole Plug (2) (White)
28	WPL 941416
28	Hole, Plug (2) (Almond)
29	Cabinet, Wiring Assembly
30	Grommet, Wiring
31	Clamp
32	WP489478 Whirlpool Refrigerator Screw
33	Screw, 8-32 x 3/8
34	Cord, Service
35	Tube, Rail Cover (White)
35	Tube, Rail Cover (Almond)
36	Screw
37	Bushing, Strain Relief
