RT14HDXDN01 02 – DOOR

RT14HDXDN01 02 – DOOR

Written by

in

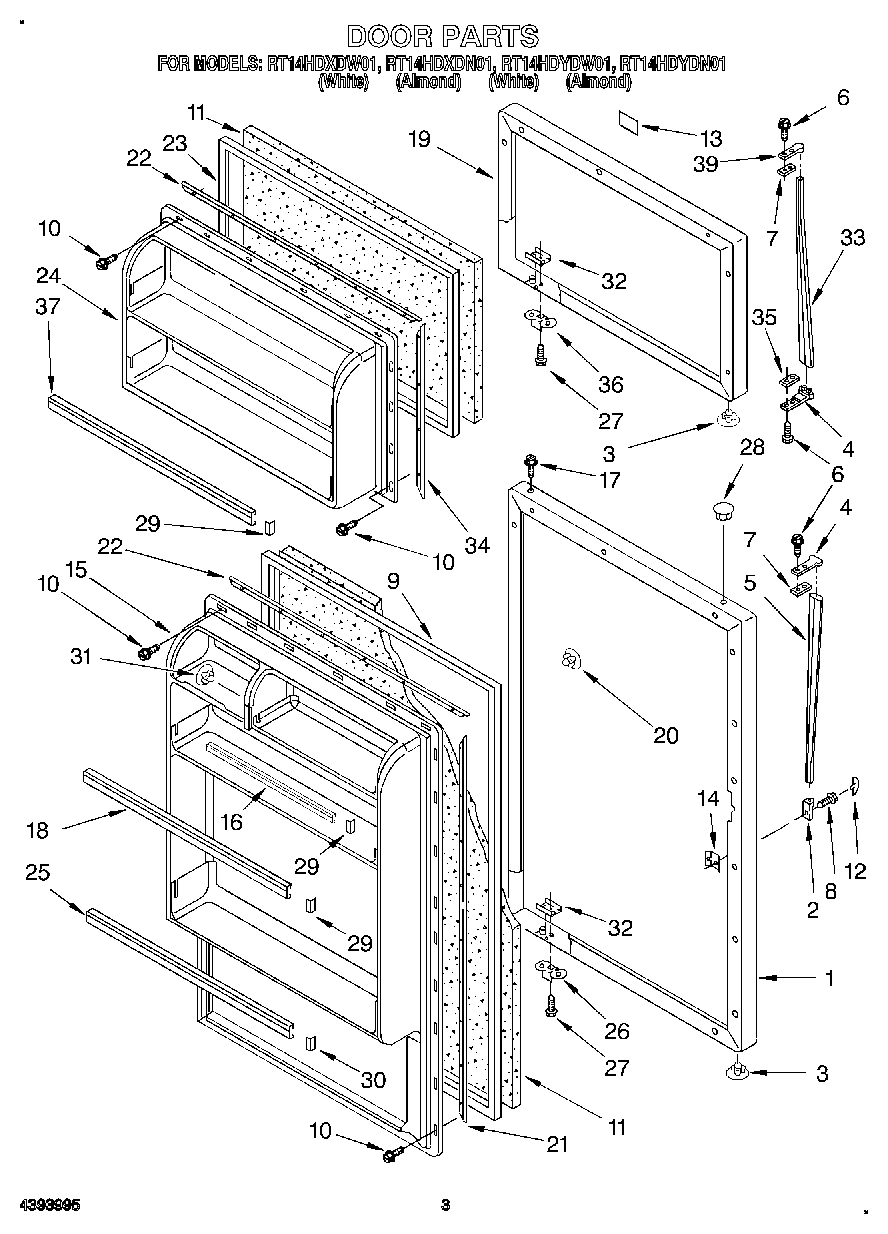

RT14HDXDN01 02 – DOOR

Products

PositionProduct
1Refrigerator Door Panel (Also Order Item 11) (White)
1Refrigerator Door Panel (Also Order Item 11) (Almond)
3Hole Plug (2) (Almond)
3Hole Plug (2)
4819342 Whirlpool Refrigerator Endcap Kit
5Handle, Center
6WP488920 Whirlpool Refrigerator Screw
7Shim, Handle
8WP488729 Whirlpool Refrigerator Door Screw
92188448A Whirlpool Refrigerator Door Gasket Seal
10WP489442 Whirlpool Refrigerator Screw
11WPL 876029
12WP1101634 Whirlpool Refrigerator Cover
13Nameplate
14WP939101 Whirlpool Refrigerator Plate
15Panel, Interior Door (Refrigerator)
17WP8281206 Whirlpool Refrigerator Screw
19Freezer Door Panel (Also Order Item 11) (White)
19Freezer Door Panel (Also Order Item 11) (Almond)
20Hole Plug, Handle (Almond)
20WP2189000 Whirlpool Refrigerator Handle Plug
21Gasket, Retainer
22Retainer, Gasket
232188462A Whirlpool Freezer Door Gasket
24Interior Door Panel (Freezer)
25Trim, Door Shelf
26Bracket, Door Stop
27WP488921 Whirlpool Refrigerator Screw
28WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
28Hole Plug (Almond)
29ENDCAP-TRM
30WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31Hole Plug
32W10833053 Whirlpool Refrigerator Plate
33Handle, F.C. (Black)
34Retainer, Gasket
35Spa
36Bracket, Door Stop
37WP2163629 Whirlpool Refrigerator Door Trim
