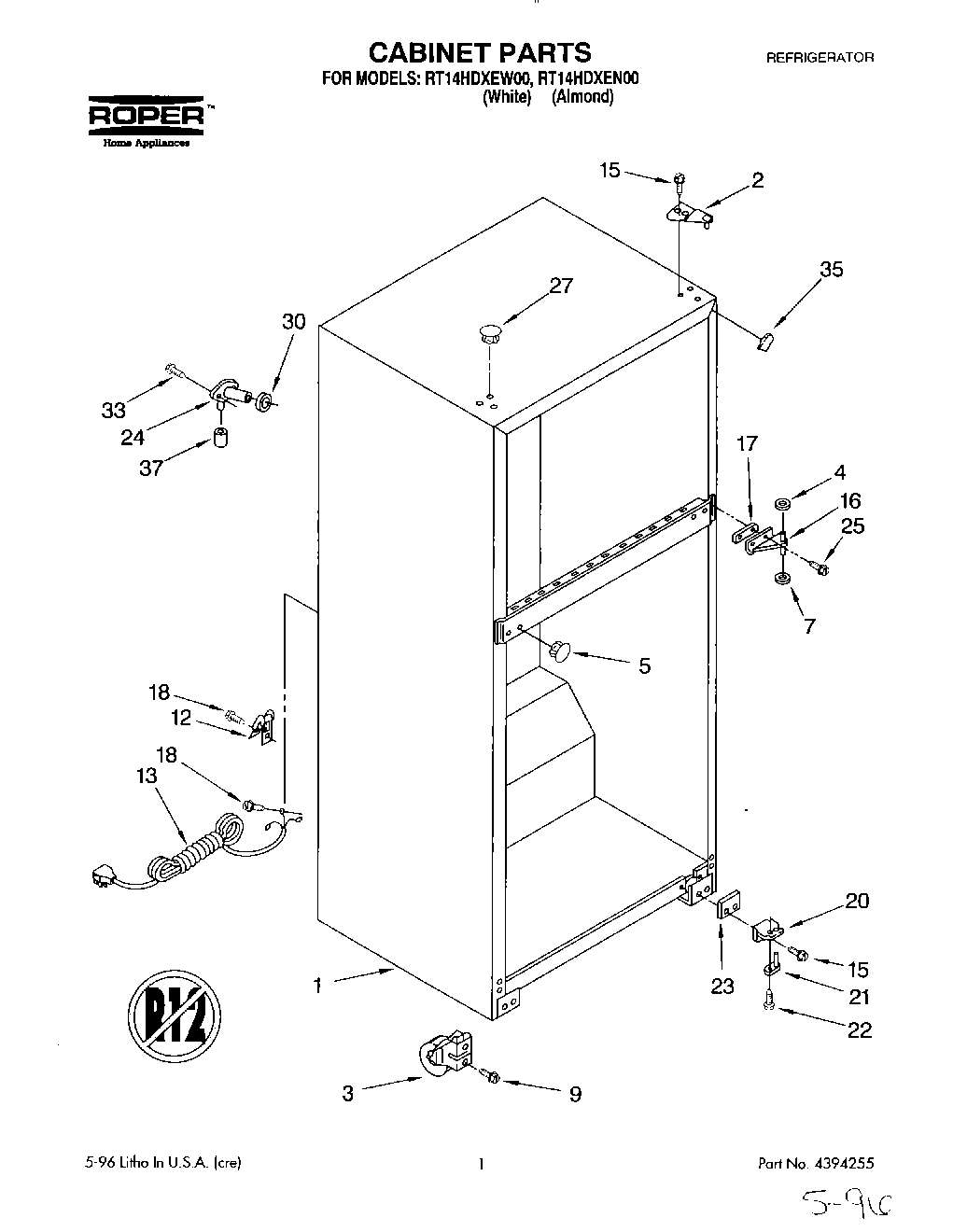

RT14HDXEN00 01 – CABINET

RT14HDXEN00 01 – CABINET

Written by

in

RT14HDXEN00 01 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2WP2189412 Whirlpool Refrigerator Door Hinge
3Roller-Front
4WP487576 Whirlpool Washer
5Hole Plug (4) (White)
7WP487802 Whirlpool Refrigerator Washer
9Screw
12549193 Whirlpool Refrigerator Power Clamp
13Cord, Service
16WP2166037 Whirlpool Refrigerator Door Hinge
172166043 Whirlpool Refrigerator Shim
18WP489478 Whirlpool Refrigerator Screw
20WP2325482 Whirlpool Bottom Hinge
21Hinge-Pin Bott.
22Screw 10-32 x 5/16
23WP2201567 Whirlpool Hinge Shim
24WP2196157 Whirlpool Fill Tube
25WP999367 Whirlpool Refrigerator Screw
27Hole Plug (6) (Almond)
27WP2151652 Whirlpool Refrigerator Button Plug
30WP1106508 Whirlpool Refrigerator Gasket
35W10859322 Whirlpool Refrigerator Filler
35Corner Filler (Almond)
37WP487996 Whirlpool Refrigerator Cap Tube
