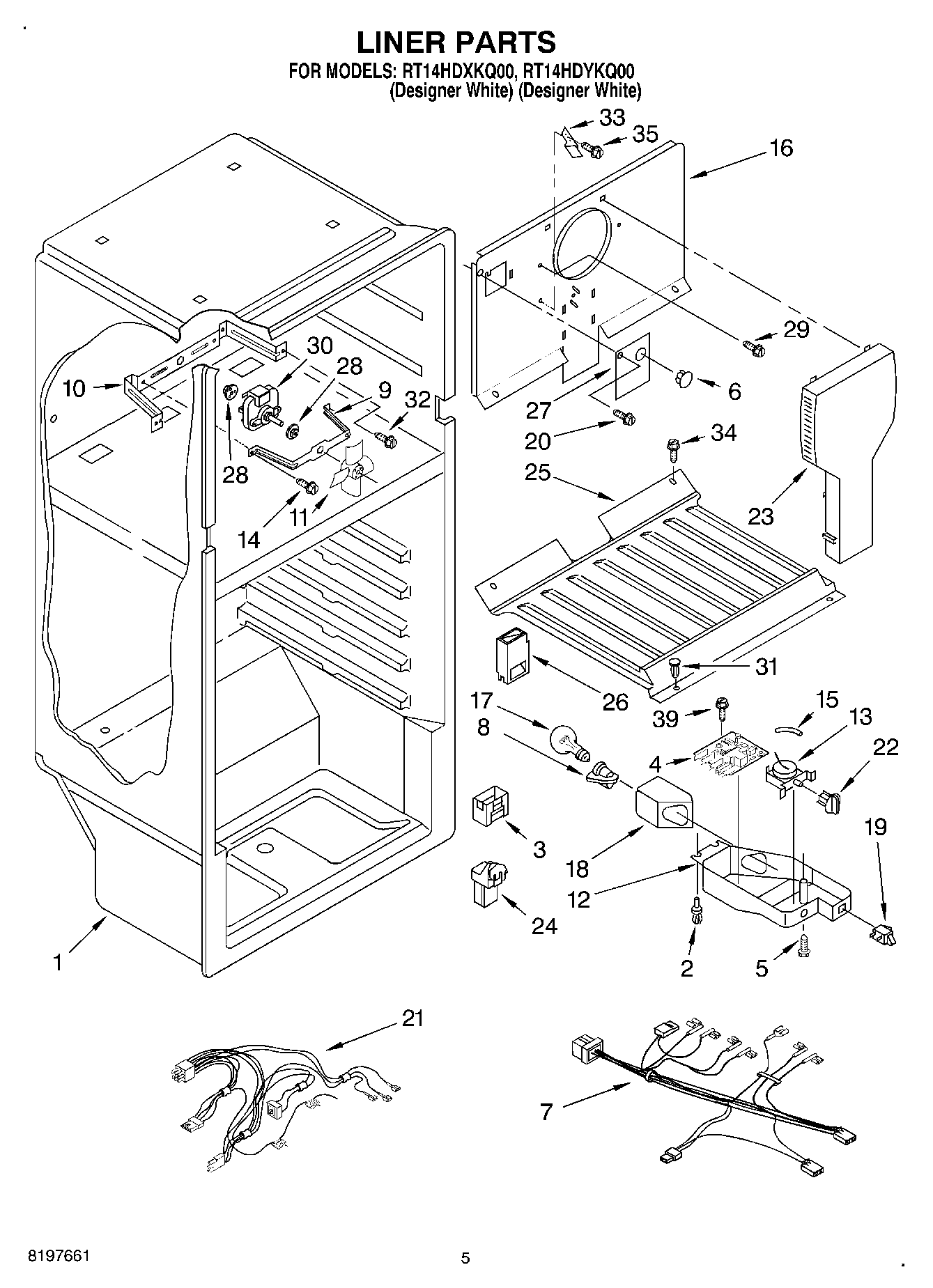

RT14HDXKQ00 03 – LINER, OPTIONAL

RT14HDXKQ00 03 – LINER, OPTIONAL

Written by

in

RT14HDXKQ00 03 – LINER, OPTIONAL

Products

PositionProduct
1Liner (Not A Serviceable Part)
2939962 Whirlpool Refrigerator Rivet
3Cover, Air Diffuser
44388931 Whirlpool Defrost Timer
5WP489174 Whirlpool Refrigerator Screw
6WP941839 Whirlpool Refrigerator Button Plug
72265930 Whirlpool Refrigerator Wire Harness
84387478 Whirlpool Refrigerator Light Socket
9WPW10180172 Whirlpool Refrigerator Bracket
10Fan Mounting Bracket
11Fan Blade
122215210 Whirlpool Refrigerator Control Box
13WPW10567140 Whirlpool Refrigerator Thermostat
14WP489399 Whirlpool Refrigerator Screw
15WP2196003 Whirlpool Refrigerator Bar Riser
16Cover, Evaporator
17RANGE ONLY 40W 120V APPL BULB
18W11034434 Whirlpool Refrigerator Light Lens
19W11384469 Whirlpool Door Switch
20WP489442 Whirlpool Refrigerator Screw
212319442 Whirlpool Refrigerator Wire Harness
22WP2202885 Whirlpool Refrigerator Thermal Knob
239790408 Whirlpool Refrigerator Air Tower
24Hood And Foil Assembly
25Freezer Floor
26Air Diffuser
27WP2217784 Whirlpool Refrigerator Cover
28WP2264462 Whirlpool Refrigerator Grommet
29WP489478 Whirlpool Refrigerator Screw
30WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
31WP489115 Whirlpool Refrigerator Rivet
332197416 Whirlpool Refrigerator Deflector
34WP489474 Whirlpool Refrigerator Screw
35WP965173 Whirlpool Dishwasher Screw
39Almond (Uncut)
39WP72107 Whirlpool Touchup
39WP505587 Whirlpool Refrigerator Sealer
39WP503695 Whirlpool Refrigerator Sealer
39876370 Whirlpool Refrigerator Insulation
39350930 Whirlpool White Spray Paint
39833938 Whirlpool Refrigerator Terminal
39606755 Whirlpool Refrigerator Bag
3972017 Whirlpool Appliance Touch-Up Paint White
39350956 Whirlpool Spray Assembly
39WP542638 Whirlpool Refrigerator Grease
39350942 Whirlpool Spray Paint
39W11729596 Whirlpool Ice Maker Field Install Kit
39WPL 876029
39285006 Whirlpool Spray
3972032 Whirlpool Touch Up Paint Black
39WPL 799833
39WPL 799832
39212643 Whirlpool Refrigerator Permagum Sealer
39CEMENT, ALUMILASTIC (1 1/4 OZ.)
39WP487353 Whirlpool Refrigerator Screw
39TAPE, VINYL (3/4 X 108“)
39Torx Key
39511873 Whirlpool Refrigerator Paint
39799344 Whirlpool Refrigerator Paint
