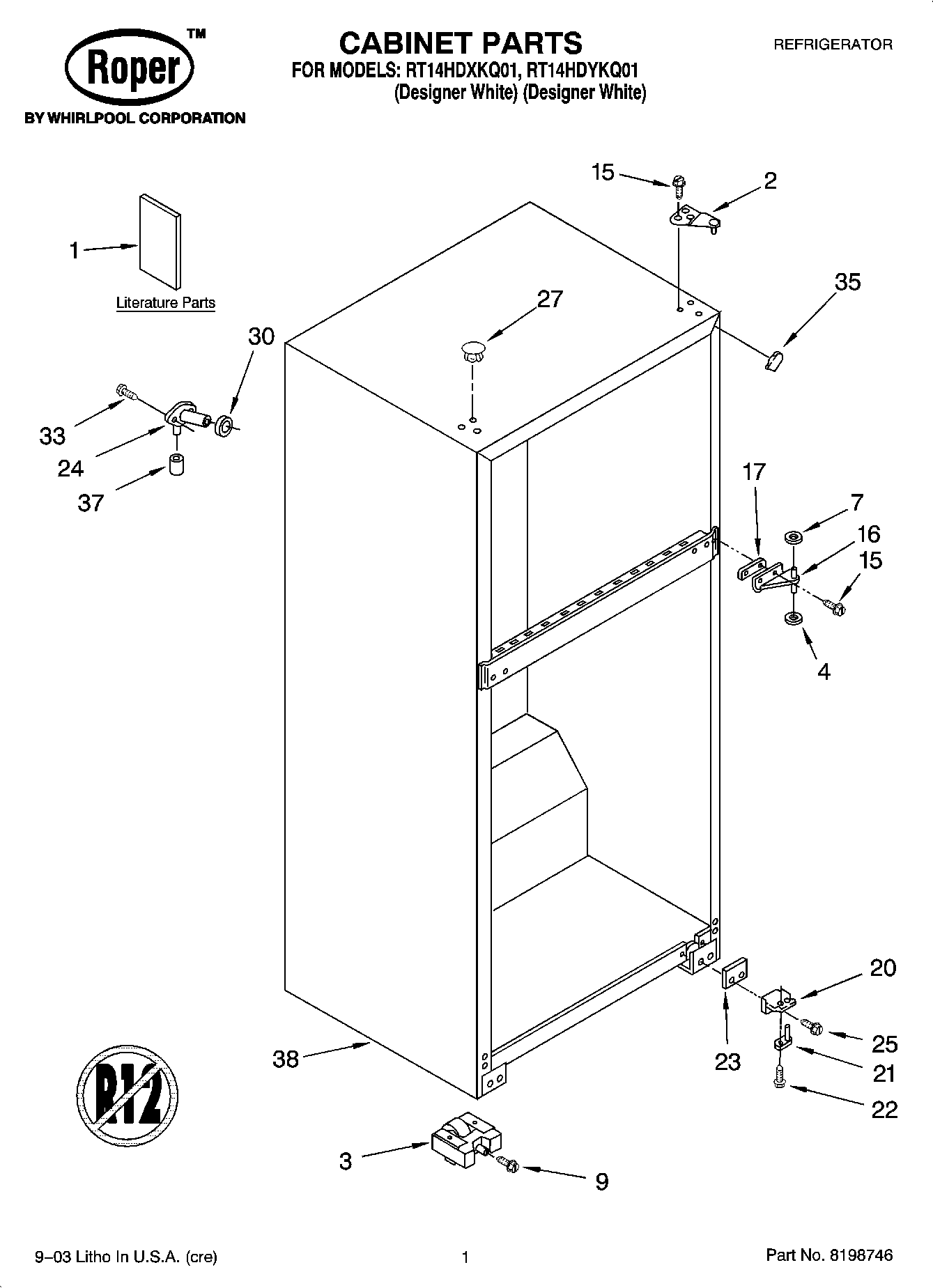

RT14HDXKQ01 01 – CABINET PARTS

RT14HDXKQ01 01 – CABINET PARTS

Written by

in

RT14HDXKQ01 01 – CABINET PARTS

Products

PositionProduct
1LITERATURE PARTS (Use & Care Guide)
1Literature Parts (Energy Label)
1LITERATURE PARTS (Service & Wiring Sheet)
2WP2261963 Whirlpool Refrigerator Door Hinge
32324094 Whirlpool Refrigerator Cabinet Roller
4WP487576 Whirlpool Washer
7WP487802 Whirlpool Refrigerator Washer
92222100 Whirlpool Refrigerator Screw
15WP489497 Whirlpool Screw
16WP2166037 Whirlpool Refrigerator Door Hinge
172166043 Whirlpool Refrigerator Shim
20WP2325482 Whirlpool Bottom Hinge
21Hinge-Pin Bott.
22WP3428970 Whirlpool Refrigerator Screw
23WP2201567 Whirlpool Hinge Shim
24WP2196157 Whirlpool Fill Tube
25WP489442 Whirlpool Refrigerator Screw
27WP2151652 Whirlpool Refrigerator Button Plug
30WP1106508 Whirlpool Refrigerator Gasket
35W10859322 Whirlpool Refrigerator Filler
37WP487996 Whirlpool Refrigerator Cap Tube
38Cabinet (Not A Serviceable Part)
