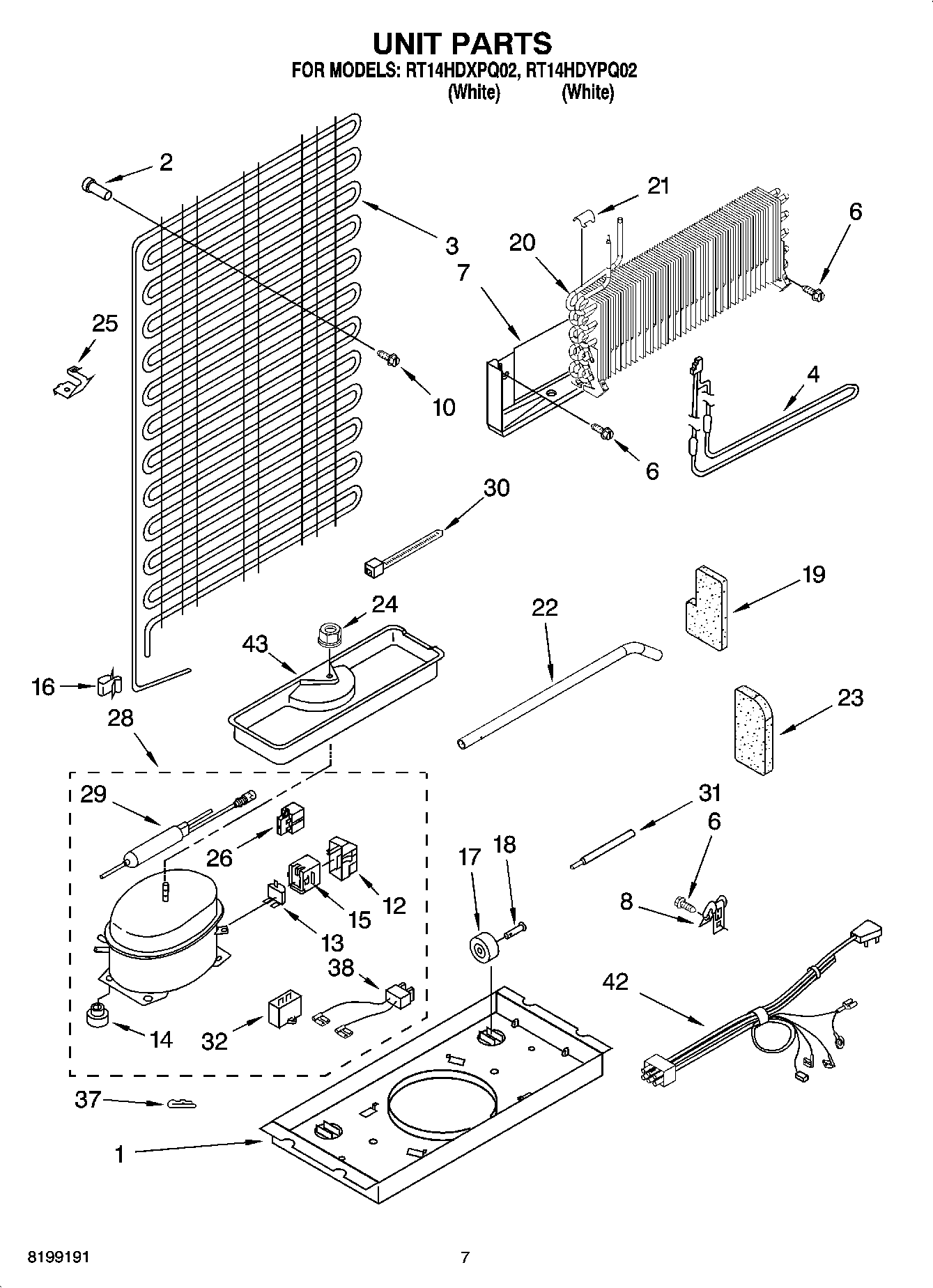

RT14HDXPQ02 04 – UNIT PARTSadmin2025-04-26T12:51:05+00:00RT14HDXPQ02 04 – UNIT PARTS ProductsPositionProduct1WPW10222451 Whirlpool Refrigerator Support22258452 Whirlpool Refrigerator Spacer3WP2252730 Whirlpool Refrigerator Condenser4WP2263749 Whirlpool Defrost Heater Assembly6WP489442 Whirlpool Refrigerator Screw7Heat Shield8549193 Whirlpool Refrigerator Power Clamp10Screw12WP2162358 Whirlpool Refrigerator Terminal Cover13WP2214067 Whirlpool Refrigerator Overload Relay14WP4387558 Whirlpool Refrigerator Compressor Grommet14WP2163786 Whirlpool Refrigerator Grommet15WP2262181 Whirlpool Refrigerator Start Relay16W10812038 Whirlpool Refrigerator Clip17WPW10475495 Whirlpool Roller Assembly18W11594405 Whirlpool Axle198201619 Whirlpool Refrigerator Support Assembly20WP2263919 Whirlpool Refrigerator Evaporator219791833 Whirlpool Refrigerator Clip222264423 Whirlpool Tube24285002 Whirlpool Nut254386951 Whirlpool Refrigerator Clip26W10920279 Whirlpool Refrigerator Start Relay28W10309988 Whirlpool Refrigerator Compressor29W10843121 Whirlpool Refrigerator Tube30WPW10339879 Whirlpool Wire Tie31W11661102 Whirlpool Tube32WPW10662129 Whirlpool Refrigerator Run Capacitor37Clip, Compressor38WP2172890 Whirlpool Refrigerator Wire42Wire Assy. Unit43Tray, Evaporator43Following Parts Not Illustrated and Optional Parts Not Included43REFRIGERANT CHARGE 3.75 Ozs. (R134A)43978027 Whirlpool Refrigerator Primary Valve43VALVE, ACCESS (5/8``)43VALVE, ACCESS (1/2``)43WP978025 Whirlpool Refrigerator Valve43978030 Whirlpool Refrigerator Valve43978026 Whirlpool Refrigerator Primary Valve43876764 Whirlpool Refrigerator Primary Valve
