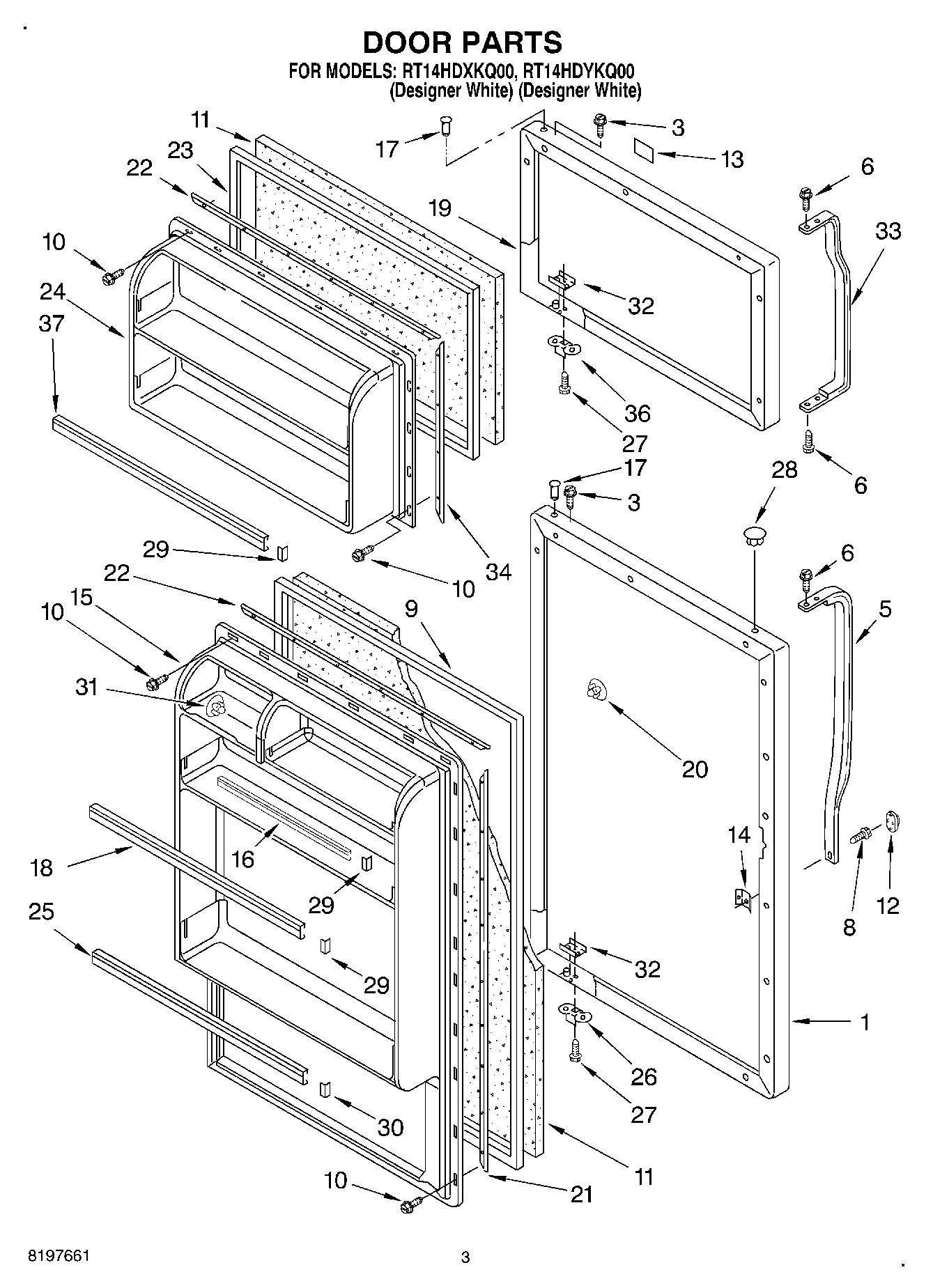

RT14HDYKQ00 02 – DOOR

RT14HDYKQ00 02 – DOOR

Written by

in

RT14HDYKQ00 02 – DOOR

Products

PositionProduct
1Refrigerator Door Panel (Also Order Item 11) (White)
5WP2202807W Whirlpool Handle Door
6WP489357 Whirlpool Recessed Screw
8WP8281146 Whirlpool Screw
92188448A Whirlpool Refrigerator Door Gasket Seal
10WP489442 Whirlpool Refrigerator Screw
11WPL 876029
12WP2202819W Whirlpool Refrigerator Cover
13Nameplate (White)
14WP939101 Whirlpool Refrigerator Plate
15Panel, Interior Door (Refrigerator)
17WP2183003 Whirlpool Thimble
19Freezer Door Panel (Also Order Item 11) (White)
20WP2189000 Whirlpool Refrigerator Handle Plug
21Gasket, Retainer
22Retainer, Gasket
232188462A Whirlpool Freezer Door Gasket
24Interior Door Panel (Freezer)
25Trim, Door (Middle)
26Bracket, Door Stop
27WP488921 Whirlpool Refrigerator Screw
28WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29ENDCAP-TRM
30WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31Hole Plug
32W10833053 Whirlpool Refrigerator Plate
33HANDLE
34Retainer, Gasket
36Bracket, Door Stop
37WP2163629 Whirlpool Refrigerator Door Trim
