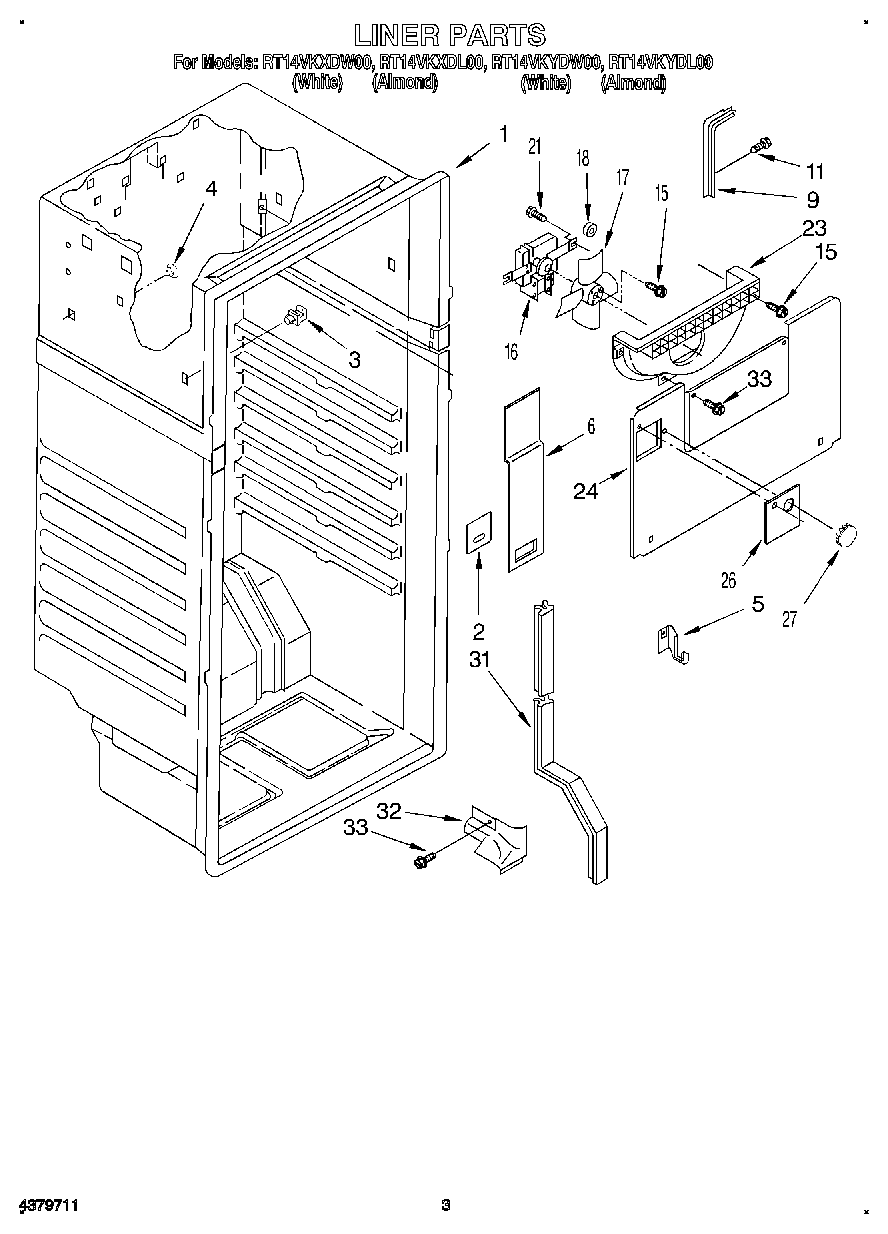

RT14VKXDW00 02 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Shield, Wiring
3	Stud Hook (2)
4	WP941839 Whirlpool Refrigerator Button Plug
5	Evaporator Support (2)
6	Cover, Air Duct
9	Air Deflector Side
11	Screw, 8-32
15	WP489478 Whirlpool Refrigerator Screw
16	482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
17	WP1100938 Whirlpool Refrigerator Fan Blade
18	Grommet
21	Screw (2)
23	Scroll, Fan
24	Evaporator Cover
26	WP2217784 Whirlpool Refrigerator Cover
27	Hole Plug
31	Cover Tube, Rear
32	Cover Tube, Bottom
33	WP488729 Whirlpool Refrigerator Door Screw
