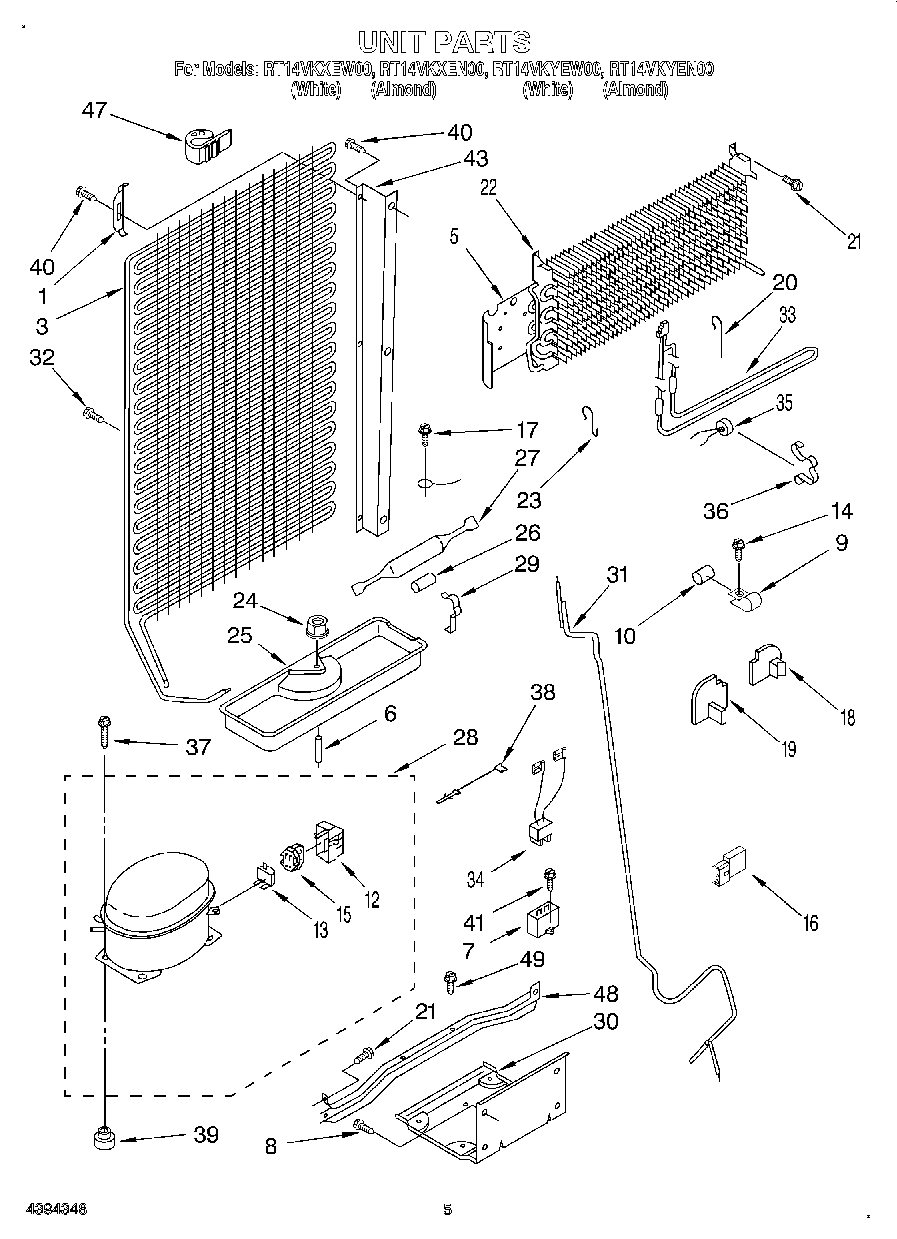

RT14VKXEW00 04 – UNIT

Products

Position	Product
1	Bracket
3	Condenser Assembly
5	Heat Shield
6	Spacer
7	Capacitor
9	Clamp Tube
10	Dampener
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	4387913 Whirlpool Refrigerator Primary Overload Relay
13	OVERLOAD
14	WPW10141625 Whirlpool Refrigerator Screw Assembly
15	Relay (See Overload)
16	WP717253 Whirlpool Dishwasher Connector
17	303776 Whirlpool Dishwasher Screw
18	Side Block, Right Evaporator
19	Side Block, Left Evaporator
20	Clip, Heater (2)
21	489340 Whirlpool Refrigerator Screw
22	Evaporator
23	Support, Heater
24	285002 Whirlpool Nut
25	Tray, Evaporator
26	Restrictor Sleeve
27	W10843121 Whirlpool Refrigerator Tube
28	876765 Whirlpool Primary Mounting Kit Refrigerator
28	Installation Kit
28	W10309989 Whirlpool Refrigerator Compressor
29	Clamp, Dryer
30	Unit Mounting Plate
31	Exchanger, Heat
33	Heater, Defrost
34	WP2172890 Whirlpool Refrigerator Wire
35	WP4387499 Whirlpool Refrigerator Bimetallic Defrost
36	Clamp
38	Overload Wiring (Red)
38	Overload Wiring (White)
39	876811 Whirlpool Grommet
40	Screw
41	W11693756 Whirlpool Screw Assembly
43	Channel, Condenser (Right)
43	Channel, Condenser (Left)
47	Bumper (2)
48	Unit Mounting Rail
49	WP965173 Whirlpool Dishwasher Screw
49	VALVE, ACCESS (5/8“)
49	876764 Whirlpool Refrigerator Primary Valve
49	978027 Whirlpool Refrigerator Primary Valve
49	978026 Whirlpool Refrigerator Primary Valve
49	978030 Whirlpool Refrigerator Valve
49	VALVE, ACCESS (1/2“)
49	WP978025 Whirlpool Refrigerator Valve
