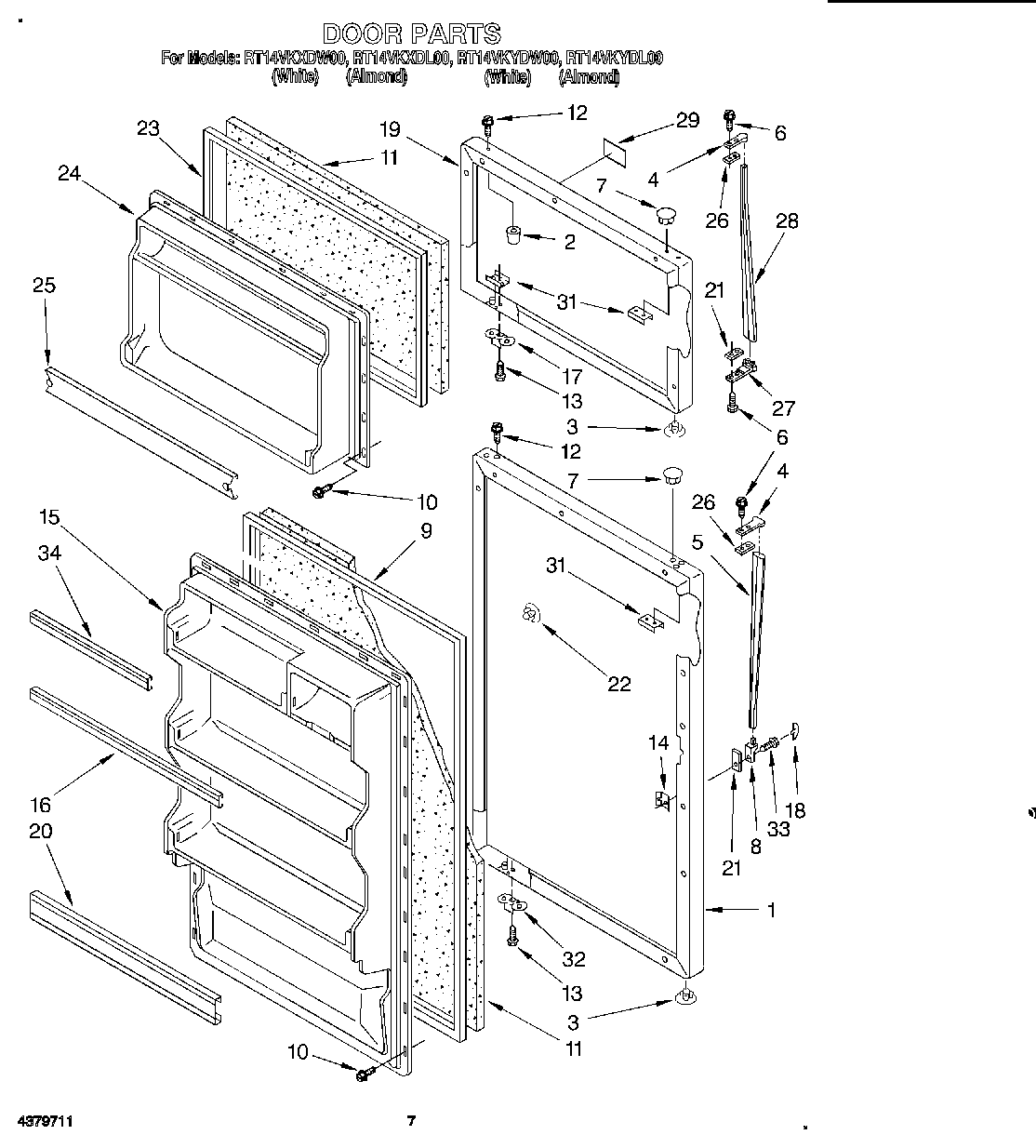

RT14VKYDL00 05 – DOOR, LIT/OPTIONAL

RT14VKYDL00 05 – DOOR, LIT/OPTIONAL

Written by

in

RT14VKYDL00 05 – DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2151307
	WPL LIT2150611
	WPL LIT2173245
1	WPL 944095
1	WPL 944099
2	Cap, Hinge Sleeve (2)
3	Hole Plug (2)
3	Hole Plug (2) (Almond)
4	819342 Whirlpool Refrigerator Endcap Kit
5	Handle, Center
6	WP488920 Whirlpool Refrigerator Screw
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
9	2188445A Whirlpool Refrigerator Door Gasket Seal
10	WP489069 Whirlpool Compactor Screw
12	WP8281206 Whirlpool Refrigerator Screw
13	WP488921 Whirlpool Refrigerator Screw
14	WP939101 Whirlpool Refrigerator Plate
15	Interior Door Panel (Refrigerator)
17	Bracket, Door Stop
18	WP1101634 Whirlpool Refrigerator Cover
19	Freezer Door Panel (Almond)
19	Freezer Door Panel (White)
20	Trim, Door Shelf
21	Spa
22	Hole Plug, Handle (Almond)
22	WP2189000 Whirlpool Refrigerator Handle Plug
23	GASKET-DOR
24	Interior Door Panel (Freezer)
26	Shim, Handle
28	Handle, Center
29	Nameplate
31	W10833053 Whirlpool Refrigerator Plate
32	Bracket, Door Stop
33	WP488729 Whirlpool Refrigerator Door Screw
34	TAPE, VINYL (3/4 X 108“)
34	Door Reversal Instructions
34	Almond (Uncut)
34	WP72107 Whirlpool Touchup
34	799344 Whirlpool Refrigerator Paint
34	350930 Whirlpool White Spray Paint
34	350956 Whirlpool Spray Assembly
34	72017 Whirlpool Appliance Touch-Up Paint White
34	72032 Whirlpool Touch Up Paint Black
34	WP503695 Whirlpool Refrigerator Sealer
34	WP505587 Whirlpool Refrigerator Sealer
34	WP542638 Whirlpool Refrigerator Grease
34	CEMENT, ALUMILASTIC (1 1/4 OZ.)
34	Enamel, Black (1 Qt. Uncut)
34	WPL 799833
34	833938 Whirlpool Refrigerator Terminal
34	TRIM-DOOR
34	606755 Whirlpool Refrigerator Bag
34	285006 Whirlpool Spray
34	511873 Whirlpool Refrigerator Paint
34	WPL 876029
34	350942 Whirlpool Spray Paint
34	212643 Whirlpool Refrigerator Permagum Sealer
34	876370 Whirlpool Refrigerator Insulation
