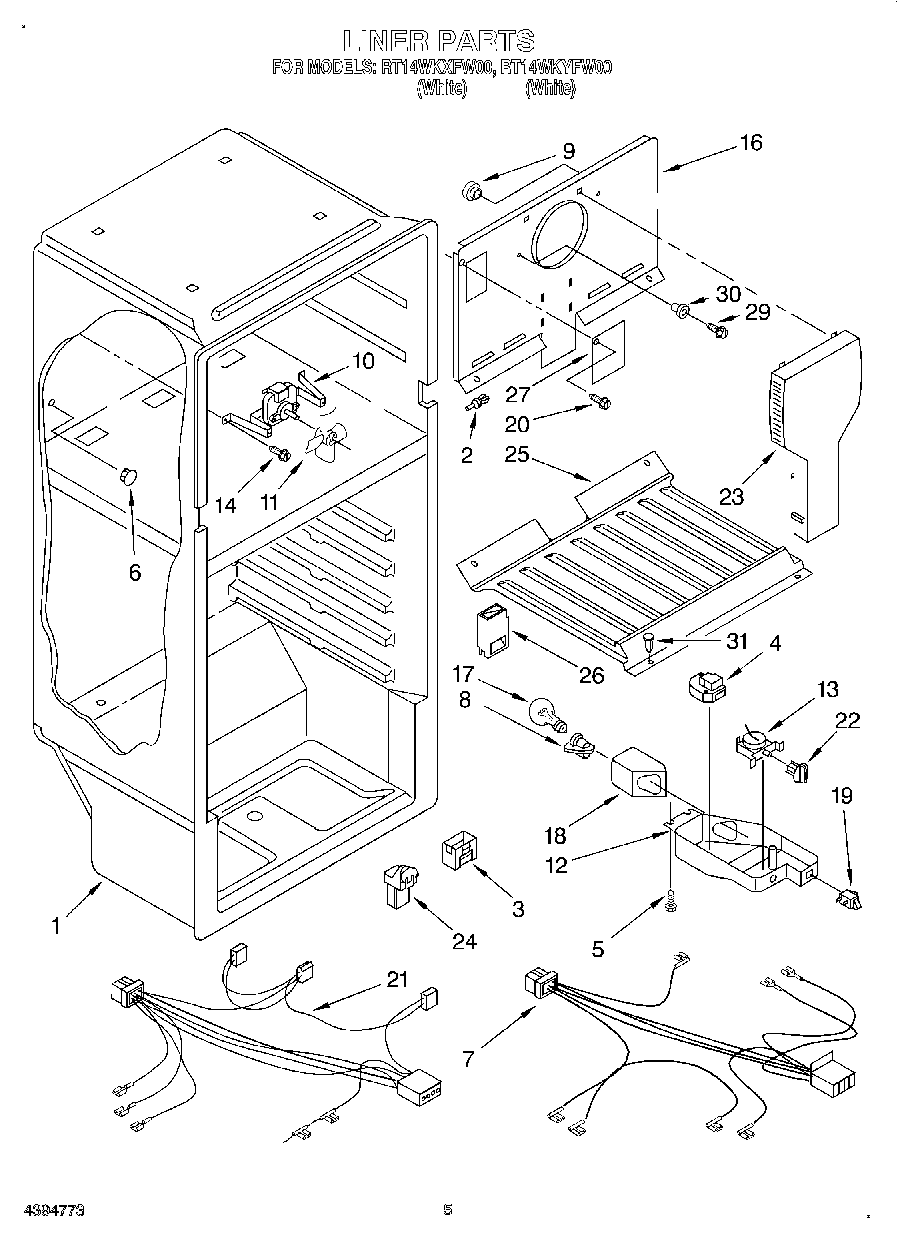

RT14WKYFW00 03 – LINER, LIT/OPTIONAL

RT14WKYFW00 03 – LINER, LIT/OPTIONAL

Written by

in

RT14WKYFW00 03 – LINER, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2196572
	WPL LIT2177035
	WPL LIT2196657
	Torx Key
1	Liner (Not A Serviceable Part)
2	939962 Whirlpool Refrigerator Rivet
3	Cover, Air Diffuser
4	WP2183400 Whirlpool Defrost Timer
5	WP489174 Whirlpool Refrigerator Screw
6	WP941839 Whirlpool Refrigerator Button Plug
7	2176927 Whirlpool Refrigerator Wire Harness
8	4387478 Whirlpool Refrigerator Light Socket
9	Grommet
10	Fan Motor & Bracket Assy.
11	Fan Blade
12	2215213 Whirlpool Refrigerator Control Box
13	WPW10567140 Whirlpool Refrigerator Thermostat
16	Cover-Evaporator
17	RANGE ONLY 40W 120V APPL BULB
18	W11034434 Whirlpool Refrigerator Light Lens
19	W11384469 Whirlpool Door Switch
20	WP489442 Whirlpool Refrigerator Screw
21	Wiring-Freezer
22	WP2202885 Whirlpool Refrigerator Thermal Knob
23	Air Tower
24	Hood & Foil Assembly
25	Floor, Freezer
26	Air Diffuser
27	WP2217784 Whirlpool Refrigerator Cover
29	WP489474 Whirlpool Refrigerator Screw
30	Sleeve
31	Almond (Uncut)
31	350956 Whirlpool Spray Assembly
31	350942 Whirlpool Spray Paint
31	Door Reversal Instructions
31	72017 Whirlpool Appliance Touch-Up Paint White
31	212643 Whirlpool Refrigerator Permagum Sealer
31	799344 Whirlpool Refrigerator Paint
31	WP72107 Whirlpool Touchup
31	511873 Whirlpool Refrigerator Paint
31	606755 Whirlpool Refrigerator Bag
31	350930 Whirlpool White Spray Paint
31	WPL 799833
31	WPL 799832
31	TAPE, VINYL (3/4 X 108“)
31	285006 Whirlpool Spray
31	72032 Whirlpool Touch Up Paint Black
31	WP542638 Whirlpool Refrigerator Grease
31	WP505587 Whirlpool Refrigerator Sealer
31	CEMENT, ALUMILASTIC (1 1/4 OZ.)
31	WP489115 Whirlpool Refrigerator Rivet
31	WP503695 Whirlpool Refrigerator Sealer
31	876370 Whirlpool Refrigerator Insulation
31	833938 Whirlpool Refrigerator Terminal
31	WPL 876029
