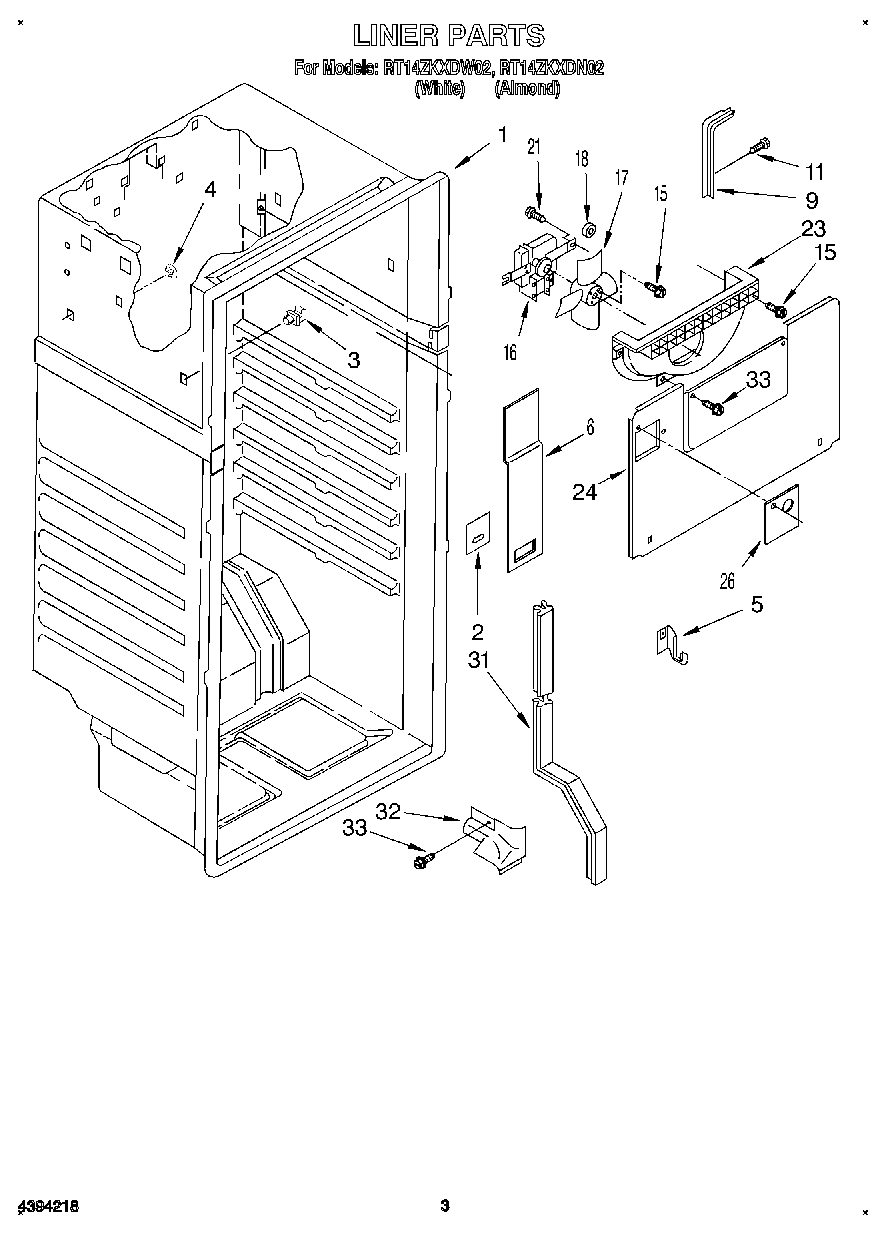

RT14ZKXDN02 02 – LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Shield, Wiring
3Stud Hook (2)
4WP941839 Whirlpool Refrigerator Button Plug
5Evaporator Support (2)
6Cover, Air Duct
9Air Deflector Side
11Screw, 8-32
15Screw
16482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
17WP1100938 Whirlpool Refrigerator Fan Blade
18Grommet
21Screw (2)
23Scroll, Fan
24Evaporator Cover
26WP2217784 Whirlpool Refrigerator Cover
31Cover Tube, Rear
32Cover Tube, Bottom
33WP488729 Whirlpool Refrigerator Door Screw
