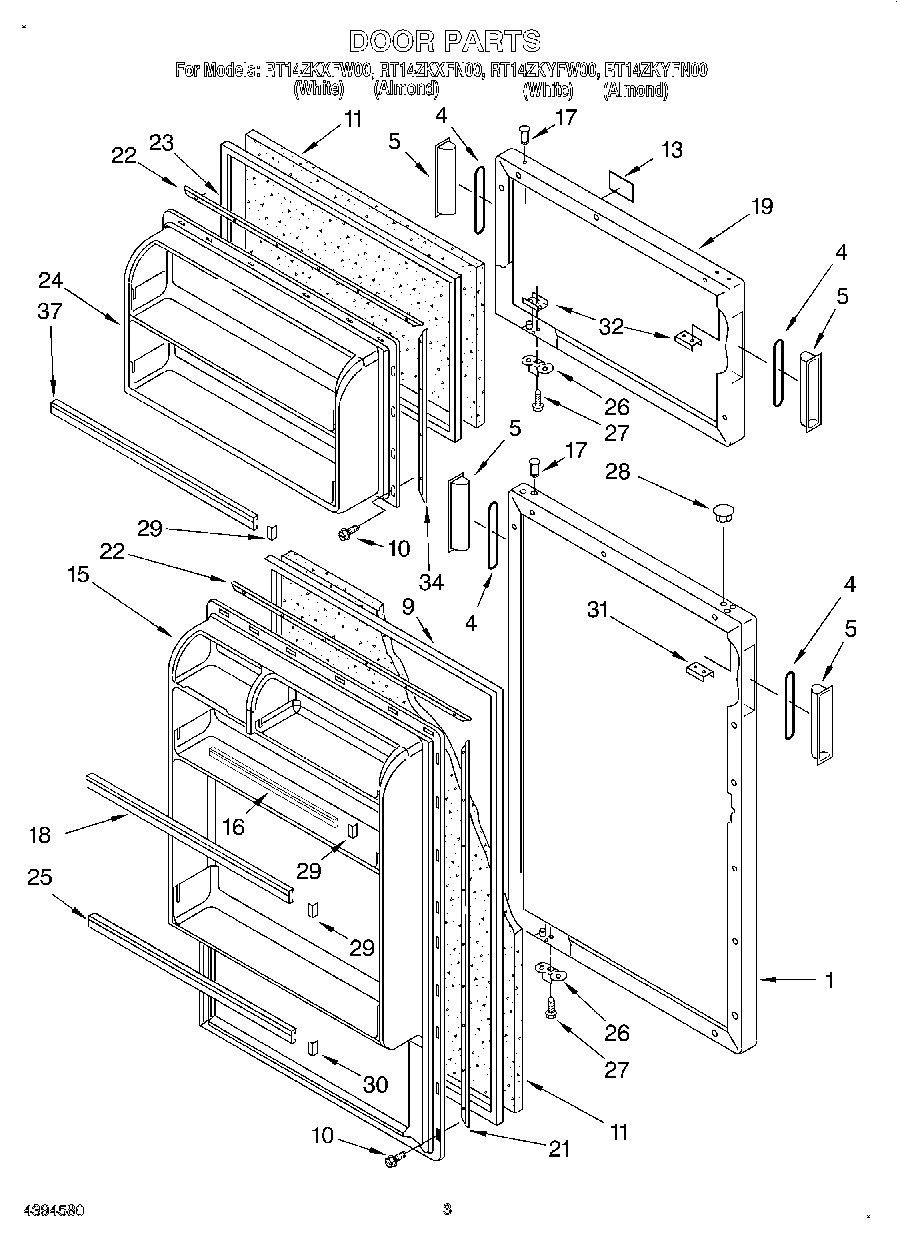

RT14ZKXFN00 02 – DOOR

RT14ZKXFN00 02 – DOOR

Written by

in

RT14ZKXFN00 02 – DOOR

Products

PositionProduct
1Refrigerator Door Panel (Also Order Item 11) (Almond)
1Refrigerator Door Panel (Also Order Item 11) (White)
4Gasket, Handle
5Handle (Almond)
5WP984493 Whirlpool Refrigerator Handle
92188448A Whirlpool Refrigerator Door Gasket Seal
10WP489442 Whirlpool Refrigerator Screw
11WPL 876029
13Nameplate
15Panel, Interior Door (Refrigerator)
17WP2183003 Whirlpool Thimble
19Freezer Door Panel (Also Order Item 11) (White)
19Freezer Door Panel (Also Order Item 11) (Almond)
21Gasket, Retainer
22Retainer, Gasket
232188462A Whirlpool Freezer Door Gasket
24Interior Door Panel (Freezer)
25Trim, Door (Middle)
26Bracket, Door Stop
27WP488921 Whirlpool Refrigerator Screw
28Hole Plug (Almond)
28WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29ENDCAP-TRM
30WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
32W10833053 Whirlpool Refrigerator Plate
34Retainer, Gasket
37WP2163629 Whirlpool Refrigerator Door Trim
