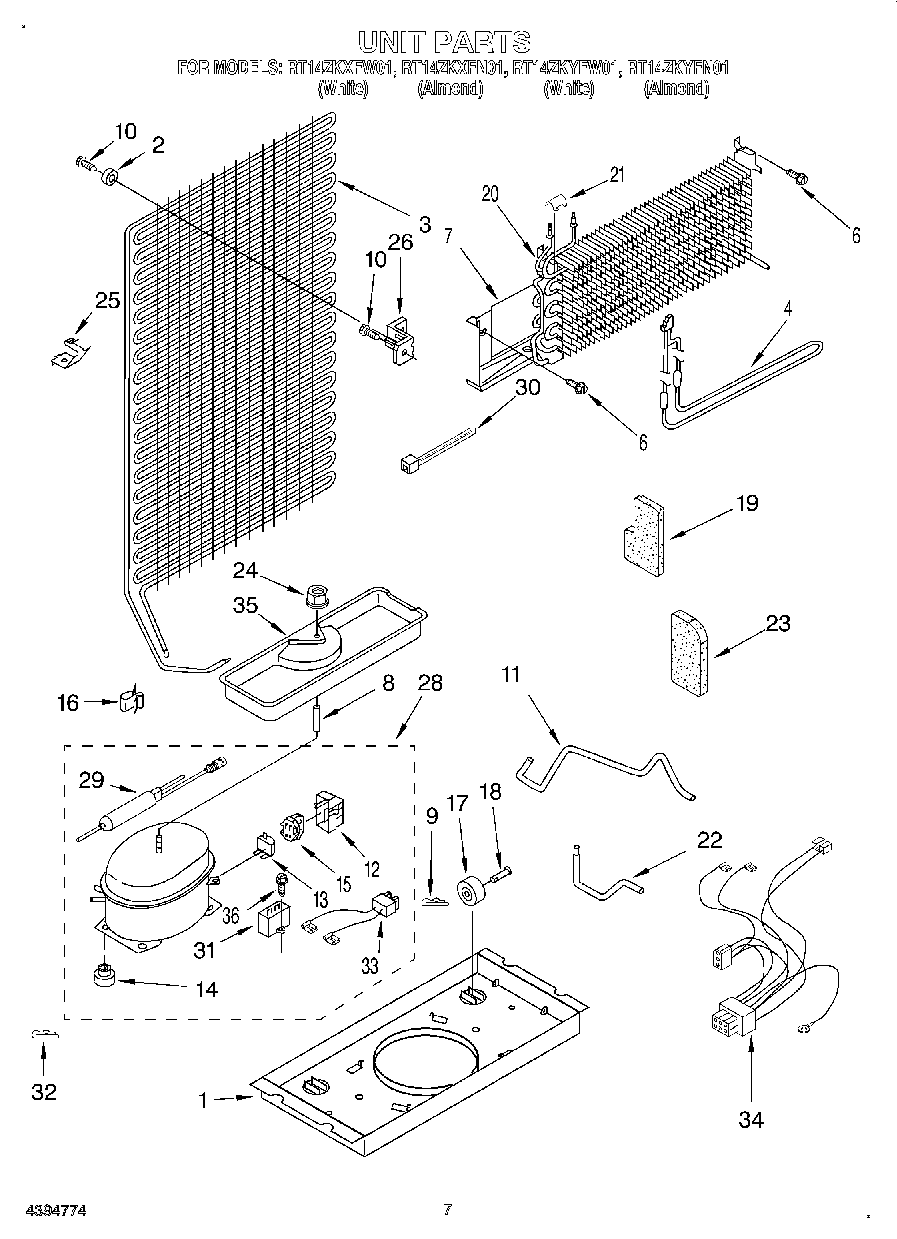

RT14ZKXFN01 04 – UNIT

Products

Position	Product
1	WPW10222451 Whirlpool Refrigerator Support
2	Bumper
3	WP2252730 Whirlpool Refrigerator Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
6	WP489442 Whirlpool Refrigerator Screw
7	Heat Shield
8	Spacer
9	WP2174706 Whirlpool Refrigerator Pin Hitch
10	WP488163 Whirlpool Refrigerator Screw
11	Tube, Discharge
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	4387913 Whirlpool Refrigerator Primary Overload Relay
13	WP2149959 Whirlpool Refrigerator Overload
14	876811 Whirlpool Grommet
14	WP2163786 Whirlpool Refrigerator Grommet
15	Relay (See Overload)
16	W10812038 Whirlpool Refrigerator Clip
17	4388239 Whirlpool Refrigerator Primary Cabinet Roller
18	W11594405 Whirlpool Axle
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263919 Whirlpool Refrigerator Evaporator
21	9791833 Whirlpool Refrigerator Clip
22	Tube, Process
24	285002 Whirlpool Nut
25	4386951 Whirlpool Refrigerator Clip
26	Bracket, Condenser
28	W10823815 Whirlpool Refrigerator Compressor
28	876765 Whirlpool Primary Mounting Kit Refrigerator
28	Installation Kit
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
31	Capacitor
32	Clip, Compressor
33	WP2172890 Whirlpool Refrigerator Wire
34	Wire Assy. Unit
35	Tray, Evaporator
36	VALVE, ACCESS (5/8“)
36	W11693756 Whirlpool Screw Assembly
36	978026 Whirlpool Refrigerator Primary Valve
36	978027 Whirlpool Refrigerator Primary Valve
36	876764 Whirlpool Refrigerator Primary Valve
36	978030 Whirlpool Refrigerator Valve
36	WP978025 Whirlpool Refrigerator Valve
36	VALVE, ACCESS (1/2“)
36	Start Kit
