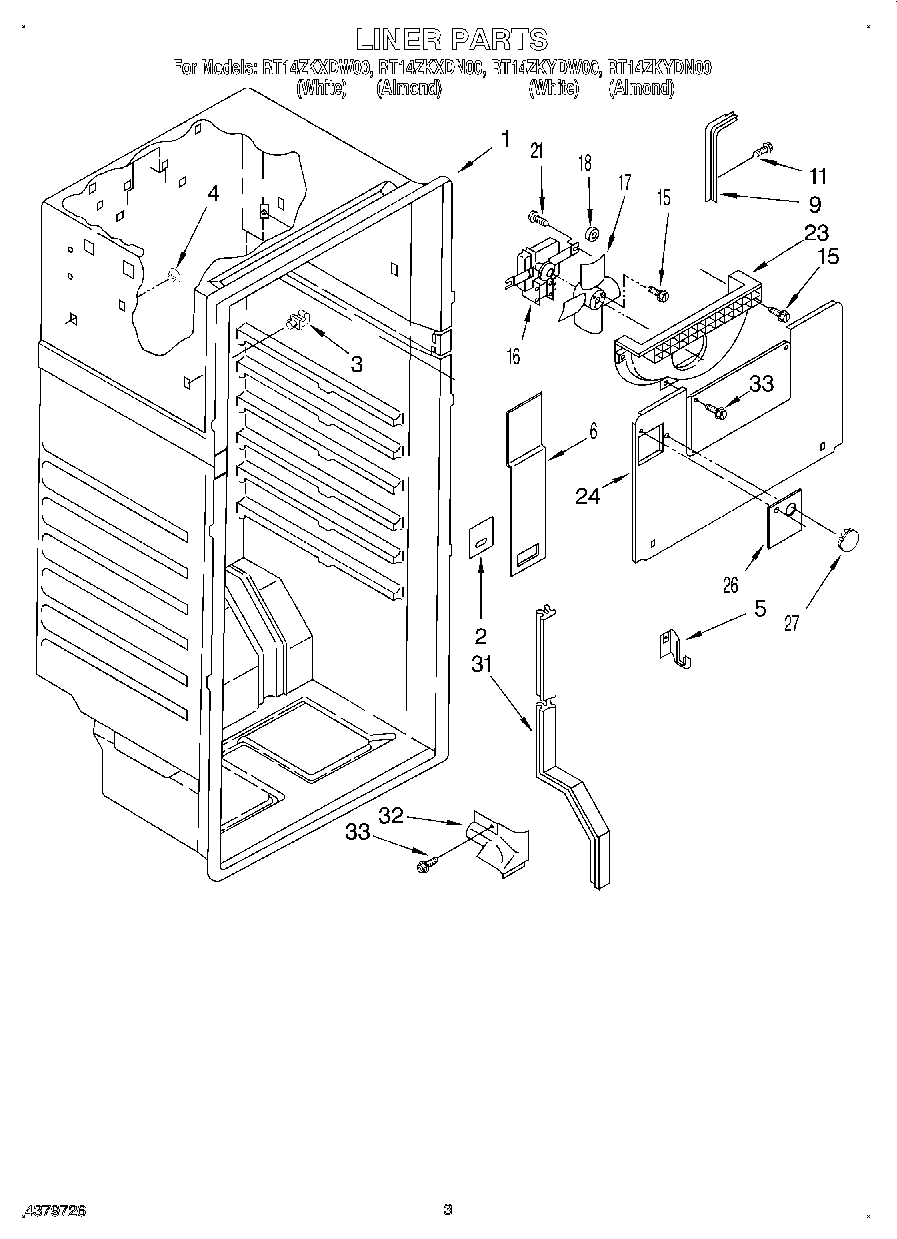

| 1 | Liner (Not A Serviceable Part) |
| 2 | Shield, Wiring |
| 3 | Stud Hook (2) |
| 4 | WP941839 Whirlpool Refrigerator Button Plug |
| 5 | Evaporator Support (2) |
| 6 | Cover, Air Duct |
| 9 | Air Deflector Side |
| 11 | Screw, 8-32 |
| 15 | WP489478 Whirlpool Refrigerator Screw |
| 16 | 482731 Whirlpool Refrigerator Evaporator Fan Motor Kit |
| 17 | WP1100938 Whirlpool Refrigerator Fan Blade |
| 18 | Grommet |
| 21 | Screw (2) |
| 23 | Scroll, Fan |
| 24 | Evaporator Cover |
| 26 | WP2217784 Whirlpool Refrigerator Cover |
| 27 | Hole Plug |
| 31 | Cover Tube, Rear |
| 32 | Cover Tube, Bottom |
| 33 | WP488729 Whirlpool Refrigerator Door Screw |
