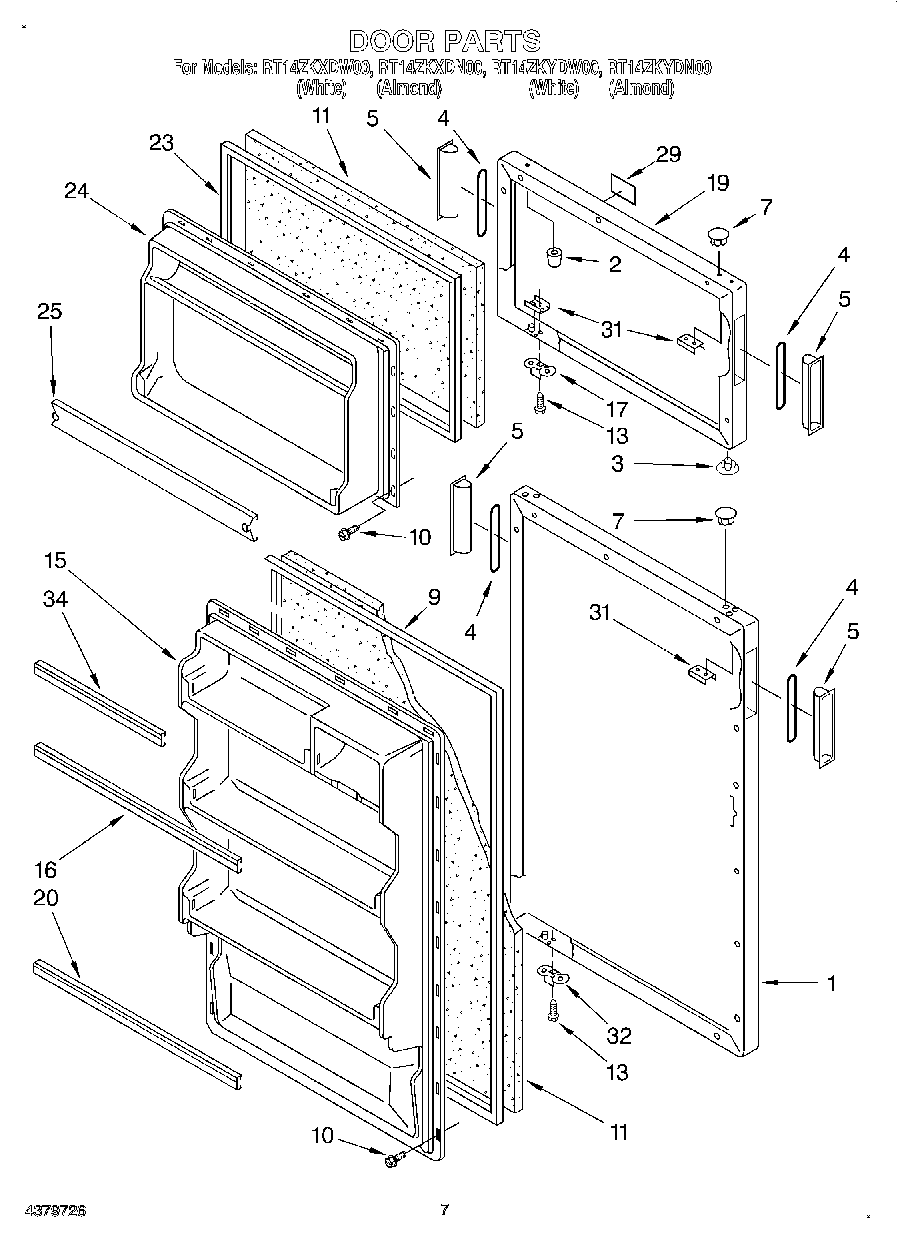

RT14ZKYDW00 05 – DOOR

RT14ZKYDW00 05 – DOOR

Written by

in

RT14ZKYDW00 05 – DOOR

Products

PositionProduct
1Refrigerator Door Panel (Also Order Item 11) (Almond)
1Refrigerator Door Panel (Also Order Item 11) (White)
2Cap, Hinge Sleeve (2)
3Hole Plug (2)
3Hole Plug (2) (Almond)
4Gasket, Handle (Not Serviced)
5Handle (Not Serviced)
7Hole Plug (Almond)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
92188445A Whirlpool Refrigerator Door Gasket Seal
10WP489069 Whirlpool Compactor Screw
11WPL 876029
13WP488921 Whirlpool Refrigerator Screw
15Interior Door Panel (Refrigerator)
17Bracket, Door Stop
19Freezer Door Panel (Also Order Item 11) (Almond)
19Freezer Door Panel (Also Order Item 11) (White)
20Trim, Door Shelf
23GASKET-DOR
24Interior Door Panel (Freezer)
29Nameplate
31W10833053 Whirlpool Refrigerator Plate
32Bracket, Door Stop
34TRIM-DOOR
