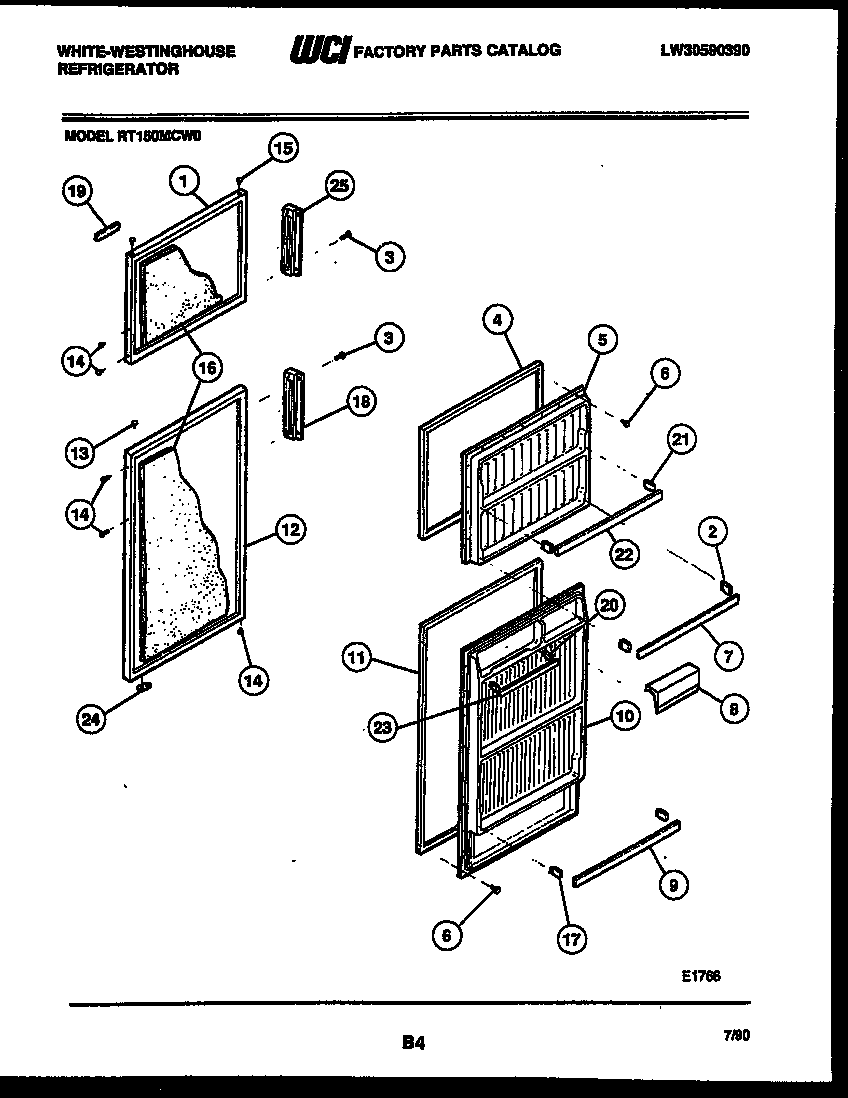

RT150MCH0 02 – DOOR PARTSadmin2025-04-26T08:47:57+00:00RT150MCH0 02 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | WCI 3916563 |
| 1 | WCI 3916566 |
| 1 | WCI 3916565 |
| 1 | FREEZER DOOR-ALMD |
| 1 | WCI 3916564 |
| 2 | SUPPORT-DOOR RACK, EXTENDS 1.06``, RH |
| 2A | SUPPORT-DOOR RACK, EXTENDS 1.06``, LH |
| 4 | GASKET-FRZR DOOR, WHITE, MAGNETIC |
| 5 | PANEL-INNER DOOR, FRZR |
| 6 | 218843801 Frigidaire Refrigerator Screw |
| 7 | RACK-DOOR |
| 8 | DOOR, DAIRY |
| 9 | RACK-DOOR |
| 10 | PANEL-INNER DOOR, REFR |
| 11 | 218730603 Frigidaire Door Gasket |
| 12 | WCI 3916558 |
| 12 | REFRIGERATOR DOOR-ALMD |
| 12 | WCI 3916559 |
| 12 | WCI 3916560 |
| 12 | WCI 3916561 |
| 13 | BEARING-HINGE |
| 14 | BUTTON-WHEAT |
| 14 | PLUG-BUTTON, ALMOND, HANDLE/DR STOP |
| 14 | BUTTON PLUG-COFFEE |
| 14 | BUTTON-AVOCADO |
| 14 | 240494001 Frigidaire Refrigerator Plug Button |
| 15 | PLUG-BUTTON, ALMOND, HINGE BRG HOLE |
| 15 | BUTTON-WHEAT |
| 15 | BUTTON PLUG-COFFEE |
| 15 | PLUG - AVOCADO (2) |
| 15 | PLUG-BUTTON, WHITE, HINGE BRG HOLE |
| 16 | INSULATION-BULK (NON-ILLUSTRATED) |
| 17 | WCI 3206151 |
| 17A | WCI 3206150 |
| 18 | HANDLE-DOOR |
| 19 | WCI 5303209936 |
| 20 | SUPPORT-DOOR RACK, EXTENDS .56``, RH |
| 20A | SUPPORT-DOOR RACK, EXTENDS .56``, LH |
| 21 | 3206165 Frigidaire Bar Endcap Right Hand |
| 21A | 3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support |
| 22 | RACK-DOOR, NARROW |
| 23 | RACK-DOOR, SHORT |
| 24A | WCI 5308011745 |
| 24 | WCI 5308000255 |
| 25 | HANDLE-DOOR |
