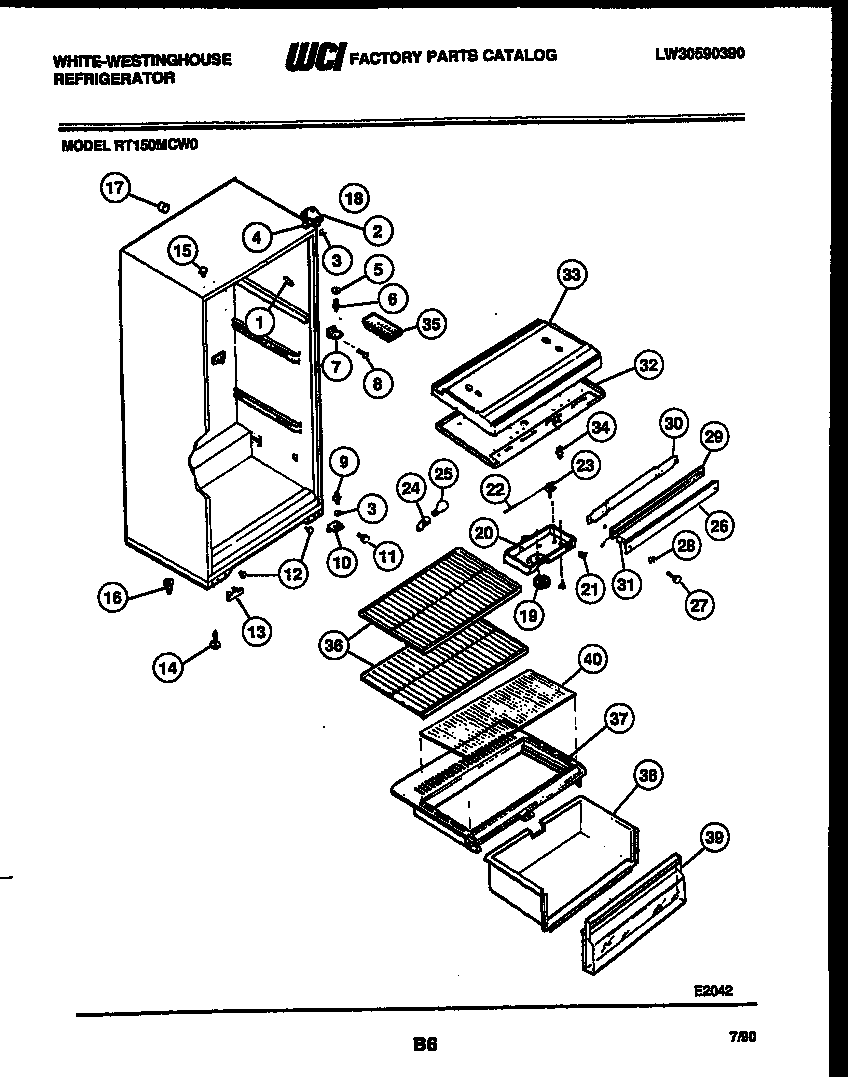

RT150MCV0 03 – CABINET PARTSadmin2025-04-26T08:47:39+00:00RT150MCV0 03 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | TRIM-CABINET CORNER, WHITE |
| 1 | CORNER |
| 1 | WCI 5303202338 |
| 1 | WCI 5303202339 |
| 1 | TRIM-CABINET CORNER, ALMOND |
| 2 | WCI 3206100 |
| 3 | WASHER, .34 X .62 X .05, NYLON |
| 4 | SHIM - UPPER HINGE |
| 5 | WCI 5308000186 |
| 6 | WCI 5308000184 |
| 7 | BRACKET-CTR HINGE |
| 9 | 5303001321 Frigidaire Refrigerator Lower Hinge Pin |
| 10 | WCI 3206136 |
| 11 | 241710601 Frigidaire Refrigerator Screw |
| 12 | PLUG-BUTTON |
| 13 | WCI 3206135 |
| 14 | SCREW-LEVELING, (2) |
| 15 | BUTTON-HINGE-WHEAT |
| 15 | PLUG-BUTTON, WHITE |
| 15 | PLUG, COFFEE |
| 15 | PLUG-BUTTON, ALMOND, UPR HINGE HOLES |
| 15 | BUTTON-HINGE-AVOCADO |
| 16 | WCI 5303211514 |
| 17 | TUBE-RUBBER |
| 18 | WCI 3206101 |
| 18 | COVER-UPPER HINGE, WHEAT |
| 18A | TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED) |
| 18 | COVER-TOP HINGE-COFFEE |
| 18 | COVER - TOP HINGE - AVOCADO |
| 18 | WCI 3206105 |
| 19 | WCI 5303201777 |
| 20 | WCI 5303211508 |
| 20A | 5304455650 Frigidaire Refrigerator Screw |
| 21 | WCI 3206129 |
| 22 | TUBE |
| 23 | WCI 5303211506 |
| 23A | WCI 5303001260 |
| 24 | 218906802 Frigidaire Light Lamp Socket |
| 25 | 316538904 Frigidaire Oven Lamp Light |
| 26 | WCI 3206122 |
| 26 | WCI 3206124 |
| 26 | WCI 3206125 |
| 26 | WCI 3206121 |
| 26 | WCI 3206123 |
| 27 | SCREW - MULLION (2) |
| 28 | WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED) |
| 29 | WCI 3206120 |
| 30 | WCI 5303207247 |
| 31 | WCI 5303206753 |
| 32 | WCI 5303211503 |
| 32A | WCI 5303001380 |
| 33A | WCI 5303211512 |
| 33 | WCI 5303211502 |
| 34 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 35 | 215667501 Frigidaire Refrigerator Ice Tray Primary |
| 36 | WCI 3206099 |
| 37 | COVER-CRISPER PAN, WITH BEAM, LESS INSERT |
| 38 | 5303285386 Frigidaire Refrigerator Crisper Pan |
| 39 | WCI 3206106 |
| 40 | WCI 3206111 |
