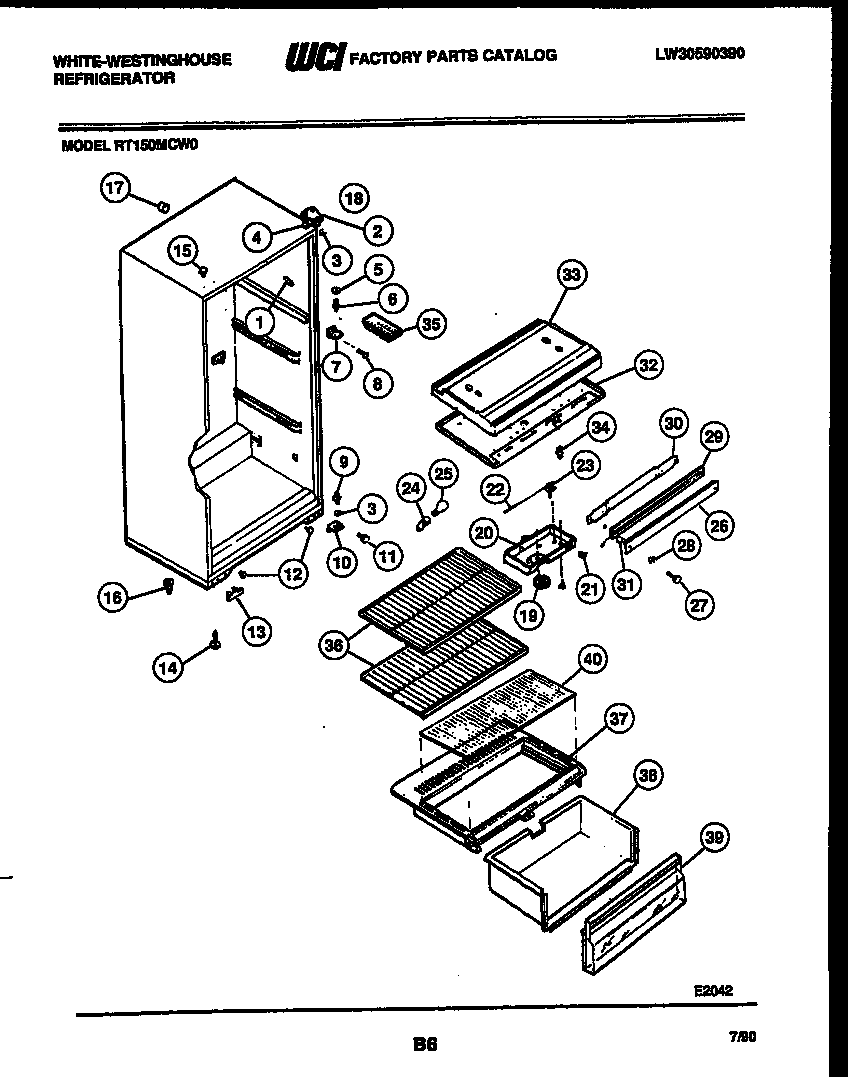

RT150MCW0 03 – CABINET PARTS

Products

PositionProduct
1TRIM-CABINET CORNER, WHITE
1CORNER
1WCI 5303202338
1WCI 5303202339
1TRIM-CABINET CORNER, ALMOND
2WCI 3206100
3WASHER, .34 X .62 X .05, NYLON
4SHIM – UPPER HINGE
5WCI 5308000186
6WCI 5308000184
7BRACKET-CTR HINGE
95303001321 Frigidaire Refrigerator Lower Hinge Pin
10WCI 3206136
11241710601 Frigidaire Refrigerator Screw
12PLUG-BUTTON
13WCI 3206135
14SCREW-LEVELING, (2)
15BUTTON-HINGE-WHEAT
15PLUG-BUTTON, WHITE
15PLUG, COFFEE
15PLUG-BUTTON, ALMOND, UPR HINGE HOLES
15BUTTON-HINGE-AVOCADO
16WCI 5303211514
17TUBE-RUBBER
18WCI 3206101
18COVER-UPPER HINGE, WHEAT
18ATAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
18COVER-TOP HINGE-COFFEE
18COVER – TOP HINGE – AVOCADO
18WCI 3206105
19WCI 5303201777
20WCI 5303211508
20A5304455650 Frigidaire Refrigerator Screw
21WCI 3206129
22TUBE
23WCI 5303211506
23AWCI 5303001260
24218906802 Frigidaire Light Lamp Socket
25316538904 Frigidaire Oven Lamp Light
26WCI 3206122
26WCI 3206124
26WCI 3206125
26WCI 3206121
26WCI 3206123
27SCREW – MULLION (2)
28WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
29WCI 3206120
30WCI 5303207247
31WCI 5303206753
32WCI 5303211503
32AWCI 5303001380
33AWCI 5303211512
33WCI 5303211502
345309918806 Frigidaire Refrigerator Light Switch Door
35215667501 Frigidaire Refrigerator Ice Tray Primary
36WCI 3206099
37COVER-CRISPER PAN, WITH BEAM, LESS INSERT
385303285386 Frigidaire Refrigerator Crisper Pan
39WCI 3206106
40WCI 3206111
