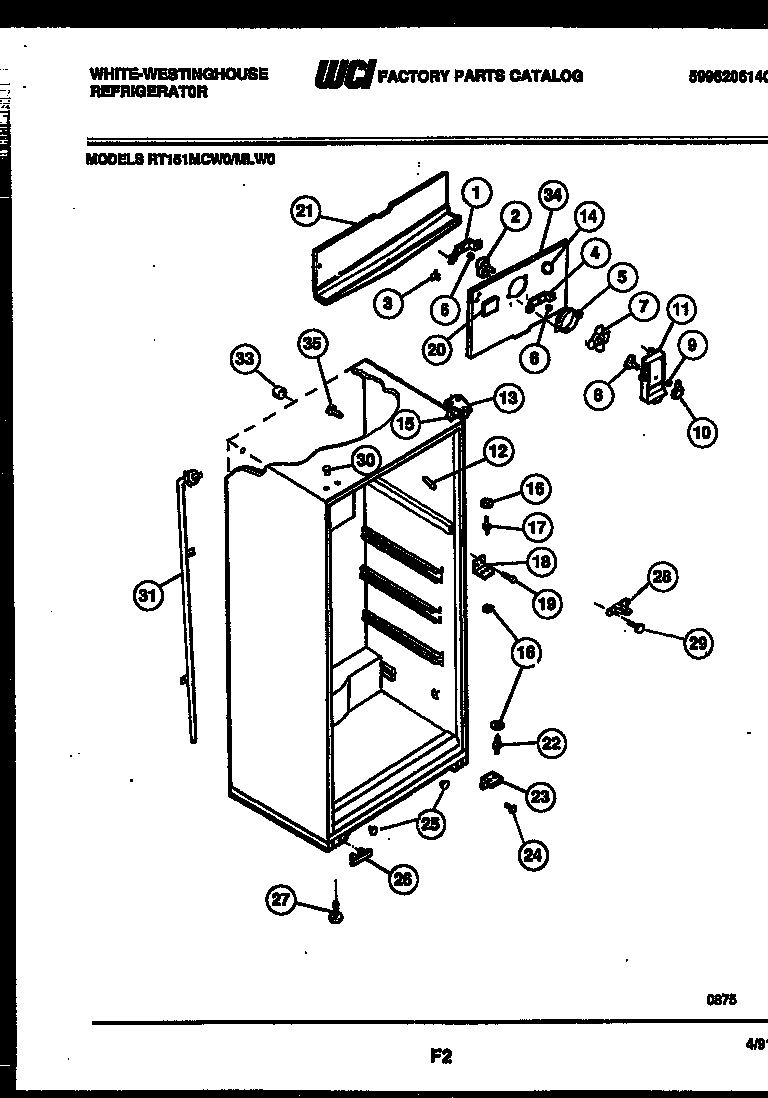

RT151MCD0 03 – CABINET PARTSadmin2025-04-26T08:47:35+00:00RT151MCD0 03 – CABINET PARTS
Products
| Position | Product |
|---|
| *43841 | PLUG, BUTTON, CABINET LINER (NI) |
| *43842 | TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED) |
| 1 | BRACKET-MOTOR MTG, REAR |
| 2 | 5300158289 Frigidaire Evaporator Fan Motor |
| 3 | WCI 5308000107 |
| 3A | 5304455651 Frigidaire Refrigerator Screw |
| 4 | WCI 5303205118 |
| 5 | RING-FAN ORIFICE |
| 6 | G187559 Frigidaire Refrigerator Bushing |
| 7 | 5308000010 Frigidaire Refrigerator Evaporator Fan Blade |
| 8 | WCI 3206110 |
| 9 | Nut,push-on |
| 10 | WCI 5308000081 |
| 11 | FAN COVER |
| 12 | TRIM-CABINET CORNER, ALMOND |
| 13 | WCI 3206100 |
| 14 | 5303208309 Frigidaire Refrigerator Plug Hole |
| 15 | SHIM - UPPER HINGE |
| 16 | WCI 5308000186 |
| 17 | WCI 5308000184 |
| 18 | BRACKET-CTR HINGE |
| 19 | SCREW - MULLION (2) |
| 20 | BUTTON - DECORATIVE PLUG |
| 21 | WCI 3206146 |
| 22 | 5303001321 Frigidaire Refrigerator Lower Hinge Pin |
| 23 | WCI 3206136 |
| 24 | 241710601 Frigidaire Refrigerator Screw |
| 25 | PLUG-BUTTON |
| 26 | WCI 3206135 |
| 27 | SCREW-LEVELING, (2) |
| 28 | WCI 5308000056 |
| 29 | WCI 5303001361 |
| 30 | PLUG-BUTTON, ALMOND, UPR HINGE HOLES |
| 31 | WCI 5303269702 |
| 33 | TUBE-RUBBER |
| 34B | NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED) |
| 34 | WCI 3206119 |
| 34A | 5304455650 Frigidaire Refrigerator Screw |
| 35 | SUPPORT-COIL COVER |
