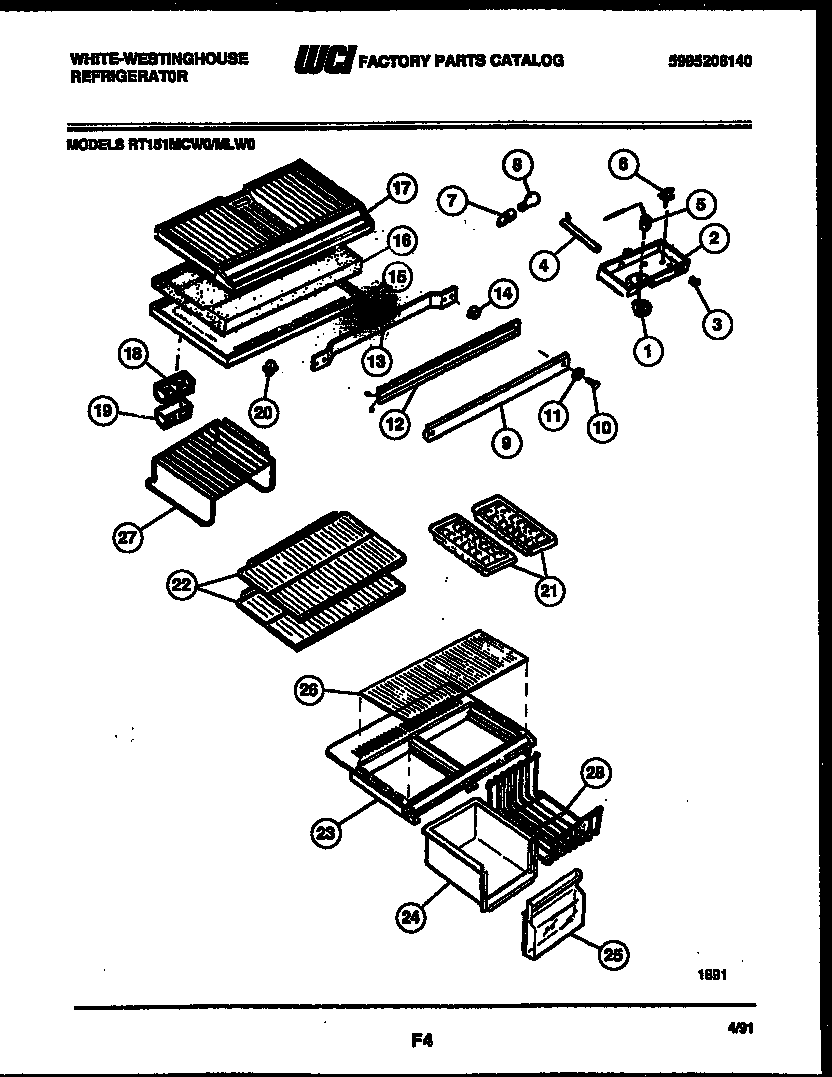

RT151MCD0 04 – SHELVES AND SUPPORTS

RT151MCD0 04 – SHELVES AND SUPPORTS

Written by

in

RT151MCD0 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303209251
2CONTROL BOX
2A5304455650 Frigidaire Refrigerator Screw
3WCI 5303207249
4WCI 3018891
5AWCI 5303001260
5WCI 5303018894
6215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
6A5304455649 Frigidaire Refrigerator Screw
7218906802 Frigidaire Light Lamp Socket
8316538904 Frigidaire Oven Lamp Light
9WCI 3206125
10SCREW – MULLION (2)
11WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
12WCI 3206120
13WCI 5308003604
14SPACER-MULLION MTG, STEEL
15AWCI 5303001380
15WCI 3206128
16WCI 3206131
17WCI 3206132
17A3205266 Frigidaire Refrigerator Edge Protector
18DEFLECTRO, AIR, W/SEAL
18AEXTENSION, AIR DEFLECTOR, WITH INSULATION
19WCI 5303001448
205309918806 Frigidaire Refrigerator Light Switch Door
21215667501 Frigidaire Refrigerator Ice Tray Primary
22WCI 5303208220
23COVER-CRISPER PAN, WITH BEAM, LESS INSERT
24PAN-CRISPER
25WCI 5303208183
26WCI 3206111
275303282284 Frigidaire Wire Shelf
28WCI 5303208189
