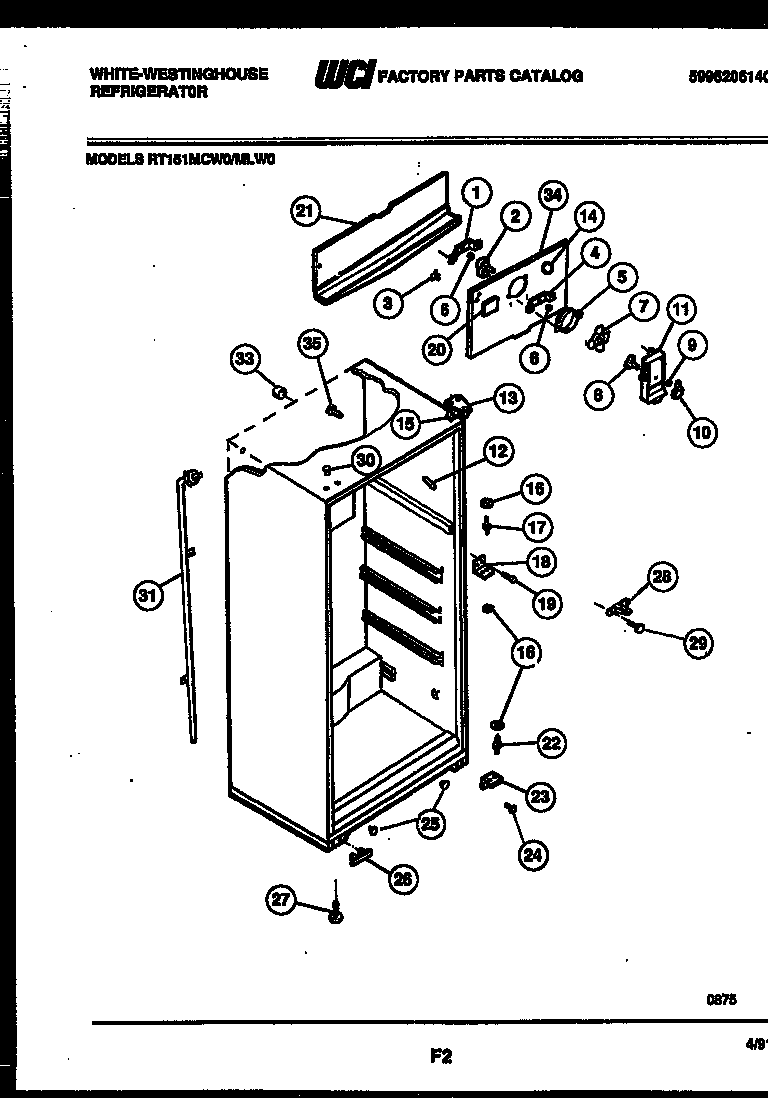

RT151MCW0 03 – CABINET PARTS

RT151MCW0 03 – CABINET PARTS

Written by

in

RT151MCW0 03 – CABINET PARTS

Products

PositionProduct
*43841PLUG, BUTTON, CABINET LINER (NI)
*43842TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
1BRACKET-MOTOR MTG, REAR
25300158289 Frigidaire Evaporator Fan Motor
3A5304455651 Frigidaire Refrigerator Screw
3WCI 5308000107
4WCI 5303205118
5RING-FAN ORIFICE
6G187559 Frigidaire Refrigerator Bushing
75308000010 Frigidaire Refrigerator Evaporator Fan Blade
8WCI 3206110
9Nut,push-on
10WCI 5308000081
11FAN COVER
12TRIM-CABINET CORNER, WHITE
13WCI 3206100
145303208309 Frigidaire Refrigerator Plug Hole
15SHIM – UPPER HINGE
16WCI 5308000186
17WCI 5308000184
18BRACKET-CTR HINGE
19SCREW – MULLION (2)
20BUTTON – DECORATIVE PLUG
21WCI 3206146
225303001321 Frigidaire Refrigerator Lower Hinge Pin
23WCI 3206136
24241710601 Frigidaire Refrigerator Screw
25PLUG-BUTTON
26WCI 3206135
27SCREW-LEVELING, (2)
28WCI 5308000056
29WCI 5303001361
30PLUG-BUTTON, WHITE
31WCI 5303269702
33TUBE-RUBBER
34A5304455650 Frigidaire Refrigerator Screw
34WCI 3206119
34BNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
35SUPPORT-COIL COVER
