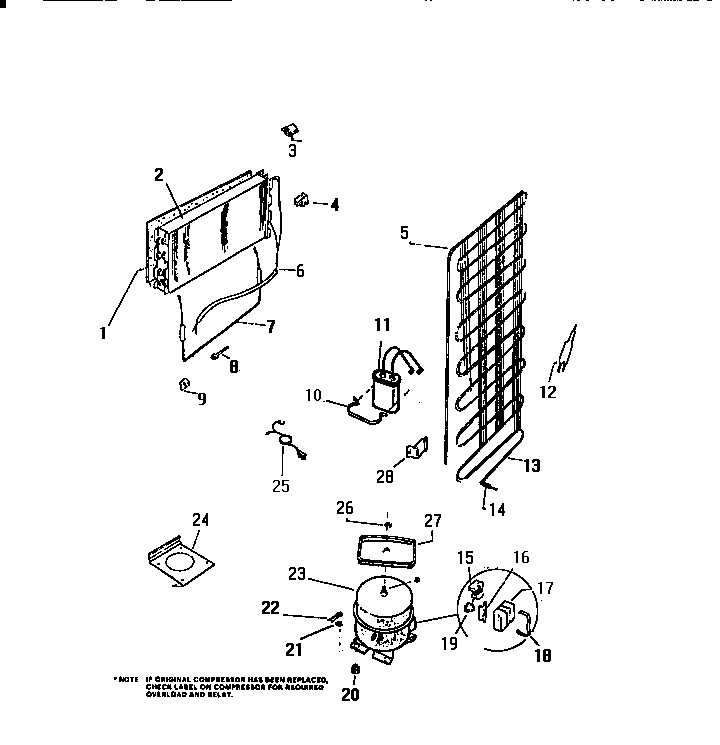

RT153HCF2 04 – COOLING SYSTEM

Products

Position	Product
*05776	WCI G176210
*05780	HEAT EXCHANGER REPAIR KIT
*05778	SOUND DEADENER
*05777	5303307896 Frigidaire Refrigerator Thermal Sealant Mastic
*05763	WCI G185266
*05781	WCI G125963-68
*05779	WCI G183584
*05762	HARNESS-COMPRESSOR
1	INSULATOR
2	WCI G164563
3	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
4	BLOCK, EVAPORATOR, RH
4A	PLUG, EVAPORATOR INSULATION BLOCK, R H
5	WCI G178225
6	WCI G163389
7	WCI G162432-02
8	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
9	BLOCK, EVAPORATOR, LH
10	STRAP-CAPACITOR
11	WCI G188885-01
12A	WCI R900125
12	DRIER-REGULAR
13	WCI C714203
14	SLEEVE-CONNECTOR
15	WCI G182225-18
16	CLIP, OVERLOAD
17	WCI G185792
18	STRAP-COVER
19	WCI G188877
20	218513300 Frigidaire Refrigerator Compressor Mount Grommet
21	WASHER, COMPRESSOR MOUNTING (4)
22	CLIP, COMPRESSOR MOUNTING (4)
23	COMPRESSOR
24	WCI G162822
25	CORD, SERVICE
26	NUT, LOCK
27	DEFROST PAN & NUT
28	WCI C164837
