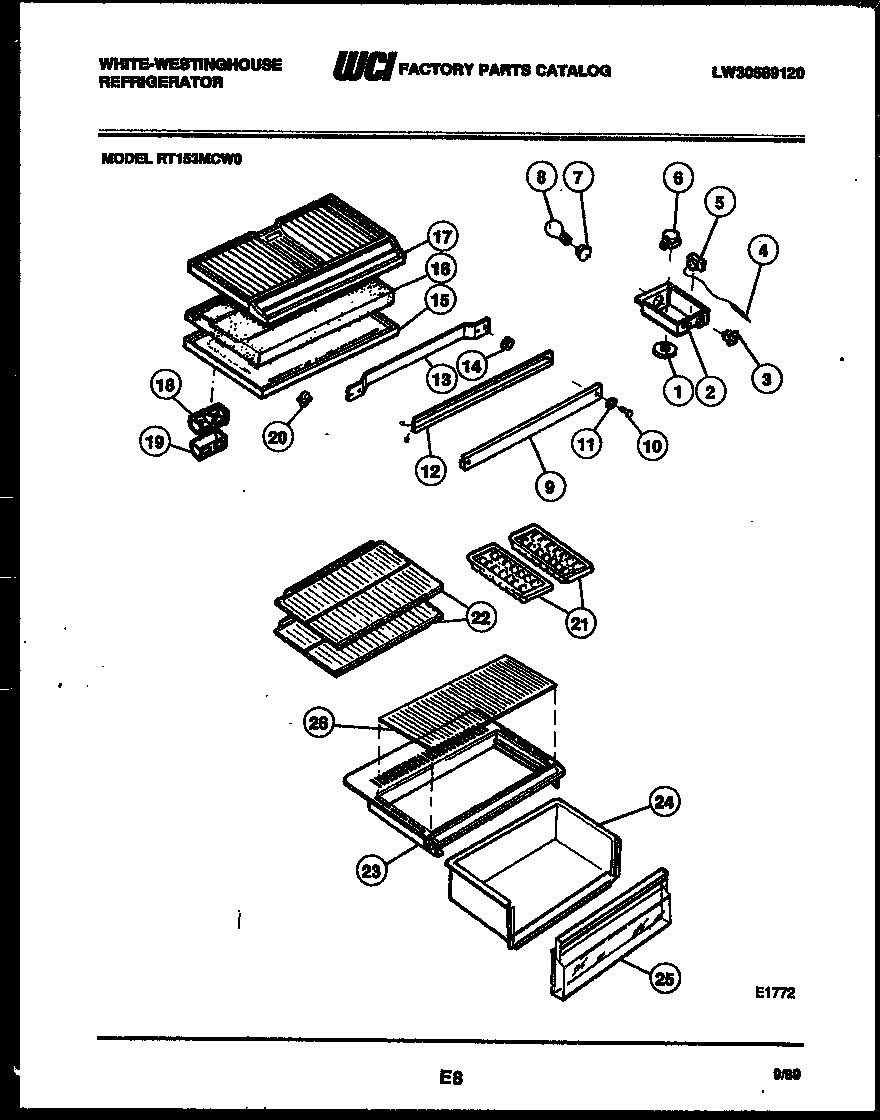

RT153MCV0 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*217903205266 Frigidaire Refrigerator Edge Protector
1KNOB-TEMP CONTROL
2WCI 3206130
2A5304455650 Frigidaire Refrigerator Screw
3WCI 3206129
4WCI 3018891
5AWCI G107080
5CONTROL-TEMPERATURE
6215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
6A5304455649 Frigidaire Refrigerator Screw
7218906802 Frigidaire Light Lamp Socket
8316538904 Frigidaire Oven Lamp Light
9WCI 3206122
10SCREW – MULLION (2)
11WASHER (2)
12WCI 3206120
13CLAMP, MULLION MOUNTING
14SPACER (NON-ILLUSTRATED)
15ASCREW (5)
15WCI 3206128
16WCI 3206131
16AHARNESS-WIRING, CONTROL/DIVIDER (NON-ILLUSTRATED)
17WCI 3206132
18WCI 3204206
19WCI 3001546
205309918806 Frigidaire Refrigerator Light Switch Door
21215667501 Frigidaire Refrigerator Ice Tray Primary
22WCI 3206099
23COVER-CRISPER PAN, WITH BEAM, LESS INSERT
245303285386 Frigidaire Refrigerator Crisper Pan
25WCI 3206106
26WCI 3206111
