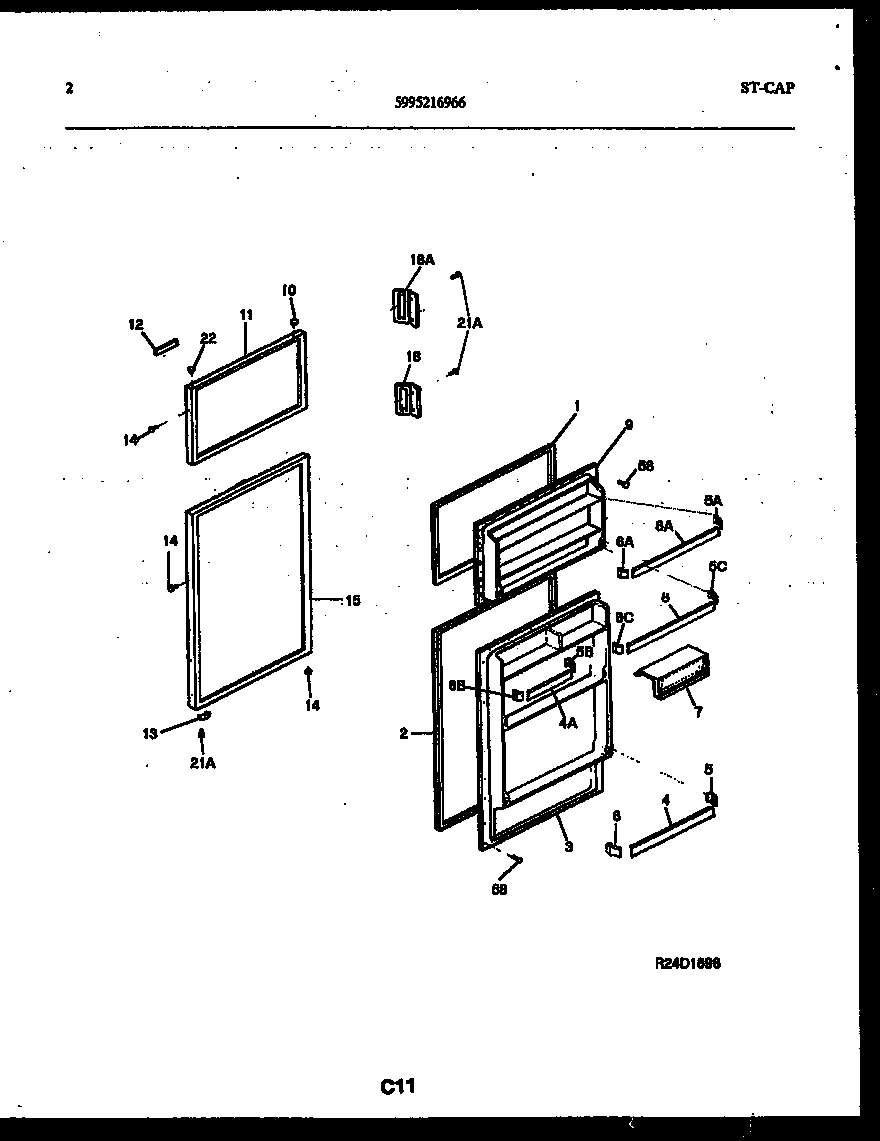

RT153MLW1 02 – DOOR PARTS

RT153MLW1 02 – DOOR PARTS

Written by

in

RT153MLW1 02 – DOOR PARTS

Products

PositionProduct
*54202INSULATION-BULK (NON-ILLUSTRATED)
1GASKET-FRZR DOOR, WHITE, MAGNETIC
2218730603 Frigidaire Door Gasket
3PANEL-INNER DOOR, REFR
4ARACK-DOOR, SHORT
4RACK-DOOR
5BSUPPORT-DOOR RACK, EXTENDS .56“, RH
5CSUPPORT-DOOR RACK, EXTENDS 1.06“, RH
5WCI 3206150
5A3206165 Frigidaire Bar Endcap Right Hand
6A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
6WCI 3206151
6CSUPPORT-DOOR RACK, EXTENDS 1.06“, LH
6BSUPPORT-DOOR RACK, EXTENDS .56“, LH
7DOOR, DAIRY
8ARACK-DOOR, NARROW
8RACK-DOOR
9PANEL-INNER DOOR, FRZR
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 3916563
12WCI 3206159
13WCI 5308000255
14240494001 Frigidaire Refrigerator Plug Button
15WCI 3916558
18HANDLE-DOOR
18AHANDLE-DOOR
21AWCI 5308011745
22BEARING-HINGE
585304455651 Frigidaire Refrigerator Screw
