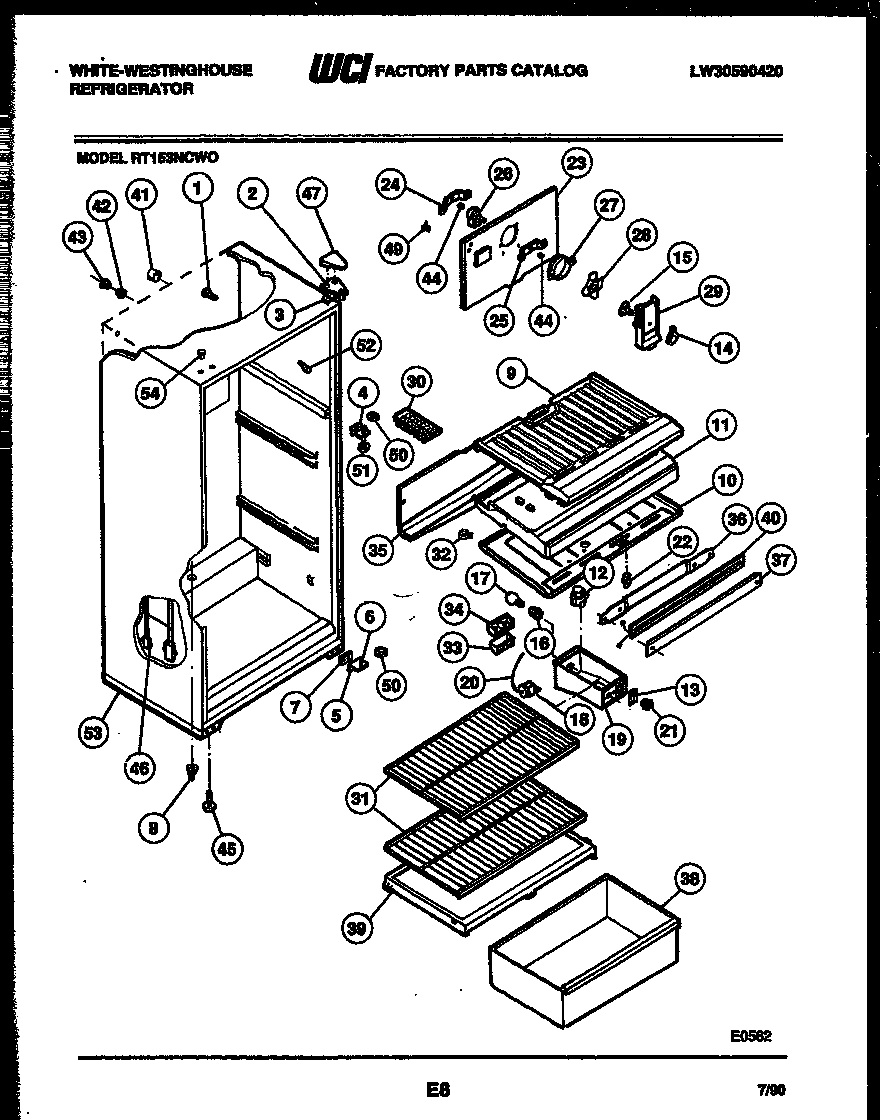

RT153NCD0 03 – CABINET PARTS

Products

PositionProduct
1SUPPORT-COIL COVER
2BRACKET-UPPER HINGE
3SHIM – UPPER HINGE
4BRACKET-CTR HINGE
4BWCI 5308000184
4AWCI 5308012258
5HINGE – LOWER DOOR
5A241710601 Frigidaire Refrigerator Screw
65303001321 Frigidaire Refrigerator Lower Hinge Pin
7SHIM-LOWER HINGE
8TUBE – DRAIN
9WCI 5308000748
10TOP PANEL-REFR, W/ SNAP BUSHING
10AWCI 5303001380
11WCI 5308000759
12215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
12A5304455649 Frigidaire Refrigerator Screw
13WCI G00180105
14WCI 5316266315
15DAMPER-FAN COVER
15ANut,push-on
16SOCKET-LIGHT/LAMP
17316538904 Frigidaire Oven Lamp Light
18WCI 5308015762
18AWCI 5303001260
19BOX-CONTROL
19ASWITCH-ENERGY SAVER, SLIDE TYPE
20TUBE
21WCI 5308010011
225309918806 Frigidaire Refrigerator Light Switch Door
23A5303208309 Frigidaire Refrigerator Plug Hole
23WCI 3001358
24WCI 5303001227
25WCI 5303001226
265300158289 Frigidaire Evaporator Fan Motor
27ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
27RING-FAN ORIFICE
285308000010 Frigidaire Refrigerator Evaporator Fan Blade
29A5304455650 Frigidaire Refrigerator Screw
29WCI 5349007602
29BWCI G000187640
30215667501 Frigidaire Refrigerator Ice Tray Primary
31WCI 5317217303
325308000133 Frigidaire Refrigerator Clamp
33COVER – AIR DEFLECTOR
34DEFLECTOR-AIR
35WCI 5308003638
36WCI 5308003604
37AWASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
37WCI 5303916134
37BWCI 53001370
38PAN – CRISPER
39COVER-CRISPER PAN
40WCI 5308017408
41TUBE-RUBBER
42WCI 5303001287
43WCI 5308001286
44G187559 Frigidaire Refrigerator Bushing
45SCREW-LEVELING (4)
45AWCI 5308003584
46HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
47COVER-UPPER HINGE, ALMOND
49DPLUG, BUTTON, CABINET LINER (NI)
49A5304455651 Frigidaire Refrigerator Screw
49CPLUG-DECORATIVE, ICE MAKER HOLE
49BCOVER-HOLE, LOWER HINGE
49WCI 5308000107
50WASHER, .34 X .62 X .05, NYLON
51WCI 5308000186
51ATAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
52TRIM-CABINET CORNER, ALMOND
53WCI 5303006086
54PLUG-BUTTON, ALMOND, UPR HINGE HOLES
