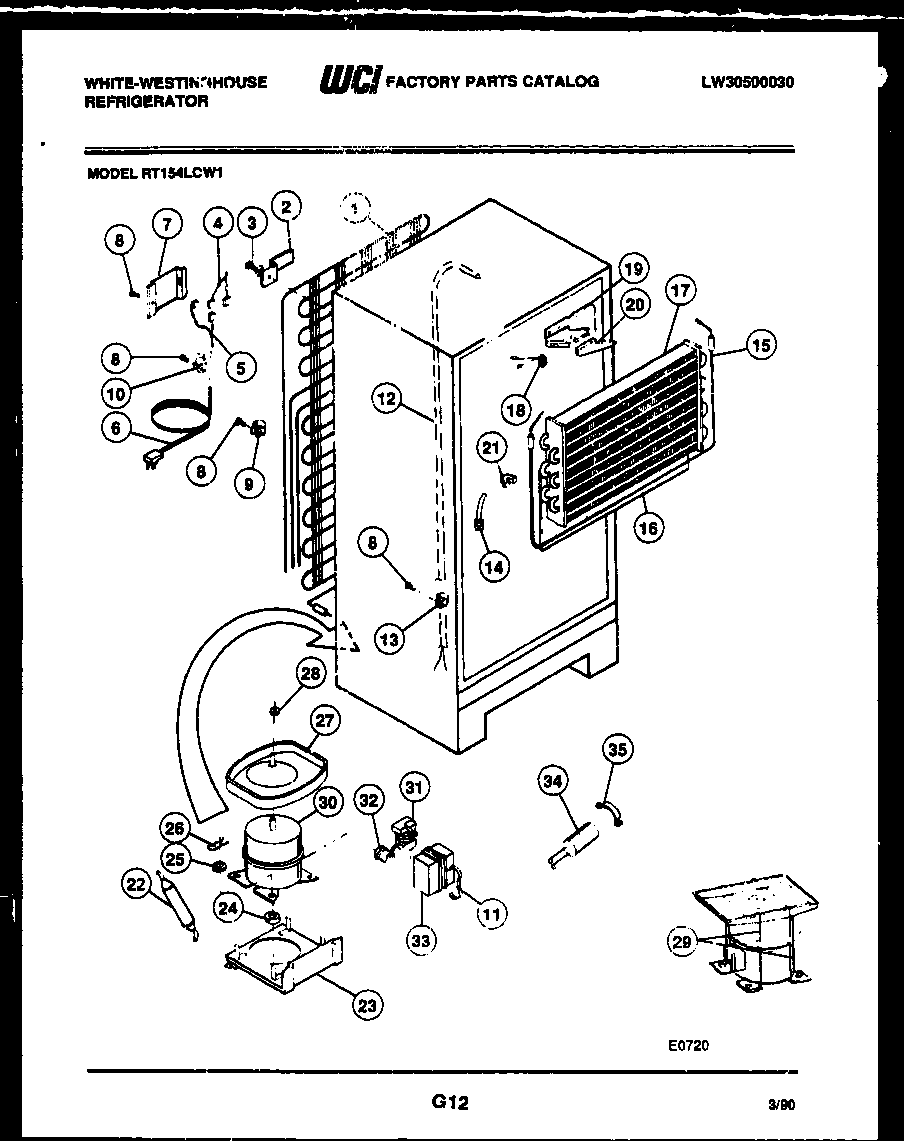

RT154LCV1 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1WCI 5303001341
2BRACKET-MTG (4)
3AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
35308000039 Frigidaire Refrigerator Screw
4HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
5WIRING HARNESS, COMPRESSOR,
6CORD-ELECTRIC POWER
7WCI 5303001197
85304455651 Frigidaire Refrigerator Screw
105303001199 Frigidaire Refrigerator Wiring Harness Clamp
115303006412 Frigidaire Refrigerator Cover Mounting Strap
12HEAT EXCHANGER, SUCTION LINE
135308000133 Frigidaire Refrigerator Clamp
145308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
15WCI 5303001362
16INSULATOR-EVAP, PLASTIC
17EVAPORATOR
185303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
19INSULATION BLOCK, RH
20INSULATION PLUG, RH
21INSULATION BLOCK, LH
225303305677 Frigidaire Replacement Filter Dryer Filters
22B218843801 Frigidaire Refrigerator Screw
22AWCI 3201679
23WCI 5308009596
24218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WASHER-COMPR MTG
26CLIP – COMPRESSOR MTG
27A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
27PAN-DEFROST DRAIN, ORIG/SVCE COMPR
28Nut,lock `1/4-20 ,drain pan mtg
29PAN RETAINER KIT, SERVICE
30COMPRESSOR W/ ELEC
31RELAY-TL
32AWCI 3202891
32WCI 5303001713
33AHOT TUBE REPAIR KIT-SERVICE
34WCI 5303018427
35STRAP CAPACITOR
